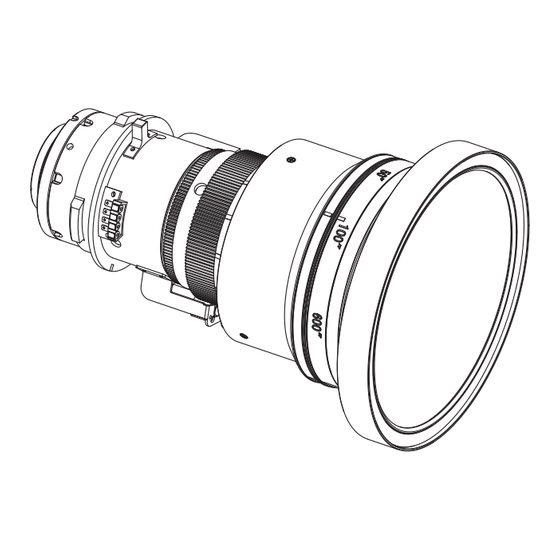

Panasonic ET-DLE085C Operating Instructions Manual

Zoom lens
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Operating Instructions
Zoom Lens
ET-DLE085C
Model No.
Thank you for purchasing this Panasonic product.
■ Please read these operating instructions and the projector operating instructions carefully, and then use
this product correctly.
■ Before using this product, be sure to read "Read this fi rst!" (
Page 2).
■ Please save this manual for future use.
TQDJ19190-1

Advertisement

loading

Related Manuals for Panasonic ET-DLE085C

Summary of Contents for Panasonic ET-DLE085C

  • Page 1 Zoom Lens ET-DLE085C Model No. Thank you for purchasing this Panasonic product. ■ Please read these operating instructions and the projector operating instructions carefully, and then use this product correctly. ■ Before using this product, be sure to read “Read this fi rst!” ( ...

  • Page 2: Read This First

    Read this fi rst! Always follow these precautions WARNING: Before replacing the zoom lens, be sure to turn the power off and disconnect the power plug from the wall outlet.  Otherwise, an electrical shock may result. CAUTION: Supplied accessories and consumables: Do not open the desiccant bag.

  • Page 3: Attaching The Lens / Detaching The Lens

    Attaching the Lens / Detaching the Lens Before replacing the projection lens Return the projection lens to the home position before replacing or removing it. For details on how to return the lens to the home position, refer to the operating instructions of the projector. Attention ...

  • Page 4: Focus Adjustment Function

    Periphery focus adjustment ring Note  The projected image sizes and scale shown on the periphery focus adjustment ring are an approximate guide.  For details on the projection distance, see the projector specifi cations (http://pro.panasonic.cn/pj/). 4-ENGLISH...
  • Page 5 Specifi cations the Lens Lens Type Zoom lens F value 1.85 - 2.20 Focal Length (f) 11.8 mm (15/32") - 14.6 mm (9/16") Width 140 mm (5-1/2") Dimensions Height 140 mm (5-1/2") Depth 206 mm (8-1/8") Net Weight 1.3 kｇ (2.87 lbs.) Note ...
  • Page 6 日本福冈县福冈市博多区美野岛四丁目1番62号 https://panasonic.cn/ 2022 SS0713AM1042 -PS © 松下互联株式会社 2022版权所有 Printed in Japan...
