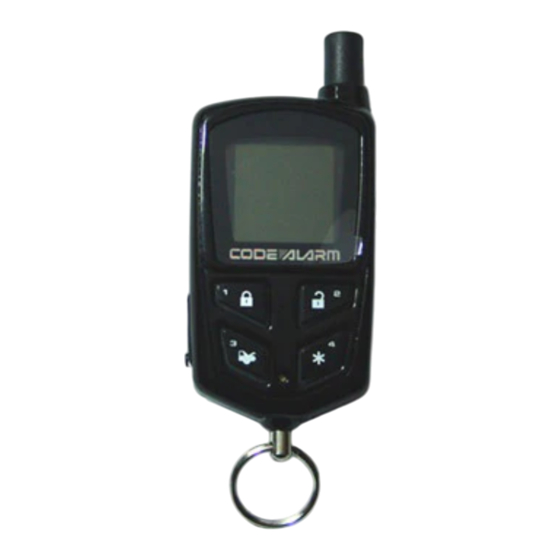

Remote Vehicle Control System
SRT 9000
Owner's Manual
Deluxe Vehicle Security and Remote
Start System with 900Mhz Two Way
Confirming OLED Remote Control
IMPORTANT NOTE: The operation of the Security and Convenience System as described in this
manual is applicable to most vehicles. However, due to the configuration of some vehicles, some
functions AND/OR SAFETY PRECAUTIONS may not apply. Please see your installing dealer for more
information.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRT 9000 and is the answer not in the manual?

Questions and answers

Related Manuals for Code Alarm SRT 9000

Summary of Contents for Code Alarm SRT 9000

  • Page 1 Remote Vehicle Control System SRT 9000 Owner's Manual Deluxe Vehicle Security and Remote Start System with 900Mhz Two Way Confirming OLED Remote Control IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR SAFETY PRECAUTIONS may not apply.

  • Page 2: Table Of Contents

    Table of Contents 2-Way Transmitter Main Display Screen ... 4 2-way transmitter button descriptions and locations Charging the Battery ... 5 2-way transmitter main display page Vehicle Menu Option on the 2-Way Transmitter ... 7 Menu options for the 2-way transmitter Settings for the 2-Way Transmitter ...
  • Page 3 Table of Contents, continued Using Your Remote Control, continued ... 15 Activating optional AUX 1* Activating optional AUX 2* Activating optional AUX 3* Activating optional AUX 4* Using the progressive car finder feature Using the personal protection alarm Using Valet Mode ... 16 Using Your Remote Vehicle Starter ...

  • Page 4: 2-Way Transmitter Main Display Screen

    2-Way Transmitter Main Display Screen Door Lock Door Unlock Temperature Engine Running Count Down Timer Parking Timer Timer Start 2-Way Transmitter Button Descriptions / Locations CHARGING PORT OLED MAIN DISPLAY SCREEN Transmitter Name RESET BUTTON Timer Range Indicator Alarm Status Car Jacking Battery Level Melody Mode...

  • Page 5: Charging The Battery

    Charging the Battery Your 2-way transmitter is powered by a built-in 3.7V lithium polymer battery. When the screen displays low battery or icon is flashing it is time to recharge your remote transmitter. Charge the transmitter battery using the supplied plug-in home charger. While the battery of the transmitter is being charged you can push the “ ” side button to check it’s charging status.
  • Page 6 2-Way Transmitter Main Display Page, continued When the remote start “ ” icon is flashing press the “ ” icon button to display the remote start status. When the count down timer “ buttons numbered 1-4 to start, stop or exit the countdown timer mode. When the start timer “...

  • Page 7: Vehicle Menu Option On The 2-Way Transmitter

    Vehicle Menu Options on the 2-Way Transmitter The 2-way transmitter allows multiple operations from the main four buttons by scrolling through the menu screens and selecting the desired function. To scroll through the menu screens press the “ ” switch up until the desired function is displayed.

  • Page 8: Settings For The 2-Way Transmitter

    Settings for the 2-Way Transmitter Button Beeps The 2-way transmitter buttons will respond with a short “beep” sound when pressed. To turn this feature on or off scroll to menu 1 and select BUTTON BEEPS, then use the corresponding transmitter buttons to make your selections.

  • Page 9: Settings For The 2-Way Transmitter, Continued

    Settings for the 2-Way Transmitter, continued Power Save Mode While in power save mode the 2-way transmitter will not attempt to communicate with the vehicle to conserve battery life. This feature is useful when leaving the vehicle for extended periods of time or if using the secondary 1 way transmitter.

  • Page 10: Settings For The 2-Way Transmitter, Continued

    Settings for the 2-Way Transmitter, continued Lighting for 2-Way Transmitter This setting adjusts the amount of time the 2-way transmitter’s display will remain active without activity. To adjust the amount of time the display stays active scroll to menu 2 and select LIGHTING FOR OLED, then use the corresponding transmitter buttons to make your selections.

  • Page 11: Settings For The 2-Way Transmitter, Continued

    Settings for the 2-Way Transmitter, continued Count Down Timer The 2-way transmitter is equipped with a count down timer that will sound an alert once the time reaches 0:00. To adjust the count down time, scroll to menu 3 and select COUNT DOWN TIMER, then use the corresponding transmitter buttons to make your selections.

  • Page 12: Settings For The 2-Way Transmitter, Continued

    Settings for the 2-Way Transmitter, continued Name of Channel Setting The 2-way transmitter’s AUX output names can be modified to reflect the accessory in which it controls, such as window automation or garage door control. To edit the AUX output name, scroll to menu 5, then use the corresponding transmitter buttons to make your selections.

  • Page 13: Hidden Alarm Feature

    Using Your Remote Control Arming the Security System To arm the system, exit the vehicle, close all doors, then press the LOCK button on the remote control. The system will sound 1 time and the parking lights will flash 1 time, indicating the system is armed, has locked the doors (if equipped and connected) and activated the starter disable feature.

  • Page 14: Using Your Remote Control, Continued

    Using Your Remote Control, continued Disarming the Security System To disarm the system press the UNLOCK button. The system will sound and the parking lights will flash 2 times, and the doors will unlock (if equipped and connected). To disarm the system silently, press and hold the UNLOCK button for 2 seconds.

  • Page 15: Using Your Remote Control, Continued

    Using Your Remote Control, continued Activating Optional AUX 1 (Optional) If this feature is enabled on your system, scroll to vehicle menu 3 and press the AUX 1 button OR simultaneously press and release the LOCK and TRUNK buttons on the remote control to activate an optional feature.

  • Page 16: Using Valet Mode

    Using Valet Mode Using Valet Mode To engage valet mode: 1. Turn the ignition key to the ON position. 2. Press and hold the emergency override button. 3. The blue dashboard mounted LED will light solid indicating that the system is in valet mode. When valet mode is activated the dash mounted status LED will light solid, and all security functions will be disabled.

  • Page 17: Using Your Remote Vehicle Starter, Continued

    Using Your Remote Vehicle Starter, continued Preheating or Precooling the Vehicle’s interior Before exiting the vehicle, set the temperature controls to the desired setting and operation. After the system starts the vehicle, the heater or air conditioning will activate and heat or cool the vehicle’s interior to your setting. Using the “Quick-stop”...

  • Page 18: Using Your Remote Vehicle Starter, Continued

    Using Your Remote Vehicle Starter, continued Operating the Daily Start Timer The system has the ability to start your vehicle based on a preset time entered into the 2-way transmitter. Prior to activating this feature it will be necessary to enter the desired start time, refer to Daily Start Timer on page 11. The daily start timer will only start the vehicle once per activation.

  • Page 19: Additional System Features

    Additional System Features Page Call Out From within the vehicle, press and hold the emergency override button for 4 seconds, the 2-way remote control will emit a beep and the vehicle call page will be displayed to indicate that someone is calling you to the vehicle. Check Vehicle Status To check the vehicle status, scroll to vehicle menu 4 and select STATUS CHECK.

  • Page 20: Anti Hi-Jack Mode

    Anti Hi-Jack Mode Anti Hi-Jack Active Anti Hi-Jack When Active Anti Hi-Jack is selected it must be activated by the transmitter each time it is needed. 1. While the ignition is ON, scroll to vehicle menu 1 and select CAR JACKING or press simultaneously press START and UNLOCK for 5 seconds.

  • Page 21: Quick Reference Operation Guide, Continued

    Quick Reference Operation Guide, continued Remote control button operation. Transmitter Button / Button 1 Arm/Lock Arm and Double Lock Pulse Arm/Lock and Bypass Zone 4 Arm/Lock and Bypass Zone 6 Arm/Lock and Bypass Zone 4 and 6 Arm/Lock w/Hidden Alarm Function Car Finder Panic Silent Arming...

  • Page 22: Replacing Remote Control Batteries

    Replacing Remote Control Batteries 1-way 5 Button Remote Control: The two 3 volt lithium batteries inside the remote control should last approximately 1 year under normal use. When the battery becomes weak you will notice the remote control range (the distance from the vehicle the remote control will work) deteriorate and the small LED on the remote control will dim.
  • Page 23 Emergency Override Procedure, continued Coded Override Procedure The system has an optional override mode that allows you to program a 2-digit personal code using the emergency override button offering a higher level of security. This feature must be enabled by your installing dealer, the default override code is 11.

  • Page 24: Lifetime Warranty

    Code Systems, Inc. Limited Lifetime Warranty Code Systems Inc. (“CODE”) warrants to the ORIGINAL PURCHASER of this CODE vehicle security product (the “Product”), purchased from an authorized CODE dealer, that (except as provided below) should this Product under normal use and conditions, be proven defective in material or workmanship DURING THE LIFETIME OF THE VEHICLE IN WHICH IT WAS ORIGINALLY INSTALLED, such defect(s) will be repaired or replaced (at CODE’s option) without charge for parts directly related to repairs of the defect(s).
  • Page 26 Code Systems, Inc. Customer Service 1-800-421-3209 WWW.CODE-ALARM.COM FCC COMPLIANCE This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
