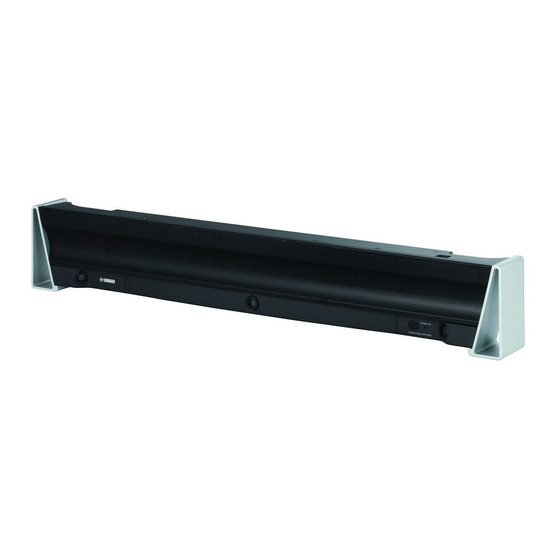

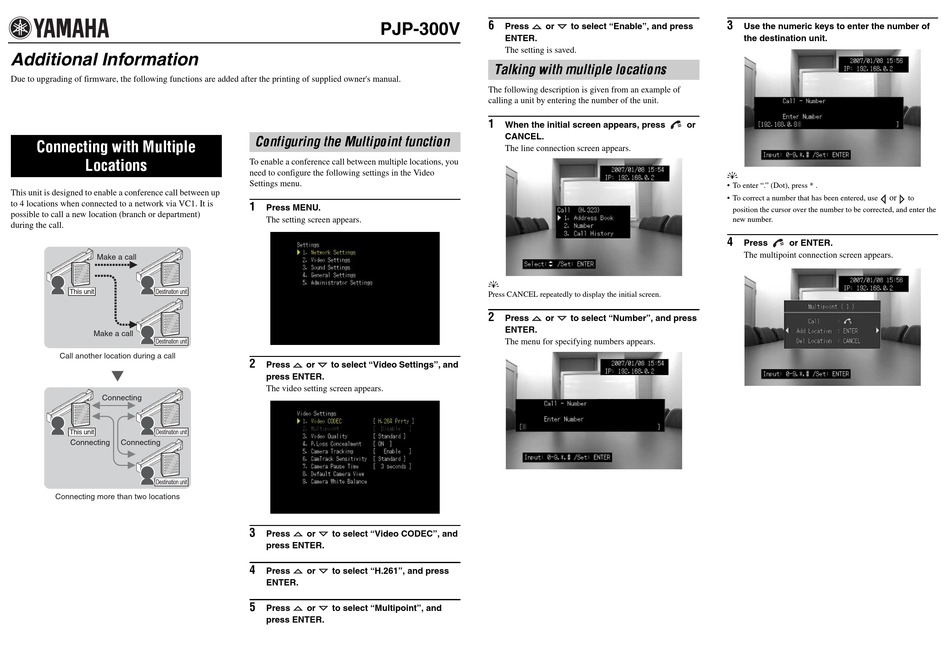

Yamaha PJP-300V Additional Information

Additional Information
Due to upgrading of firmware, the following functions are added after the printing of supplied owner's manual.
Connecting with Multiple
Locations
This unit is designed to enable a conference call between up
to 4 locations when connected to a network via VC1. It is
possible to call a new location (branch or department)
during the call.
Make a call
This unit Destination unit
Make a call
Destination unit
Call another location during a call
Connecting
This unit Destination unit
Connecting Connecting
Destination unit
Connecting more than two locations
PJP-300V
Configuring the Multipoint function
To enable a conference call between multiple locations, you
need to configure the following settings in the Video
Settings menu.
1
Press MENU.
The setting screen appears.
2
Press or to select "Video Settings", and
press ENTER.
The video setting screen appears.
3
Press or to select "Video CODEC", and
press ENTER.
4
Press or to select "H.261", and press
ENTER.
5
Press or to select "Multipoint", and
press ENTER.
6
Press or to select "Enable", and press
ENTER.
The setting is saved.
Talking with multiple locations
The following description is given from an example of
calling a unit by entering the number of the unit.
1
When the initial screen appears, press
CANCEL.
The line connection screen appears.
y
Press CANCEL repeatedly to display the initial screen.
2
Press or to select "Number", and press
ENTER.
The menu for specifying numbers appears.
3
Use the numeric keys to enter the number of
the destination unit.
or
y
• To enter "." (Dot), press * .
• To correct a number that has been entered, use
position the cursor over the number to be corrected, and enter the
new number.
4
Press or ENTER.
The multipoint connection screen appears.
or
to
