DA-PU100 Model No. Things you should keep a record of: Date of purchase Model number • Thank you for purchasing this Panasonic product. • Please read this Operating Manual Serial number carefully before installing the product. • Keep all documentation in a safe place for future reference.
For Your Safety To prevent severe injury and loss of life, read this section carefully before using the product to ensure proper and safe operation. • The following types of symbols are used to describe the level of injury and/or damage that may occur if the product is used incorrectly.
Page 3
• Install, inspect, and repair the product only after disconnecting it from power. • After installation, ensure the area around the product is safe. • Only qualified electrical workers may install, inspect, and repair the product. • Fasten the terminal screw firmly with the appropriate torque. •...
Introduction Check that all accessories are included before installing the product. PLC Adaptor (1) Fixing brackets (3) Small fixing screws (3) Large fixing screws (3) Operating Manual (this manual) (1)
Precautions • This product is for indoor use only. • Panasonic is not responsible for any loss of data and other direct or indirect damage caused by external factors such as power failures or noise on electrical wiring. • This product may be a source of electrical interference for the following devices: –Other PLC devices that use different transmission methods...

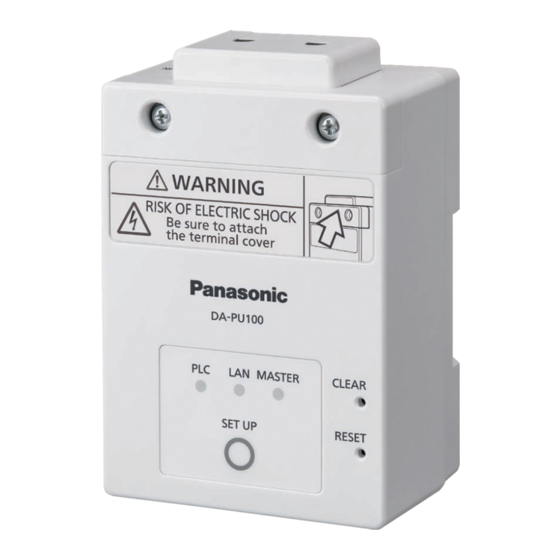

Location of controls Unit With the terminal cover removed MASTER indicator: Indicates whether the product is a MASTER or TERMINAL. LAN indicator: Indicates the status of the LAN connection. PLC indicator: Indicates the status of the PLC link. SET UP button: For details, refer to the Installation Manual. USB connector RS-485 terminal DIN rail lever: Pull the lever in the direction of the arrow to release the product from the...
The state of each indicator MASTER indicator On (green) Operating as PRIMARY MASTER. Operating as SECONDARY MASTER. On (orange) Operating as TERMINAL. LAN indicator Blinking Connected to the LAN. PLC indicator On (green) Connected to a PLC device. On (orange) Connected to power, but not connected to a PLC device.
Appendix Troubleshooting Symptom Possible Cause Remedy None of the Power is not connected. Connect a power source. indicators light The product might be If the PLC indicator does not or blink. malfunctioning. light, contact your dealer. The PLC Another product is not turned on. Turn on another device set to indicator lights operate as the master or a...
Page 9
Factory Reset This function will erase all of the settings in this product and initialize it to the factory default settings. Connect the product to a power source. Press and hold the CLEAR button for more than 3 seconds. Notice •...
Page 10
Specifications Unit Temperature: -25 ℃ – 60 ℃ (-13 ℉ – 140 ℉) Operating environment Humidity: 20 % RH – 85 % RH (No condensation) Degree of protection IP5X from solid objects External dimensions Width × Height × Depth (Approx.): 75 mm ×...
Page 11
Number of terminal Max. 1,024 units per 1 MASTER unit adaptors The indicated value is the theoretical maximum. Actual speeds will be less than this value. This value may differ based on the operating environment. The maximum number of terminal adapters may vary depending on the operating environment.
Page 12
This product uses the "Store and Forward" method, in which it accumulates commands/ responses and then forwards them. Therefore, some forwarding delay will occur. The master/slave setting for RS-485 is separate from the MASTER/TERMINAL setting for PLC. Shielded twisted-pair wiring is recommended. USB port USB 2.0 / USB 1.1 (Type-A) Forwarding method...
Page 13
About the licenses • This product includes software developed by the OpenSSL project for use in the OpenSSL Toolkit. (http://www.openssl.org/) Trademarks • HD-PLC and the HD-PLC logo are trademarks or registered trademarks of Panasonic Corporation in Japan and in other countries.
