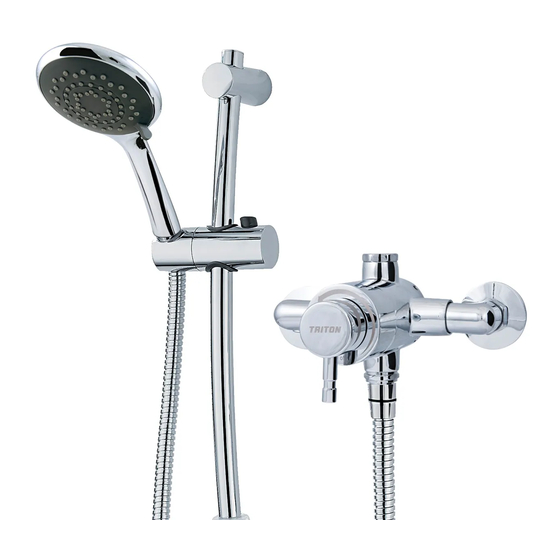

Triton ASANA MINI Instruction Book

Sequential mixer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ASANA MINI
Sequential Mixer
REGISTER ONLINE
ENTER A PRIZE DRAW
WIN
£100
LOVE2SHOP VOUCHERS
VISIT OUR WEBSITE TODAY
TRITONSHOWERS.CO.UK/REGISTER
FOR YOUR SERVICE REFERENCE
NOTE DOWN THE PRODUCT CODE BELOW
(FROM THE FRONT OR TOP OF THE BOX)
ALTERNATIVELY REGISTER BY TEL: 024 7637 8321
INSTALLATION AND OPERATING INSTRUCTIONS
Please read this book thoroughly and familiarise yourself with all instructions before commencing
installation and keep it for future reference.
The mixer shower installation MUST be carried out by a suitably qualified person, in the sequence
of this instruction book.
IMPORTANT SAFETY ADVICE
The shower head and hose supplied with
this product are a safety critical part of your
shower. Failure to use genuine Triton parts may
cause injury and invalidate your guarantee.
2180917E - March 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASANA MINI and is the answer not in the manual?

Questions and answers

Related Manuals for Triton ASANA MINI

Summary of Contents for Triton ASANA MINI

  • Page 1 NOTE DOWN THE PRODUCT CODE BELOW this product are a safety critical part of your (FROM THE FRONT OR TOP OF THE BOX) shower. Failure to use genuine Triton parts may cause injury and invalidate your guarantee. ALTERNATIVELY REGISTER BY TEL: 024 7637 8321...

  • Page 2: Table Of Contents

    FAULT FINDING ................16 - 17 GUARANTEE, SERVICE POLICY, etc..........rear cover nstallers please note these InstructIons are to be left wIth the user To check the product suitability for commercial and multiple installations, please contact Triton’s speci cation advisory service before installation. Telephone:...

  • Page 3: Main Components

    mini exposed sequential thermostatic mixer shower MAIN COMPONENTS Fig.1 Main components Ref Description Control knob 5. Mounting plate Mixer shower valve 6. Inlet nut and olive X2 Blanking plug 7. Wall trim X2 Outlet adapter...

  • Page 4: Dimensions

    mini exposed sequential thermostatic mixer shower DIMENSIONS - All dimensions regarding the product and installation are approximate. 135mm 36mm G1/2 200mm 150mm...

  • Page 5: Introduction

    Water Minimum Flow Rate For best performance within the specified running pressure range a minimum flow of 8 litres per minute should be available to both inlets. Replacement parts can be ordered from Triton Customer Experience. See Spare Parts for details.

  • Page 6: Plumbing Requirements

    DO NOT solder fittings near the mixer shower have to be fitted. For advice on the scale as heat can transfer along the pipework and inhibitor, please contact Triton’s Customer damage the shower. Experience team. DO NOT subject the shower to a water b.

  • Page 7: Typical Domestic Installations

    mini exposed sequential thermostatic mixer shower TYPICAL DOMESTIC INSTALLATIONS *Diagrammatic view – not to scale. *Fig.2 For illustration purpsoes only. Domestic Gravity Fed Systems ( fig.2) The mixer shower MUST be fed from a cold water cistern and hot water cylinder providing nominally equal pressures.
  • Page 8 mini exposed sequential thermostatic mixer shower Instantaneous Gas-heated Systems, *Diagrammatic view – not to scale. *Fig.4 e.g. combination boilers ( fig.4) For illustration purpsoes only. The mixer shower MUST be installed with a multi-point gas water heater or combination boiler of a fully modulating design i.e. to maintain relatively stable hot water temperatures.
  • Page 9 mini exposed sequential thermostatic mixer shower Mains Pressurised Thermal Store Systems *Diagrammatic view – not to scale. *Fig.6 For illustration purpsoes only. fig.6) Packages of this type, fitted with a tempering valve (blender valve) can be used. A drop tight Mixer pressure reducing valve MUST be fitted if the supply pressures exceed 5 bar running.

  • Page 10: Installation

    mini exposed sequential thermostatic mixer shower INSTALLATION *Diagrammatic view – not to scale. *Fig.7 For illustration purpsoes only. Preparing the Mixer Valve Check the contents to make sure all parts are present. Before starting the installation, ensure all the openings on the shower are carefully covered to stop ingress of any debris, etc.

  • Page 11: Fitting The Shower

    mini exposed sequential thermostatic mixer shower FITTING THE SHOWER Fig.9 WARNING! Check there are no hidden cables or pipes before drilling holes for wall plugs. Use great care when using power tools near water. The use of a residual current device (RCD) is always recommended.

  • Page 12: Flow Regulation

    mini exposed sequential thermostatic mixer shower Flow Regulation Fig.13 A flow regulator (not supplierd) is used with Water flow high-pressure water systems and may be fitted Angled top Flow regulator with any of the water systems listed in the Water section System Requirements section to reduce flow rate and assist economy.

  • Page 13: Commissioning

    In either case there is no risk of scalding. If, however, the temperature is above 43°C then it is likely there is contamination in the mixer shower stopping it from shutting off the hot supply. In this case refer to the maintenance section or contact Triton Customer Experience.

  • Page 14: Adjusting The Maximum Temperature Setting

    mini exposed sequential thermostatic mixer shower ADJUSTING THE MAXIMUM Maximum Fig.16 TEMPERATURE SETTING temperature stop position The mixed water temperature can be adjusted from cold through to a top limit (which can be set during installation – factory set at approximately 38°C) with full anti-scald protection throughout the range.

  • Page 15: Approvals & Flow Rates

    mini exposed sequential thermostatic mixer shower APPROVALS This valve has the following approval: • WRAS PRODUCT FLOW RATES - For guidance only Flow Rate (l/m) 4.2 6.5 8.6 10.2 11.7 17.6 25.8 31.9 41.6 Pressure (bar) 0.1 0.2 0.3 Conditions for test Inlet temperatures comply with EN1111 requirements.

  • Page 16: Maintenance

    mini exposed sequential thermostatic mixer shower MAINTENANCE Cleaning It is recommended that all products are cleaned The following maintenance procedure must using warm, soapy water. be carried out for commercial and health care premises, but is not necessarily required for Do not use abrasive or aggressive chemical domestic installations.

  • Page 17: Spare Parts

    To purchase a genuine Triton spare part for your product, please visit www.tritonshowers.co.uk/spares for product codes and prices. Alternatively please call our Customer Experience team on 024 7637 2222 to order direct. Please have your model name available.

  • Page 18: Fault Finding

    1.4 Cold water supply 1.4.1 Turn off shower and consult a competent blocked. plumber or contact Triton Customer Experience. 1.5 High volume of cold 1.5.1 Reduce the simultaneous demand from the water drawn off mains supply.
  • Page 19 mini exposed sequential thermostatic mixer shower FAULT FINDING Problem Cause Action 4 Water does 4.1 Water supplies cut off. 4.1.1 Check water elsewhere in house and if not flow or necessary contact local water company. shower pattern 4.2 Shower unit blocked. 4.2.1 Inspect the filters.
  • Page 20 Trade Installer Hotline: 024 7637 8344 Nuneaton www.tritonshowers.co.uk Warwickshire, CV11 4NR E-mail: serviceenquiries@tritonshowers.co.uk E-mail: technical@tritonshowers.co.uk Triton is a division of Norcros Group (Holdings) Limited Triton reserve the right to change product specifi cation without prior notice. E&OE. © TRITON SHOWERS 2020...
