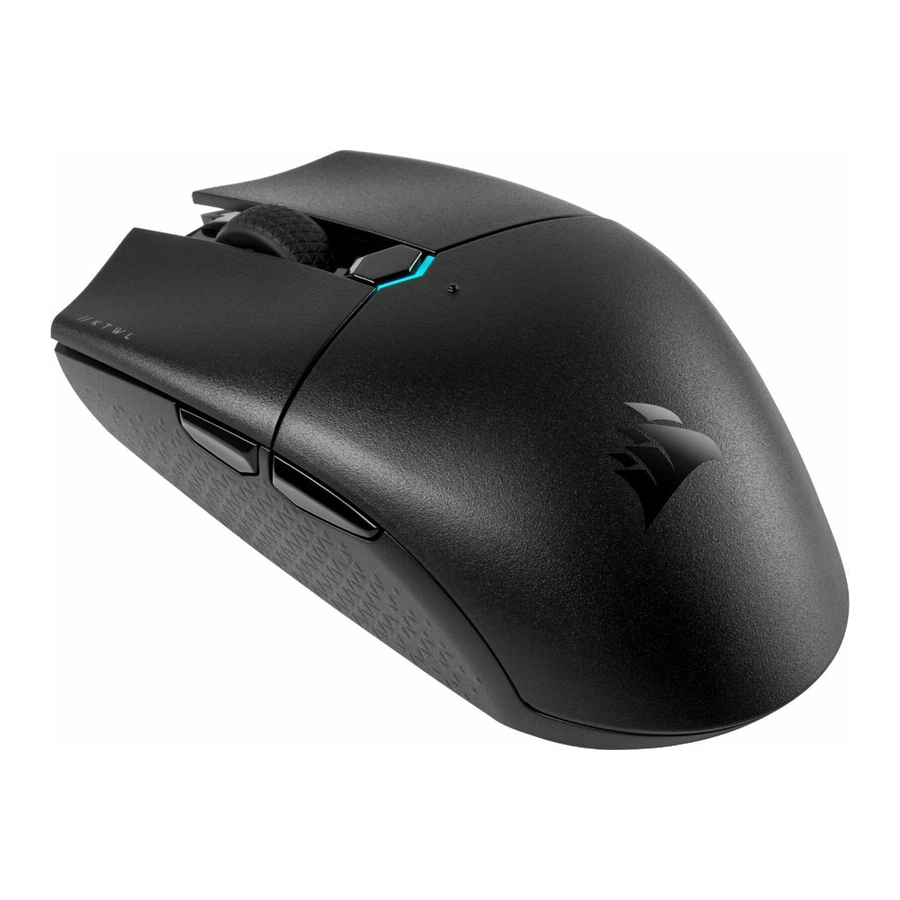

Corsair KATAR PRO WIRELESS - Slipstream Wireless Gaming Mouse Manual

GETTING TO KNOW YOUR MOUSE

1. DPI BUTTON
2. LEFT CLICK BUTTON
3. MIDDLE CLICK BUTTON
4. RIGHT CLICK BUTTON
5. MULTI-PURPOSE LED INDICATOR
6. PTFE GLIDE PADS
7. OPTICAL GAMING SENSOR
8. POWER / WIRELESS MODE SWITCH
9. FORWARD BUTTON
10. BACKWARD BUTTON
11. USB WIRELESS RECEIVER

SETUP GUIDE

1. Remove the top cover by pressing and pulling the small dot near the DPI button.

2. Remove the USB receiver and plug it into an available USB port on a PC (skip this if you wish to connect via Bluetooth).

3. Insert one (1) AA battery.

4. Close the battery cover.

5. Turn on the mouse by flipping the switch on the bottom to 2.4GHz (flip to Bluetooth if you wish to connect via Bluetooth).


SETTING UP YOUR MOUSE USING 2.4GHz WIRELESS

• Turn on your computer and connect the USB wireless receiver to an available USB port.
• Toggle the power / wireless mode switch to "2.4GHz" position to turn on your mouse.
• The multi-purpose LED indicator on your mouse will turn solid white when automatically connected.
• Download CORSAIR iCUE software from www.corsair.com/downloads.
• Run the installer program and follow instructions for installation.

SETTING UP YOUR MOUSE USING BLUETOOTH^®

• Turn on your Bluetooth 4.0 or higher enabled computer and initiate Bluetooth pairing mode on it.
• Hold the DPI CYCLE button and toggle power / wireless mode switch to BT position to turn on your mouse.
• The multi-purpose LED indicator will start blinking blue.
• The multi-purpose LED indicator on your mouse will turn solid blue when connected.

HOW TO PERFORM A FACTORY RESET

• Turn off the mouse by flipping the power switch to the OFF position.
• Press and hold the Left and Right buttons simultaneously.
• Turn on the device with either wireless mode.

MULTI-PURPOSE LED INDICATOR

• Various aspects of mouse operation are communicated through the multi-purpose LED indicator located on top of the mouse.

Initial LED indication sequence: When powering on the mouse, the LED indicator will flash 12 to 15 seconds to indicate various statuses in the following order:

Power Status* > Battery Status > Wireless Status > DPI Stage

*will only show when there is a mode change

POWER MANAGEMENT

If power is low or battery life is a priority, please switch to Power Saving Mode for extended battery life. Please download iCUE for full power management features.

Mode switching without iCUE: To enter Power Saving Mode, turn the power switch to OFF. Press and hold the scroll wheel button and then slide the power switch to either 2.4GHz or Bluetooth, then release the scroll wheel button.

Follow the same steps to switch back to Gaming Mode.

FCC ID: 2AAFMRGP0099 (Mouse)
FCC ID: 2AAFMRGP0066 (Dongle)

IC: 10954A-RGP0099 (Mouse)
IC: 10954A-RGP0066 (Dongle)
