- Page 1 Cole-Parmer HO-200 Series Homogenizer User Manual...
- Page 2 This manual is a guide for the use of the Cole-Parmer HO-200 Series Homogenizer and accessories. Data herein has been verified and validated. It is believed adequate for the intended use of the instrument. If the instrument or procedures are used for purposes over and above the capabilities specified herein, confirmation of the validity and suitability should be obtained, otherwise Cole- Parmer does not guarantee results and assumes no obligation or liability.

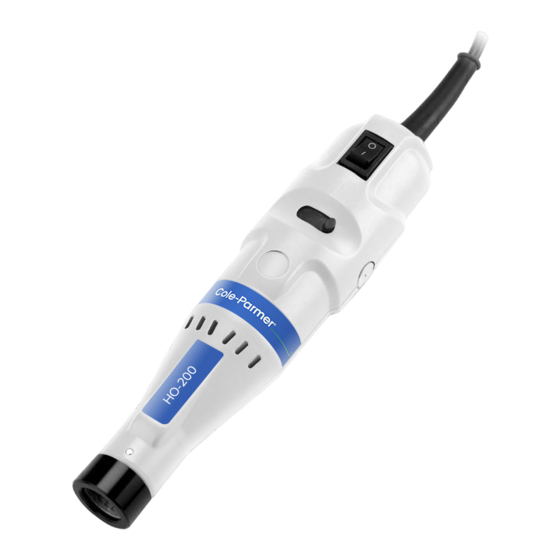

- Page 3 Overview 4. Motor Brushes 1. Power Cord 5. Thumb Screw 2. On/Off Switch 6. Probe Coupling 3. Speed Control Adapter Clamp The Cole-Parmer HO-200 consists of the following: Description Quantity Motor Drive Unit (115V) Or Motor Drive Unit (220V) Clamp Tool Kit Soft Tissue Tip Hard Tissue Tip...
-
Page 4: Stand Mounting
Stand Mounting Clamp Release Button Push to lock into Clamp Clamp 1. Slide the HO-200 into the opening on the end of the post clamp assembly and push it down firmly. The unit will lock in place. 2. To release the motor, press the clamp release button on the back of the opening of the post clamp assembly and lift the motor from the cradle. - Page 5 Accessories Generator Probes 1. Insert Generator 2. Quarter turn 3. Tighten 4. Ready to use *always submerge probe Probe into coupling clockwise to lock Thumbscrew in liquid before starting 1/4 Turn *Never run dry Cole-Parmer Tips and Adapter 1. Insert Adapter 2.
-
Page 6: General Operation
Operation 1. Power Cord 2. On/Off switch 3. Speed Control General Operation Power - Plug in the power cord Start - Move the On/Off switch on the front of the unit to the On position. Set Speed - Adjust speed using the speed control. To increase rpm, move control from left to right. -
Page 7: Troubleshooting
Troubleshooting PROBLEM CORRECTIVE ACTION The Cole-Parmer HO-200 is plugged in - Check power cord connectors and turned on but is not functioning. - Check wall socket for power to the outlet Motor is turned ON and makes a makes a - Check that the brushes are not worn “buzzing”... - Page 8 Beacon Road 625 East Bunker Ct Stone, Staffordshire, ST15 0SA, UK Vernon Hills, IL U.S.A. +44 (0)1785 812121 1 (800) 323-4340 www.COLEPARMER.com PN 03-2016 Rev A...
