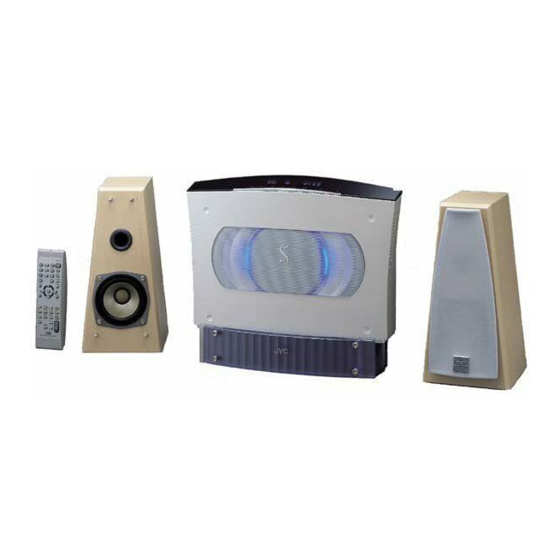

COMPACT COMPONENT SYSTEM
VS-DT6
Consists of CA-VSDT6 and SP-VSDT6
STANDBY/ON
1
2
3
PLAY MODE
4
5
6
REPEAT
7
8
9
FM MODE
10
+
10
BASS
TREBLE
SET
MD/AUX
CANCEL
FM/AM
DISPLAY
DIMMER
SLEEP
AHB PRO
CLOCK
OPEN/
/TIMER
CLOSE
VOLUME
SP-VSDT6
INSTRUCTIONS
COMPACT COMPONENT SYSTEM
CA-VSDT6
For Customer Use:
Enter below the Model No. and Serial No.
which are located either on the rear, bot-
tom or side of the cabinet. Retain this
information for future reference.
SP-VSDT6
Model No.
Serial No.
LVT0853-008A
[A]

Advertisement

Table of Contents
loading

Related Manuals for JVC VS-DT6

Summary of Contents for JVC VS-DT6

  • Page 1 COMPACT COMPONENT SYSTEM VS-DT6 Consists of CA-VSDT6 and SP-VSDT6 STANDBY/ON PLAY MODE REPEAT FM MODE BASS TREBLE MD/AUX CANCEL FM/AM DISPLAY DIMMER SLEEP AHB PRO CLOCK OPEN/ /TIMER CLOSE VOLUME SP-VSDT6 COMPACT COMPONENT SYSTEM CA-VSDT6 INSTRUCTIONS SP-VSDT6 For Customer Use: Enter below the Model No.

  • Page 2: Important For Laser Products

    Caution — % % switch! Disconnect the mains plug to shut the power off completely (the % goes off). The % % switch in any position does not disconnect the mains line. When the unit is on standby, the % % lights red.

  • Page 3: Introduction

    I The controls and operations have been redesigned to make them very easy to use, freeing you to just enjoy the music. • With JVC’s COMPU PLAY you can turn on the System and automatically start the Radio or CD Player with a single touch.

  • Page 4: Table Of Contents

    Table of Contents Introduction ... 1 Features ... 1 How This Manual Is Organized ... 1 WARNINGS ... 1 IMPORTANT CAUTIONS ... 1 Getting Started ... 3 Accessories... 3 How To Put Batteries In the Remote Control ... 3 Connecting the FM Antenna ... 4 Connecting the AM Antenna...

  • Page 5: Getting Started

    Getting Started Accessories Make sure that you have all of the following items, which are supplied with the System. Power Cord (1) AM Loop Antenna (1) Remote Control (1) Batteries (2) FM Wire Antenna (1) Speaker Cords (2) Stand (1) (for Center Unit) Legs (2) (for Stand) Screw (1) (for Stand) Paper Pattern (1)

  • Page 6: Connecting The Fm Antenna

    Getting Started CAUTION: • Make all connections before plugging the System into an AC power outlet. (Only if you install the Center Unit vertically) • To place the Center Unit vertically, the Stand and Legs must be attached. (See page 8.) To make connections, let the cords pass in the holes of the Stand as shown in the diagram before attaching the Stand and Legs.

  • Page 7: Connecting The Am Antenna

    Connecting the AM Antenna Rear Panel of the Center Unit AM loop antenna (Supplied) Attach the AM loop to its base by snapping the tabs on the loop into the slot in the base. • The AM loop antenna can be attached to a wall. Screw (not supplied) •...

  • Page 8: Connecting The Speakers

    Getting Started CAUTION: • Make all connections before plugging the System into an AC power outlet. • Handling the speakers As this is a precision instrument, handle it carefully so as to protect it from shocks. Connecting the Speakers These speakers are exclusively for this system. Using with other devices will damege the speakers. 1.

  • Page 9: Connecting A Subwoofer

    Connecting a Subwoofer Connect a signal cord (not supplied) between the System’s SUBWOOFER terminal and the input terminal of an external sub- woofer. Subwoofer (not suipplied) Connecting External Equipment Connect signal cords (not supplied) between the System’s MD/AUX-OUT/IN terminals and the output/input terminals of the external MD recorder, tape deck, etc.

  • Page 10: Connecting An Md Recorder, Etc (Digital Output)

    Firmly insert the supplied AC power cord into the AC inlet on the back of the Unit. CAUTIONS: • ONLY USE THE JVC POWER CORD PROVIDED WITH THIS SYSTEM TO AVOID MALFUNCTION OR DAMAGE TO THE SYSTEM. • BE SURE TO UNPLUG THE POWER CORD FROM THE OUTLET WHEN GOING OUT OR WHEN THE SYSTEM IS NOT IN USE FOR AN EXTENDED PERIOD OF TIME.

  • Page 11: Installing The Equipment On The Wall

    Installing the Equipment on the Wall The Center Unit and Speakers can be attached to a wall. CAUTIONS: Attachment to a wall • The Center Unit weighs approximately 4.3 kg. When its buttons are operated, an additional force will be applied to it in the downward direction.

  • Page 12: Changing The Display And Control Buttons Settings

    Getting Started Example of attachment (Speakers) The speakers can be attached to a wall. Attach a screw (not supplied) on the wall, then hook the speaker onto the screw. • Do not place anything on top of the Center Unit. Doing so may cause the Center Unit to fall, causing malfunctioning and/or injury. •...

  • Page 13: Using The Remote Control

    COMPU Play JVC’s COMPU PLAY feature lets you control the most frequently used System functions with a single touch. With One Touch Operation you can play a CD, turn on the radio, or listen to an external equipment with a single press of the play button for that function.

  • Page 14: Basic Operations

    Basic Operations STANDBY/ON PLAY MODE REPEAT FM MODE BASS TREBLE BASS TREBLE MD/AUX CANCEL DISPLAY DIMMER FM/AM DISPLAY DIMMER SLEEP AHB PRO AHB PRO VOLUME +/– CLOCK OPEN/ /TIMER CLOSE VOLUME Turning the Power On and Off Turning the System On Press the % button.

  • Page 15: Adjusting The Volume

    Adjusting the Volume To increase the volume, press the VOLUME + button on the Remote Control (or VOL + button on the Unit). To decrease the volume, press the VOLUME – button on the Remote Control (or VOL – button on the Unit). You can adjust the volume level between 0 and 50.

  • Page 16: Using The Tuner

    Using the Tuner STANDBY/ON Number PLAY MODE Buttons REPEAT FM MODE BASS TREBLE MD/AUX CANCEL FM/AM DISPLAY DIMMER SLEEP FM/AM AHB PRO CLOCK OPEN/ /TIMER CLOSE VOLUME * When the System is in use, the display shows other items as well. For simplicity, we show here only the items described in this section.

  • Page 17: Presetting Stations

    Presetting Stations (Using the Remote Control) You can preset up to 30 FM stations and up to 15 AM sta- tions. • Preset numbers may have been set to factory test fre- quencies prior to shipment. This is not a malfunction. You can preset the stations you want into memory by following one of the presetting methods below.

  • Page 18: Using The Cd Player

    Using the CD Player STANDBY/ON Number PLAY MODE PLAY MODE buttons REPEAT REPEAT FM MODE BASS TREBLE MD/AUX CANCEL FM/AM DISPLAY DIMMER SLEEP AHB PRO CLOCK OPEN/ /TIMER CLOSE VOLUME OPEN/ CLOSE * When the System is in use, the display shows other items as well. For simplicity, we show here only the items described in this section.

  • Page 19: To Unload A Cd

    CAUTIONS: • DO NOT try to open or close the Panel by hands as it will be damaged. Press the OPEN/CLOSE button on the Remote Con- trol to open or close the Panel. • DO NOT try to insert another CD when a CD has been already loaded on the Unit.

  • Page 20: Random Play

    Using the CD Player Press the Number button to select the track to program. Each time you press the Number button, the selected track is added to the program. • For the track number more than 10, press the +10 button then the Number button.

  • Page 21: Using External Equipment

    Using External Equipment STANDBY/ON PLAY MODE REPEAT FM MODE BASS TREBLE MD/AUX CANCEL MD/AUX FM/AM DISPLAY DIMMER SLEEP AHB PRO CLOCK OPEN/ /TIMER CLOSE VOLUME Listening to External Equipment You can listen to external equipment such as MD recorder, cassette deck or other auxiliary. I First make sure that the external equipment is properly connected to the System.

  • Page 22: Using The Timers

    Using the Timers STANDBY/ON PLAY MODE REPEAT FM MODE BASS TREBLE MD/AUX CANCEL FM/AM DISPLAY DIMMER SLEEP AHB PRO CLOCK OPEN/ /TIMER CLOSE CLOCK VOLUME /TIMER * When the System is in use, the display shows other items as well. For simplicity, we show here only the items described in this section.

  • Page 23: Setting The Daily Timer

    Setting the Daily Timer (Using the Remote Control) Once you have set the Daily Timer, the timer will be acti- vated at the same time every day. The Timer indicator ( ) on the display shows that the Dai- ly Timer you have set is in effect. •...

  • Page 24: Setting The Sleep Timer

    Using the Timers Before turning off the System, prepare the music source selected in step 3. TUNER: Tune in to the desired station. Insert a CD. (Playback will start from the first track at Timer on.) Press the % % button to turn off the Sys- tem.

  • Page 25: Care And Maintenance

    Care And Maintenance Handle your CDs carefully, and they will last a long time. Compact Discs • Only CDs bearing this mark can be used with this System. How- ever, continued use of irregular shape CDs (heart-shape, octago- nal, etc.) can damage the System. •...

  • Page 26: Troubleshooting

    Troubleshooting • If you are having a problem with your System, check this list for a possible solution before calling for service. Symptom No sound is heard. Poor radio reception The CD skips. The CD does not play. Unable to operate the Remote Control. Operations are disabled.

  • Page 27: Specifications

    Specifications CA-VSDT6 Amplifier 38 W (19 W + 19 W) at 4 Ω (Max.) Output Power 30 W (15 W + 15 W) at 4 Ω (10 % THD) Input Sensitivity/Impedance (1 kHz) MD/AUX IN 500 mV/47 kΩ Output Sensitivity/Impedance (1 kHz) MD/AUX OUT 500 mV/5 kΩ...
  • Page 28 VICTOR COMPANY OF JAPAN, LIMITED 0302MNMIDEJEM...
  • Page 29 CAUTION/VORSCIHT/ATTENTION/OPGELET/CUIDADO/ ATTENZIONE/FÖRSIKRIGT/MUISTA/FORSIGTIG • Insert a disc with its label side front. • Legen Sie eine Disc mit der Etikettseite nach außen ein. • Introduisez un disque avec sa face portant l’étiquette vers l’avant. • Plaats een disc met de labelkant naar voren erin.
  • Page 30 182 mm (7 – ") Paper Pattern 91 mm (3 – ") Use this paper pattern when attaching the Center Unit on the wall. This paper pattern will assist in determining the positions of the screws. For details, refer to “Installing the Equipment on the Wall”...
