Synthesizers and Samplers
MS-1-BK /
MS-1-BU / MS-1-RD
Analog Synthesizer with 32 Full-Size Keys,
3340 VCO with 4 Simultaneous Waveforms,
VCF, NovaMod FM Sources, 32-Step Sequencer,
Arpeggiator and Live Performance Kit
User Support Bulletin
Introduction
The unit is carefully calibrated at the factory. The performance may change over time or due to environmental changes,
and the following recalibration procedures can be used to bring it back to its factory settings.

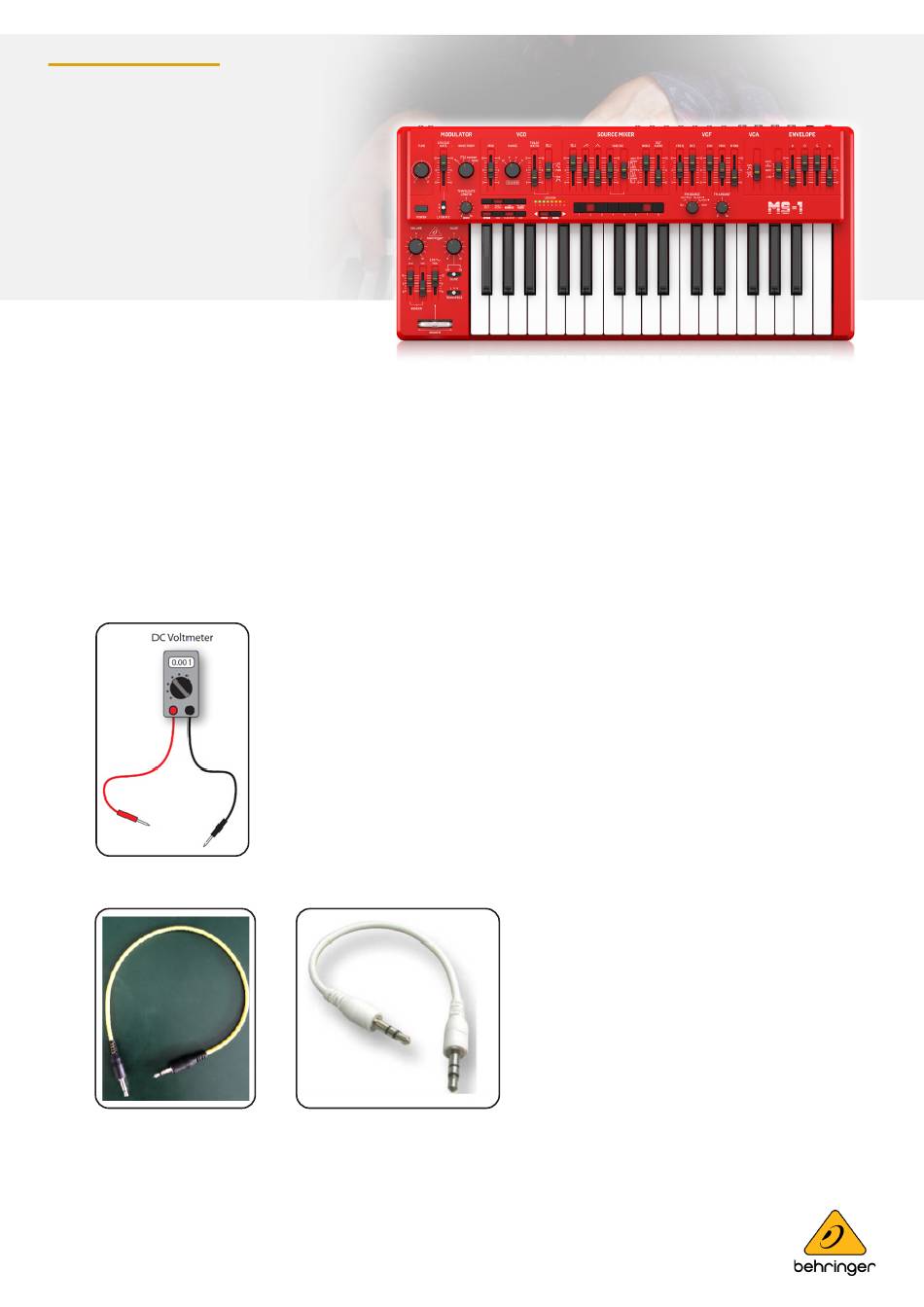

Equipment required
1. A multimeter (with 1 mv resolution)
2. A 3.5 mm cable (mono or stereo should be fine)
985-40000-01104 Rev.A
2021-02-03
Confidential, for internal use only. Not to be reproduced.
page 1 of 5
Advertisement
Table of Contents
Related Manuals for Behringer MS-1-BK
Summary of Contents for Behringer MS-1-BK
- Page 1 Synthesizers and Samplers MS-1-BK / MS-1-BU / MS-1-RD Analog Synthesizer with 32 Full-Size Keys, 3340 VCO with 4 Simultaneous Waveforms, VCF, NovaMod FM Sources, 32-Step Sequencer, Arpeggiator and Live Performance Kit User Support Bulletin Introduction The unit is carefully calibrated at the factory. The performance may change over time or due to environmental changes, and the following recalibration procedures can be used to bring it back to its factory settings.
- Page 2 Synthesizers and Samplers MS-1-BK / MS-1-BU / MS-1-RD Preparation Make sure your MS-1 has been powered on for at least 30 minutes, and that it is situated in a place where the temperature will not change drastically during calibration. Remove all unused cables from the MS-1.
- Page 3 Synthesizers and Samplers MS-1-BK / MS-1-BU / MS-1-RD Internal CV Calibration Press “KYBD + STEP” then power on device. All the sequencer LEDs will light up. Press “Shift + STEP1” to start Internal CV calibration. Wait for calibration to finish.
- Page 4 Synthesizers and Samplers MS-1-BK / MS-1-BU / MS-1-RD Connect the Multimeter to CV Out as shown below. Carry out the Internal CV Calibration before starting this Output CV calibration. Press “Shift + STEP2” to enter user Output CV calibration mode.
- Page 5 Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Oberheim, Auratone and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd.
