NEUTRIK powerCON TRUE1 NAC3MX-W Operating & Assembly Instruction

R
OPERATING & ASSEMBLY INSTRUCTION

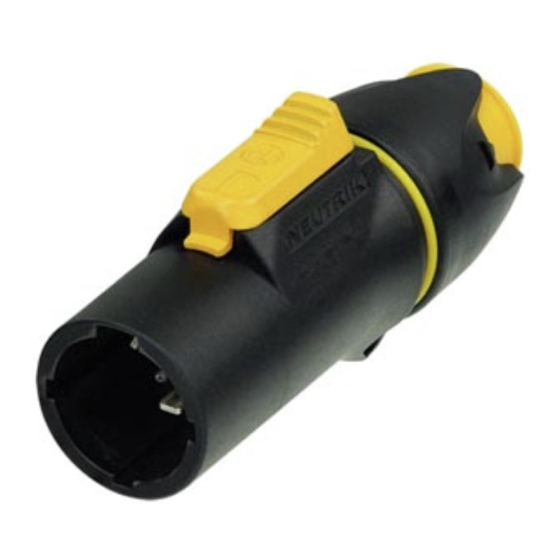

NAC3MX-W
A. OPERATING INSTRUCTION
Application:
The powerCON TRUE1 system is certified as connector with breaking capacity according IEC 60320,
VDE 0625. It is intended for use as appliance couplers and interconnection couplers. It serves to
supply power to an appliance and from an appliance to another equipment. To be installed by qualified
person only.
Connector Assignment:
APPLIANCE INLET
NAC3MPX
Power IN
NAC3FX-W
(Connector)
Approval based:
Rating:
Cable Type:
Strain Relief:
Cable O.D.:
B. ASSEMBLY INSTRUCTION
A
Insert cable into the
bushing and housing.
Note: "Apply cable
pulling lubricant to
cable jacket."
C
Place the chuck over
the cable.
D
Prepare the cable as
shown.
BDA 380
|
powerCON TRUE1
APPLIANCE OUTLET
Power OUT
NAC3MX-W
(Plug connector)
VDE
EN 60320-1/EN60320-2-2
250 V ac / 16 A
2
H05VV-F3G 1.0 mm , Length max. 2 m
H05VV-F3G 1.5 - 2.5 mm
H07RN-F3G 1.5 mm 2
White chuck
6.0 - 12.0 mm
C
PE 23 mm
VDE (EN 60320-1/EN60320-2-2)
NAC3FPX
NAC3FPX-ST
NAC3FX-W
(Connector)
UL
UL 498 / CSA C22.2 No. 182.3
250 V ac / 20 A
SJTOW, SJOOW 3 x 12 AWG
2
White chuck
6.0 - 12.0 mm
B
Separate the
housing from the
bushing (cable
remain in bushing)
20 mm
[0.787"]
8 mm
[0.32"]
[0.9"]
UL (UL 498 / CSA C22.2 No. 182.3)
APPLIANCE INLET - OUTLET
COMBINATION
NAC3PX
Power IN
Power OUT
NAC3MX-W
(Plug connector)
20 mm
[0.787"]
PE 23 mm
[0.9"]
8 mm
[0.32"]
Page 1
