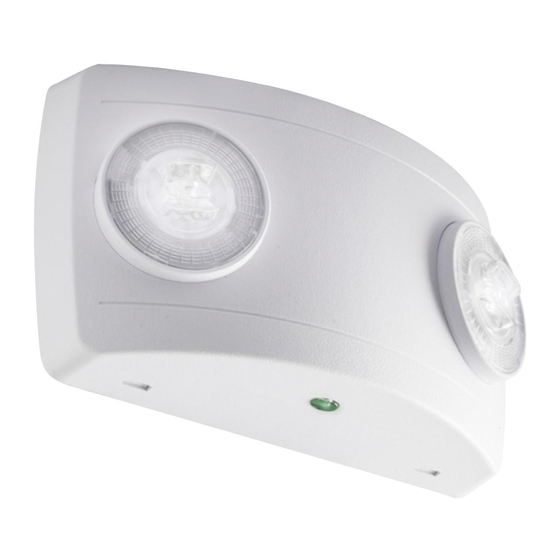

PrimEvo
TW220E
INSTRUCTION LEAFLET
EN
PLEASE NOTE!
This product must not be modified in any
way. Only original parts should be used
for maintenance.
Technical specifications
Power Supply
Power Consumption
LED
Operation
Function
Discharge Duration
Charge Time
Battery
Protection Grade
Protection Class
Emergency lumens output
220-240VAC, 50/60 Hz
Max. 6.5W
Maintained or Non-maintained
Manual test
24 Hours
Ni-M,3.6V 1.5Ah 2pcs
NI-Mh,3.6V 1.8Ah 2pcs
SMD 2W
3 Hours
IP20
II
220 lm
