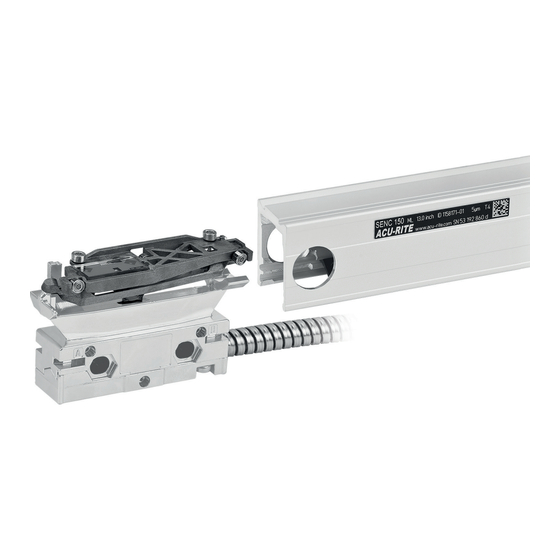

READING HEAD REPLACEMENT INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SENC 150 and is the answer not in the manual?

Questions and answers

Related Manuals for ACU-RITE SENC 150

Summary of Contents for ACU-RITE SENC 150

  • Page 1 SENC 150 SENC 150 SENC 150 READING HEAD REPLACEMENT INSTRUCTIONS...

  • Page 3: Table Of Contents

    SENC 150 Reading Head Replacement Instructions Table of Contents / Warnings Page Introduction / Supplied items ........4 Preparing the removal ........... 5 Removing the encoder ..........6 Removing the reading head .......... 7 Cleaning the scale ............7 Inserting the reading head ..........8 Preparing the remounting ..........

  • Page 4: Introduction / Supplied Items

    1 Introduction / Supplied items SENC 150 Reading Head Replacement Instructions Before you begin: Contents  Read the instructions completely before replacing the reading head.  Please ensure that no further damage occurs while removing the reading head. Note: Mounting and commissioning is to be conducted...

  • Page 5: Preparing The Removal

    SENC 150 Reading Head Replacement Instructions 2 Preparing the removal Preparing the removal Installing alignment brackets  Remove all cable ties or retaining clips.  Attach the alignment brackets (included in head replacement  Disconnect the reading head cable from the readout.

  • Page 6: Removing The Encoder

    3 Removing the encoder SENC 150 Reading Head Replacement Instructions Removing the reading head screws Removing the end hole or set screws set screws M4 x 25 mm SHCS low head M6 x 25 mm (8-32 x 5/8” SHCS low head) (1/4”-20 x 3/4”...

  • Page 7: Removing The Reading Head

    SENC 150 Reading Head Replacement Instructions 4 Removing the reading head 5 Cleaning the scale Removing the reading head Cleaning the glass scale Twist brackets 45° to remove.  Saturate a clean cotton swab or lint-free cloth with alcohol. Slide brackets away from ...

  • Page 8: Inserting The Reading Head

    6 Inserting the reading head SENC 150 Reading Head Replacement Instructions Insertion tool Inserting the tool  Remove tape keeping the reading head contained within the  Push the tool into the end of the scale case until it is stopped insertion tool.

  • Page 9: Preparing The Remounting

    SENC 150 Reading Head Replacement Instructions 7 Preparing the remounting Installing alignment brackets Determining cable direction  Determine cabel exit direction before mounting the encoder.  Attach the alignment brackets provided by inserting the top  To change the cable exit direction, remove the cover plate ears into the bottom grooves in the scale case.

  • Page 10: Remounting The Encoder Assembly

    8 Remounting the encoder assembly SENC 150 Reading Head Replacement Instructions Remounting the encoder assembly Removing the alignment brackets  Remount the encoder as it was originally installed, using the same brackets, fasteners and spar or support.  Refer to the encoder manual (ID: 516291-22) as from section 5.

  • Page 11: Checking The Mounting

    SENC 150 Reading Head Replacement Instructions 9 Checking the mounting Connecting the encoder  Route the cables with slack loops to allow for axis motion.  Secure excess cable by fastening with clips or ties.  Attach the linear encoder connectors to the readout.
  • Page 12  ID: 585209-21 D585209-01-C-03 07/2018...
