Welch Allyn GS 300 Quick Manual

GS 300
General Exam Light
Manual part no. 728688
© 2018 Welch Allyn
Revision date: 2018-08
Symbol descriptions
See the accompanying manual.
Caution: High intensity light.
Use indoors.
Power on/off.
Warning
Caution
120°F
(50°C)
Temperature limits
-4°F
(-20°C)
90%
Humidity limitation
15%
1060
hPa
Atmospheric pressure limitation
700
hPa
Mass in kilograms (kg)
Warnings and cautions
WARNING: Read and understand the instructions prior to use of
this product. Failure to understand the operating requirements for
this product may result in injury to yourself, the patient and/or may
damage the instrument.
WARNING: Do not operate this product in the presence of
flammable anesthetics or other flammable substances in
combination with air, oxygen-enriched environments, or nitrous
oxide; explosion can result.
WARNING: Illumination is intense. Do not stare at the light source
in operation. May be harmful to eyes. To minimize risk of harm to the
eyes from optical radiation hazards, avoid looking at bright light
sources and their reflections, and protect eyes where normal pupil
sizes and aversion responses are not present.
WARNING: Use the examination light in its intended working range
of 20 in (50 cm). Exposures at closer distances may be harmful to
skin. To minimize risk of harm to the skin from optical radiation
hazards, minimize illumination intensity at the tissue examination
site, minimize exposure times, and take additional precautions when
skin sensitivity has been altered through tissue trauma or the use of
anesthesia.
WARNING: This is a class A product. In a hospital/physician's office
environment this product may cause radio interference in which case
the user may be required to take adequate measures.
WARNING: Do not modify this equipment. Any modification of this
equipment can lead to patient injury. Any modification of this
equipment voids the product warranty.
Warnings and cautions (continued)
WARNING: Personal injury risk. To avoid the risk of electric shock,
this equipment must only be connected to a supply mains with
protective earth.
WARNING: Personal injury risk. The power cord is the disconnect
device to isolate this equipment from supply mains. Position the
equipment so that it is not difficult to reach to disconnect the cord.
CAUTION: Only authorized Welch Allyn Service Centers can perform
service on this product.
CAUTION: There are no user serviceable/replaceable parts.
CAUTION: Rx only.
Intended use
The Welch Allyn GS 300 is designed to meet the various needs of the
physician's office, hospital environment and specialist's office. It is not
intended for rendering diagnosis or surgery.

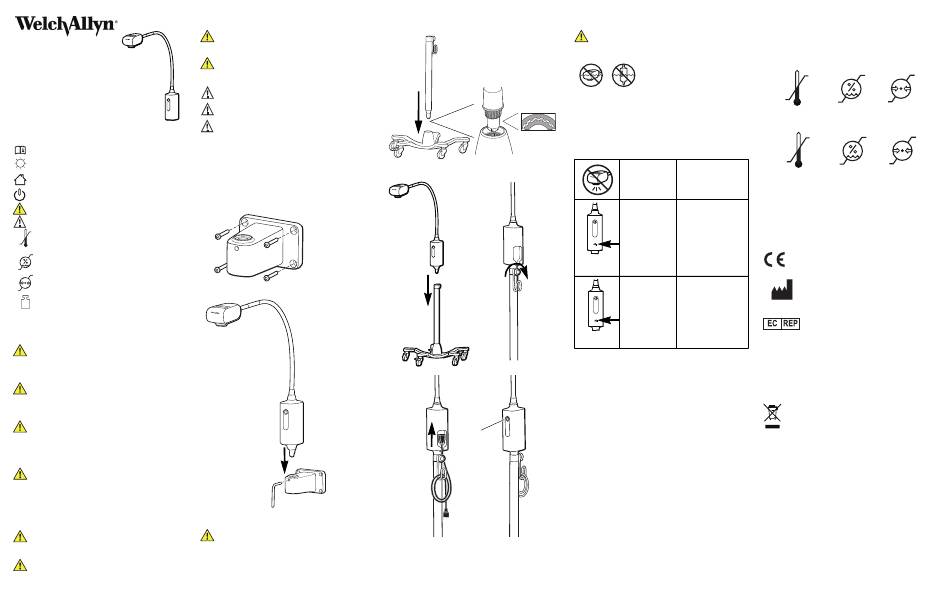

Mounting
Table/wall mount
1.
2.
3.
WARNING: Ensure that the mounting bracket is securely anchored
to the wall or table, or that the mobile stand is securely assembled,
and the exam light is securely fastened to the bracket or stand as
directed. Do not hang or place objects on the equipment.
Setup instructions
Mobile stand assembly instructions
Set up
2.
1.
3.
4.
Cleaning
WARNING: Ensure that the device is unplugged from wall socket.
Luminaire
Clean with a damp cloth using warm water and mild detergent or one of the
following solutions:
• 70 percent isopropyl alcohol
• 10 percent mild bleach solution
Wipe dry with a clean cloth.
Troubleshooting
Possible cause Solution
Power supply fault. Verify all cables are
No power supplied to connected correctly.
light.
Green light not
illuminated
Light is not Call Welch Allyn Customer
functioning correctly Service.
Green light
illuminated
Warranty
Five years.
Specifications
Electrical
Input: 100-240 V~ 50Hz-60Hz, 0.35A max
Environment
Operating:
95°F (35°C) 90% 1060 hPa
50°F (10°C)
15% 700 hPa
Transport/storage:
120°F (50°C) 90% 1060 hPa
-4°F (-20°C)
15% 500 hPa
Equipment classification
Safety Class I, Continuous Operation
Additional technical information
www.welchallyn.com/gsseries
Approvals
IEC 60601-1, UL 60601-1, IEC 60601-1-2, CAN/CSA C22.2 No 601.1-M90,
AS/NZS3200
Welch Allyn, Inc.
4341 State Street Road
Skaneateles Falls, NY 13153-0220 USA
www.welchallyn.com
Regulatory Affairs Representative
Welch Allyn Limited
Navan Business Park
Dublin Road
Navan, County Meath Republic of Ireland
For information about electromagnetic compatibility (EMC), see the Welch
Allyn website: www.welchallyn.com/emc-examlight
A printed copy of the Emissions and immunity information can be ordered
from Welch Allyn for delivery within 7 calendar days.
www.welchallyn.com/weee
Patent No.: US D621,981 S
