- Page 1 C1D2 Dual Alarm Bar 2 Strobe with Horn Alarm Station Operator’s Installation and Instruction Manual DETCON, Inc. 4055 Technology Forest, Suite 100 The Woodlands, Texas 77387 Ph.281.367.4100 / Fax 281.298.2868 www.detcon.com Aug. 04, 2015 • Document #4530 • Revision 0.1...
- Page 2 Dual Alarm Bar This page left intentionally blank Dual Alarm Instruction Manual...
-
Page 3: Table Of Contents
Dual Alarm Bar Table of Contents Description..............................1 Strobe ..............................2 Horn..............................2 Installation..............................3 Operation..............................5 Specifications............................6 Spare Parts List............................6 Warranty ..............................7 Revision Log ............................. 8 Table of Figures Figure 1 Unit ................................ 1 Figure 2 Strobe ..............................2 Figure 3 Horn ............................... - Page 4 Dual Alarm Bar This page left intentionally blank Shipping Address: 4055 Technology Forest, Suite 100, The Woodlands, Texas 77381 Mailing Address: P.O. Box 8067, The Woodlands Texas 77387-8067 www.detcon.com Phone: 888.367.4286, 281.367.4100 • Fax: 281.292.2860 • • sales@detcon.com Dual Alarm Instruction Manual...
-
Page 5: Description

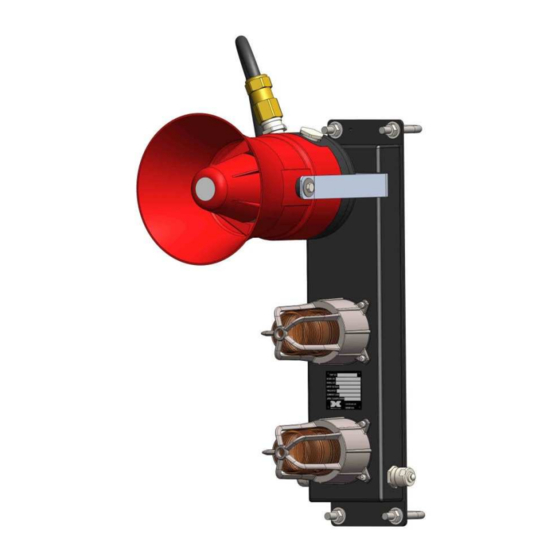

The siren produces a noise level of 105db(A) @ 10 feet. The Horn and Strobes are UL listed and CSA Certified and meet NEMA 4X watertight, dust-tight requirements. Alarm components are pre- assembled on a NEMA 4 enclosure that is designed for C1D2 Groups B, C, and D locations. Figure 1 Unit The alarm station is pre-wired to control circuit alarm devices for the purpose of warning personnel of hazardous conditions. -
Page 6: Strobe
The alarm station strobe is configured with choice of dome colors such as amber, blue, clear, green, magenta, or red. The strobes are rated NEMA4x for C1D2 Groups A, B, C, and D locations, and utilize a Strobe Guard, and gasket to complete the NEMA4 rating. The strobes produce 1.9 joules per flash while drawing relatively low current and have a flash rate of 60~80 per second. -
Page 7: Installation
Dual Alarm Bar 2.0 Installation NOTE: DO NOT handle the unit by the cable. The cable is not meant to be used as a handle, and damage may occur to the unit if the cable is used to carry the unit. The unit comes with U-Bolt hardware provided for mounting on 2~3 inch poles. -
Page 8: Figure 3 Wiring Diagram
Dual Alarm Bar Green/Yellow DB3 Horn Alarm 5 Black Cable to Horn. Use Ty-Wraps to keep wiring neat. Brown White White Gray Green Black Black Black Black Black Orange Blue Blue Strobe 1 Strobe 2 Alarm 1 Alarm 2 Strobe 4 Alarm 4 Strobe 3 Alarm 3... -
Page 9: Operation
Dual Alarm Bar 3.0 Operation The Quad Alarm Bar provides four strobes and an alarm horn. The wireless alarm station is set to respond to alarms from the controlling unit. The controller has independent control over the strobes and the Horns, and they will be activated when the appropriate alarm is activated. -
Page 10: Specifications
Mount: Wall Mount or 2~3” Pipe Mount Environment Rating: Designed to meet NEMA 4 specifications Area Classification: Designed for use in C1D2 Groups B, C, D locations Ambient Temperature Range: -40°C to 65°C Dimensions: 21”H X 7.67”W X 14.6”D Weight: 18lbs approx. -
Page 11: Warranty
Dual Alarm Bar 6.0 Warranty Detcon Inc., as manufacturer, warrants under intended normal use each new Quad Alarm Bar NEMA 4X alarm stations to be free from defects in material and workmanship for a period of one year. The warranty period begins from the date of shipment to the original purchaser and ends one year thereafter. -
Page 12: Revision Log
Initial Release 08/04/15 Redesign for DB3B Horn Shipping Address: 4055 Technology Forest, Suite 100, The Woodlands, Texas 77381 Mailing Address: P.O. Box 8067, The Woodlands Texas 77387-8067 www.detcon.com Phone: 888.367.4286, 281.367.4100 • Fax: 281.292.2860 • • sales@detcon.com Dual Alarm Instruction Manual Rev.
