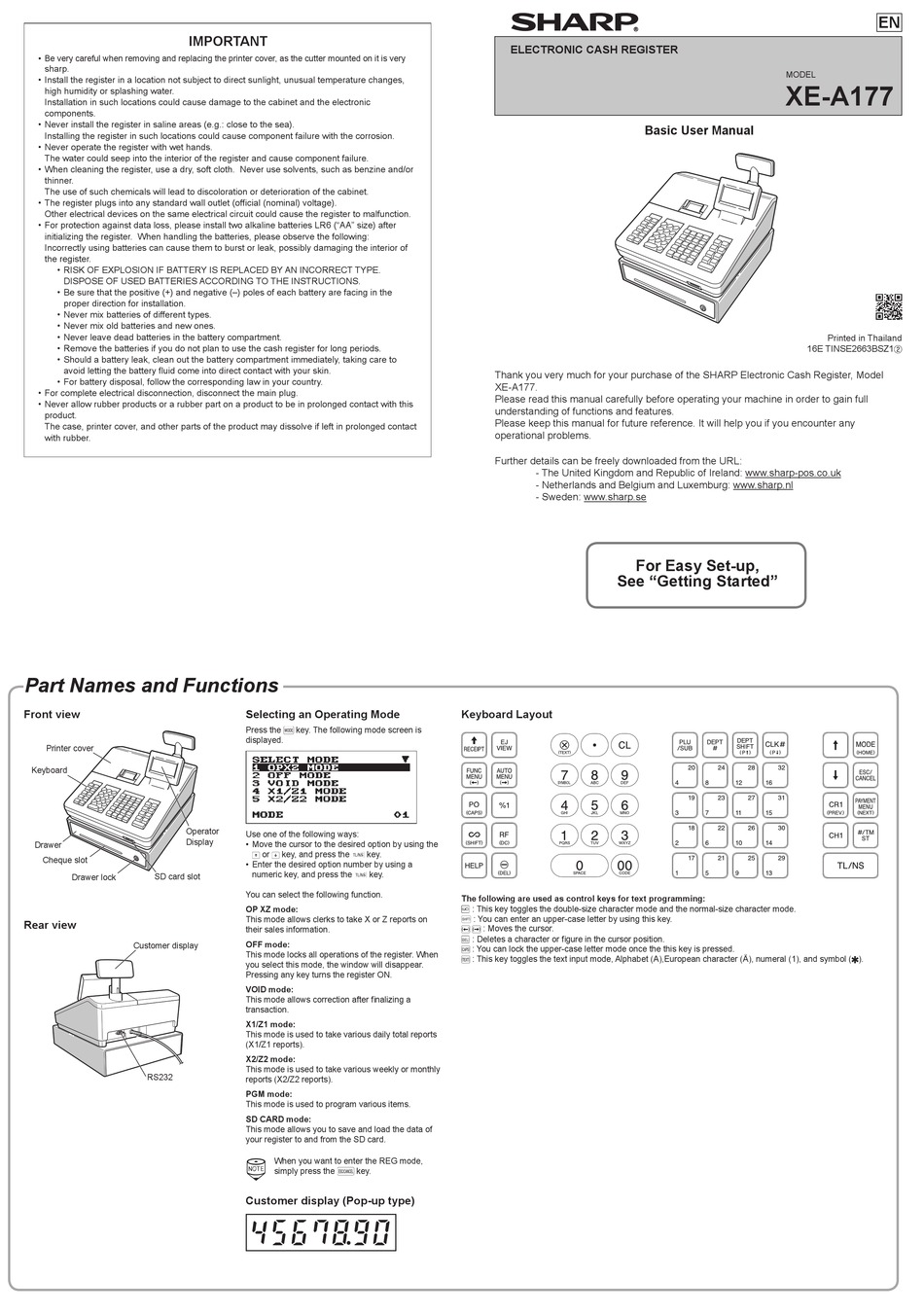

Sharp XE-A177 Basic User Manual

IMPORTANT
• Be very careful when removing and replacing the printer cover, as the cutter mounted on it is very
sharp.
• Install the register in a location not subject to direct sunlight, unusual temperature changes,
high humidity or splashing water.
Installation in such locations could cause damage to the cabinet and the electronic
components.
• Never install the register in saline areas (e.g.: close to the sea).
Installing the register in such locations could cause component failure with the corrosion.
• Never operate the register with wet hands.
The water could seep into the interior of the register and cause component failure.
• When cleaning the register, use a dry, soft cloth. Never use solvents, such as benzine and/or
thinner.
The use of such chemicals will lead to discoloration or deterioration of the cabinet.
• The register plugs into any standard wall outlet (official (nominal) voltage).
Other electrical devices on the same electrical circuit could cause the register to malfunction.
• For protection against data loss, please install two alkaline batteries LR6 ("AA" size) after
initializing the register. When handling the batteries, please observe the following:
Incorrectly using batteries can cause them to burst or leak, possibly damaging the interior of
the register.
• RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
• Be sure that the positive (+) and negative (–) poles of each battery are facing in the
proper direction for installation.
• Never mix batteries of different types.
• Never mix old batteries and new ones.
• Never leave dead batteries in the battery compartment.
• Remove the batteries if you do not plan to use the cash register for long periods.
• Should a battery leak, clean out the battery compartment immediately, taking care to
avoid letting the battery fluid come into direct contact with your skin.
• For battery disposal, follow the corresponding law in your country.
• For complete electrical disconnection, disconnect the main plug.
• Never allow rubber products or a rubber part on a product to be in prolonged contact with this
product.
The case, printer cover, and other parts of the product may dissolve if left in prolonged contact
with rubber.
Part Names and Functions
Front view
Printer cover
Keyboard
Operator
Display
Drawer
Cheque slot
Drawer lock SD card slot
Rear view
Customer display
RS232
Selecting an Operating Mode
Press the key. The following mode screen is
displayed.
Use one of the following ways:
• Move the cursor to the desired option by using the
or key, and press the A key.
• Enter the desired option number by using a
numeric key, and press the A key.
You can select the following function.
OP XZ mode:
This mode allows clerks to take X or Z reports on
their sales information.
OFF mode:
This mode locks all operations of the register. When
you select this mode, the window will disappear.
Pressing any key turns the register ON.
VOID mode:
This mode allows correction after finalizing a
transaction.
X1/Z1 mode:
This mode is used to take various daily total reports
(X1/Z1 reports).
X2/Z2 mode:
This mode is used to take various weekly or monthly
reports (X2/Z2 reports).
PGM mode:
This mode is used to program various items.
SD CARD mode:
This mode allows you to save and load the data of
your register to and from the SD card.
When you want to enter the REG mode,
D
simply press the key.
Customer display (Pop-up type)
ELECTRONIC CASH REGISTER
Thank you very much for your purchase of the SHARP Electronic Cash Register, Model
XE-A177.
Please read this manual carefully before operating your machine in order to gain full
understanding of functions and features.
Please keep this manual for future reference. It will help you if you encounter any
operational problems.
Further details can be freely downloaded from the URL:
- The United Kingdom and Republic of Ireland: www.sharp-pos.co.uk
- Netherlands and Belgium and Luxemburg: www.sharp.nl
- Sweden: www.sharp.se
See "Getting Started"
Keyboard Layout
The following are used as control keys for text programming:
: This key toggles the double-size character mode and the normal-size character mode.
W
: You can enter an upper-case letter by using this key.
H
: Moves the cursor.
: Deletes a character or figure in the cursor position.
D
: You can lock the upper-case letter mode once the this key is pressed.
: This key toggles the text input mode, Alphabet (A),European character (Ä), numeral (1), and symbol ( ).
MODEL
XE-A177
Basic User Manual
16E TINSE2663BSZ1
For Easy Set-up,
EN
Printed in Thailand
