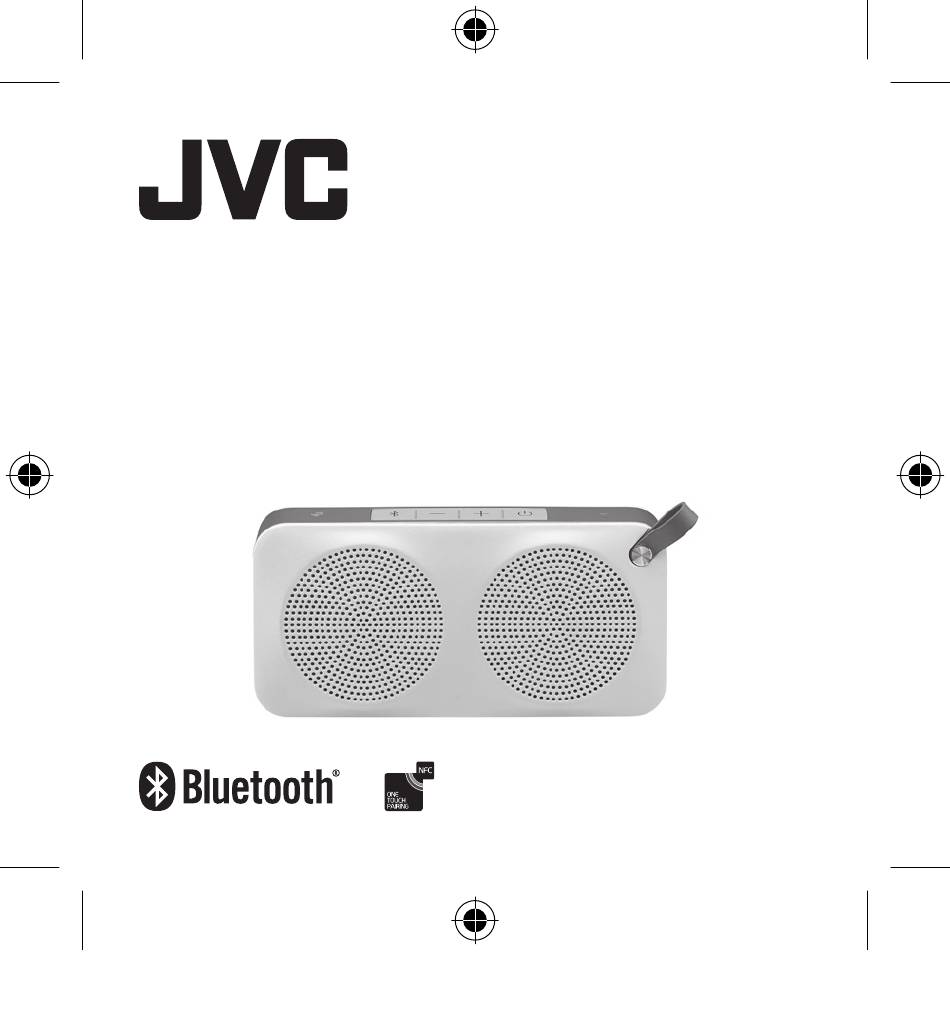

- Page 1 Instruction Manual Portable Wireless Speaker with NFC One-Touch Pairing SP-AD90-B / SP-AD90-W -AD90-B_W_IB_150416_Annie.indd 1 21/4/15 下午5:...
- Page 2 -AD90-B_W_IB_150416_Annie.indd 2 21/4/15 下午5:...
-
Page 3: Table Of Contents
Contents Safety Warnings ................5 Unpacking ..................8 Product Overview ................9 Front View......................9 Top View ......................10 Right Side View .....................11 Charging the Speaker ..............12 Battery Life .....................13 When the Battery is Almost Empty ............14 Connection ................... 14 Using the AUX Connection ..............14 General Operation ............... - Page 4 Listening to Music ............... 18 Bluetooth® Mode ..................18 AUX Mode .......................18 Hands-free Calling ............... 19 Making a Call ....................19 Redial ........................20 End Call ......................20 Receiving a Call ....................20 Reject an Incoming Call ................20 Maintenance ................21 Hints and Tips................22 Product Fiche and Specifications ..........
-
Page 5: Safety Warnings
Safety Warnings • Read all the instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party make sure to include this manual. Damage • Please inspect the unit for damage after unpacking. • Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off and consult your dealer. - Page 6 Naked Flames • Never place any type of candle or naked flame on the top of or near the unit. Moisture • To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
- Page 7 Service • To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel. • Do not open any fixed covers as this may expose dangerous voltages.
-
Page 8: Unpacking
Thank you for purchasing your new JVC Bluetooth® Speaker. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 9: Product Overview
Product Overview Front View 1. Hand Strap A hand strap is designed for easy carrying. The hand strap is not for hanging the unit. 2. Speaker -AD90-B_W_IB_150416_Annie.indd 9 21/4/15 下午5:... -
Page 10: Top View
Top View 1. NFC (Near Field Communication) Sensor Button • Activate the pairing function in Bluetooth® mode or disconnect the existing paired Bluetooth® device. • Play / pause / resume playback in Bluetooth® mode. • Mute the unit or resume the sound in AUX mode. • Control various call functions in Phone Calls mode. -
Page 11: Right Side View
Right Side View 1. Jack Cover 2. AUX Socket Connect a music player, etc. to this socket by using an supplied Stereo Audio Cable. 3. RESET Button Press the button with a pointing object, such as a pin, to reset the unit. -
Page 12: Charging The Speaker
Charging the Speaker The unit has a built-in rechargeable battery, which should be charged before using the speaker for the first time. The battery is charged automatically whenever the unit is connected to a computer or a USB charging device. Computer USB to Micro USB Cable (included) -
Page 13: Battery Life
1. Open the jack cover of the speaker. 2. Connect the supplied micro-USB cable to the speaker, and then connect the other end to a computer. 3. The light of the button will flash during charging. The light will go off automatically after fully charge. • Use the supplied micro-USB cable only, and connect directly to a computer. -
Page 14: When The Battery Is Almost Empty
When the Battery is Almost Empty The speaker will voice “Low battery, please connect to charger” and the light of the button will flash. When the battery becomes empty, the speaker turns off automatically. Connection Using the AUX Connection Use the supplied 3.5mm to 3.5mm stereo audio cable to connect the headphone socket of an audio device and the AUX socket of the unit. -
Page 15: General Operation
General Operation Powering ON/OFF • Press Button to switch on the unit. You will hear a greeting message from the unit. • Press and hold Button to switch off the unit. Automatic Power Off Function If the speaker is left in any of the following conditions for more than approx 15 minutes, it turns off automatically. -
Page 16: Bluetooth® Operation
1. Activate your Bluetooth® device and select the search mode. “SP-AD90-B” or “SP-AD90-W”will appear on your Bluetooth® device list. 2. Select “SP-AD90-B” or “SP-AD90-W” and enter “0000” for the password if necessary. If connect successful, the light of button will light up and the unit will voice “Connected”. -
Page 17: Nfc (Near Field Communication) Operation
• The operational range between the unit and the device is approximately 10 metres. Any obstacle between the device and the unit can reduce operational range. • Before connecting a Bluetooth® device to the unit, ensure you know the device’s capabilities. • Compatibility with all Bluetooth® devices is not guaranteed. • Keep this player away from other electronic devices that may cause interference. -
Page 18: Listening To Music
Listening to Music Bluetooth® Mode You can enjoy listening to music and basic remote control operation of a Bluetooth® device via a Bluetooth® connection. The Bluetooth® device is required to support the following Bluetooth® profiles. • A2DP (Advanced Audio Distribution Profile): you are enable to enjoy high-quality audio content wirelessly. -
Page 19: Hands-Free Calling
Hands-free Calling You can enjoy a hands-free call with a Bluetooth® smartphone or mobile phone that supports the Bluetooth® profile HFP (Hands-free Profile) or HSP (Headset Profile), via a Bluetooth® connection. Call functions are only applicable if mobile phone is paired and connected with the speaker and both are switched on. -
Page 20: Redial
Redial Press button twice rapidly to redial the last call. End Call Press button on the speaker to hang up the phone. You can also end the call from your phone. Receiving a Call When an incoming call arrives, a ring tone will be heard via the speaker. -
Page 21: Maintenance
Maintenance Ensure the unit is fully removed the cables from the unit before cleaning. • To clean the unit, wipe the case with a slightly moist, lint-free cloth. • Do not use any cleaning fluids containing alcohol, ammonia or abrasives. • Do not spray aerosol at or near the unit. -
Page 22: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. If you require additional assistance, • for UK, please call our UK Call Centre on 0344 561 1234. • for Ireland, please call our Ireland Call Center on 1 890 818 575. - Page 23 Problem Solution I cannot find • Ensure that the unit is switched on. “SP-AD90-B” or • Ensure that the Bluetooth® function is “SP-AD90-W” on activated on your Bluetooth® device. my Bluetooth® • The unit has a Bluetooth® function that device.
- Page 24 Problem Solution No Sound in • Ensure the audio cable is properly AUX mode. connected. The unit does not • The unit may freeze up during use. Switch respond when the unit off and then on again to reset pressing any the unit.
-
Page 25: Product Fiche And Specifications
Product Fiche and Specifications Brand Model SP-AD90-B (Black) / SP-AD90-W (White) Speaker 4Ω Frequency Response 100Hz-20kHz (±3dB) Power Amplifier Class D @ 3W × 2CH < 1% >75dB(A) Sound Pressure Level 83dB± 3dB (500mV@1M) Charging Input DC 5V, 1A(Micro USB) -
Page 26: Others Information And Licences
Others Information and Licences For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call UK: 0344 561 1234 Ireland: 1890 818 575. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. - Page 27 The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
- Page 28 For Help and Support Call UK: 0344 561 1234 Ireland: 1890 818 575 The product is distributed and warranted exclusive by DSG Retail Ltd. “JVC” is the trademark of JVC KENWOOD Corporation, used by DSG Retail Ltd. under license. (IB-SP-AD50-B_W-150416V1) -AD90-B_W_IB_150416_Annie.indd 28...
