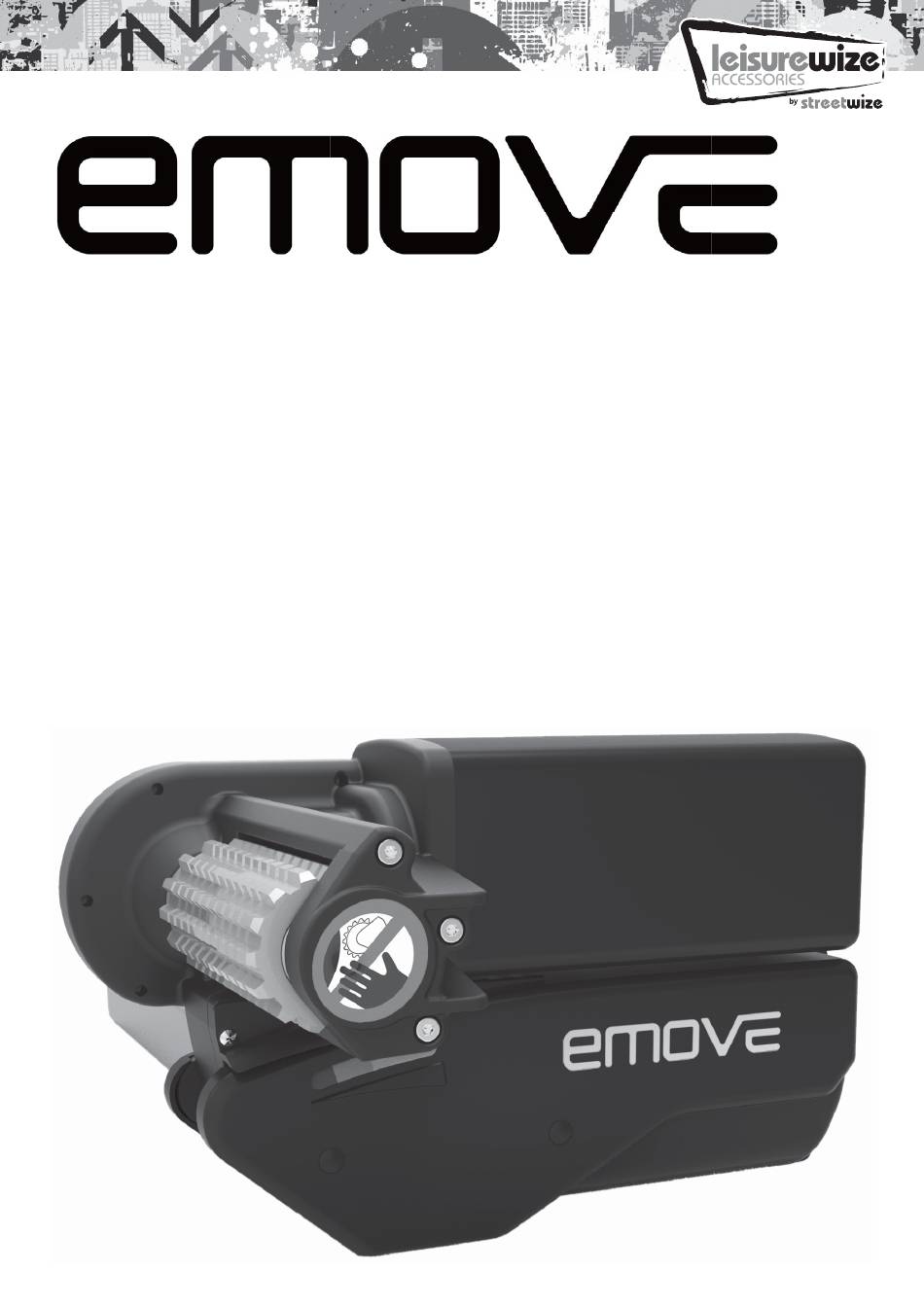

- Page 1 EM305 Caravan Manoeuvring System...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Package contents (Parts list) Introduction Intended use Specifications Installation - safety guidelines Installation - mechanical components Installation - electrical/electronic components Installation - twin axle Operation - safety guidelines Operation - motor units Operation - remote control handset Operation - electronic control unit Operation - getting started Operation - hitching and unhitching... -
Page 4: Introduction
INTRODUCTION Congratulations on choosing the emove EM305 caravan manoeuvring system. This has been produced according to very high standards and has undergone careful quality control procedures. Simply by using the remote control handset you can move your caravan effortlessly into any position required within operating guidelines. -
Page 5: Installation - Mechanical Components
Check the minimal installation dimensions of the manoeuvring system based on figure 14. Only use adapters and accessories that are supplied or recommended by the manufacturer. Check that the caravan is disconnected from the battery supply and the mains electrical supply. Check that the tyres are not over worn and do have the same size and design (fitting to new or nearly new tyres is the best option). -
Page 6: Installation - Electrical/Electronic Components
Adequate ground clearance: Please notice that the min. distance between the lowest line of motors and ground is 110mm, no matter what kinds chassis or install situation. Make sure that the main cross bar (3) is positioned in the middle of the caravan (the centre of the bar is marked). - Page 7 Table. A Table. B FRONT OF AXLE FITTING REAR OF AXLE FITTING (4,6mm cables) (4,6mm cables) Motor unit A Positive (+) cable to terminal 4 Motor A Positive (+) cable to terminal 1 Motor unit A Negative (-) cable to terminal 3 Motor A Negative (-) cable to terminal 2 Motor unit B Positive (+) cable to terminal 2 Motor B Positive (+) cable to terminal 3...
-
Page 8: Installation Twin Axle
(out of reach of children or other unauthorised people). Installation of the caravan manoeuvring system is now complete. INSTALLATION TWIN AXLE This manual describes the general installation and use of the manoeuvring system for single axle caravans. When you use the manoeuvring system for a twin axle caravan, please check the following: Permissible overall weight twin axle (2 motors) 2000kg (1750kg on 18% gradient) Permissible overall weight twin axle (4 motors) -
Page 9: Operation - Motor Units
When operating the system, ensure that no hairs, fingers or other body parts, clothing or any other objects carried on the body can become trapped by moving or rotating parts (e.g. drive rollers). In the event of malfunctions, pull on the handbrake immediately and turn off the main isolation power switch. -
Page 10: Operation - Remote Control Handset
Traction indicator label: The yellow-green-red traction indicator label (Fig. 11A), on the side of each motor unit indicates if the roller is depressing the tyre sufficiently to provide adequate traction. If the pointer is in the yellow area Rollers are not touching or depressing the tyre sufficiently. If the pointer is in the green area Rollers should be connecting correctly to the tyre (margin of 15mm). -
Page 11: Operation - Electronic Control Unit
The remote hand set switches off: After 3 minutes, if no button is pressed: After 2 minutes the buzzer will beep for 5 times with a repetition after 3 minutes. Than the system switches in the modes. After 6 minutes, if one of the movement buttons is permanently held down: After 5 minutes the buzzer will beep for 5 times with a repetition after 6 minutes. -
Page 12: Operation - Getting Started
Check the installation in accordance with the installation instructions and ensure that the drive rollers are not applied. Check that the battery is properly connected, check the condition of the battery and that a voltage of 12 V is present at the control unit. Please ensure that the battery isolation switch is on. -
Page 13: Operation - Hitching And Unhitching
After the stage the caravan moves according one fixed speed. The speed can increase a little when going downhill and decrease a little when going uphill. TIP: The manoeuvring system is more efficient when reversing the caravan up an incline. When you are ready with manoeuvring you need to secure the handbrake. - Page 14 Unit fails to operate, does not function at all: Make sure that the battery power isolation switch (29) is turned on. Check the cable-connection between the caravan battery and the control unit. Check the fuse (80A) in the red positive battery cable (Fig. 6). If the fuse is blown, it must be replaced with a fuse of the same value (80A).
- Page 20 Five Year Warranty Your emove caravan mover is covered by a five years’ parts and labour warranty (when registered). You are covered against reasonable use of your caravan mover for the period of five years. It does not cover against misuse or accidental damage of the e caravan mover.
