30

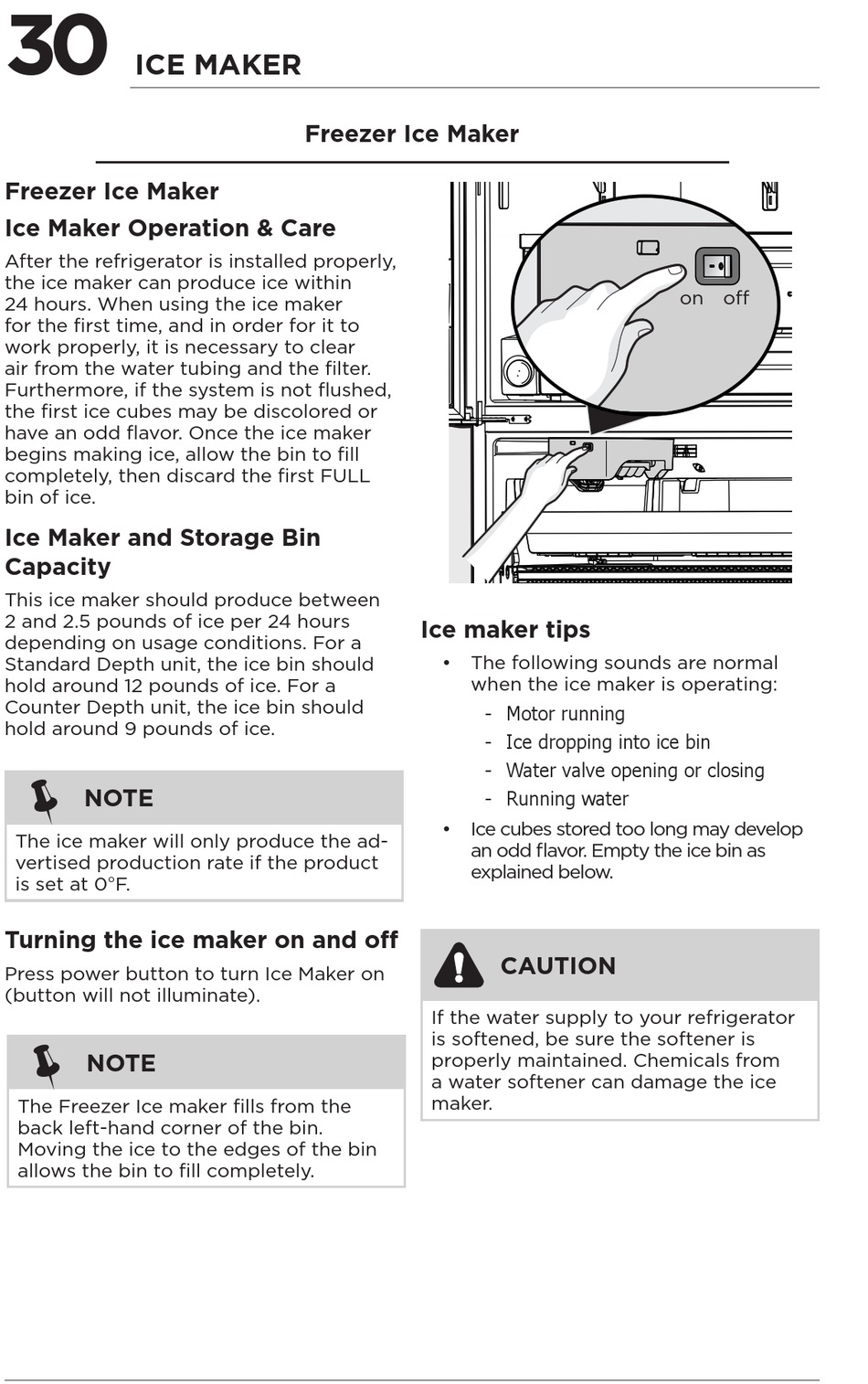

ICE MAKER
Freezer Ice Maker
Ice Maker Operation & Care
After the refrigerator is installed properly,
the ice maker can produce ice within
24 hours. When using the ice maker
for the first time, and in order for it to
work properly, it is necessary to clear
air from the water tubing and the filter.
Furthermore, if the system is not flushed,
the first ice cubes may be discolored or
have an odd flavor. Once the ice maker
begins making ice, allow the bin to fill
completely, then discard the first FULL
bin of ice.
Ice Maker and Storage Bin
Capacity
This ice maker should produce between
2 and 2.5 pounds of ice per 24 hours
depending on usage conditions. For a
Standard Depth unit, the ice bin should
hold around 12 pounds of ice. For a
Counter Depth unit, the ice bin should
hold around 9 pounds of ice.
NOTE
The ice maker will only produce the ad-
vertised production rate if the product
is set at 0°F.
Turning the ice maker on and off
Press power button to turn Ice Maker on
(button will not illuminate).
NOTE
The Freezer Ice maker fills from the
back left-hand corner of the bin.
Moving the ice to the edges of the bin
allows the bin to fill completely.
Freezer Ice Maker
Ice maker tips
• The following sounds are normal
• Ice cubes stored too long may develop
If the water supply to your refrigerator
is softened, be sure the softener is
properly maintained. Chemicals from
a water softener can damage the ice
maker.
when the ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
an odd flavor. Empty the ice bin as
explained below.
CAUTION
on off
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the GRFS2853AF and is the answer not in the manual?
Questions and answers
Our refrigerator is one month old. We are unable to press the cube button to dispense ice cubes. It will allow us to press crushed iced and the water dispenser are both working. Please advise as to how this can be corrected.
To fix the ice cube dispenser on your Frigidaire GRFS2853AF refrigerator, follow these steps:
1. Turn off the ice maker.
2. Remove the ice bin: Lift it upward, then pull it straight out.
3. Check for jammed ice: If ice cubes have melted and refrozen together (e.g., after a power failure or infrequent use), they may be jamming the dispenser. Empty the bin if needed.
4. Clean the ice bin: Use mild detergent and rinse with clean water. Do not use harsh or abrasive cleaners.
5. Allow the ice bin to dry completely before placing it back into the freezer.
6. Reinstall the ice bin correctly: Ensure the auger aligns properly; otherwise, the dispenser may not work, and the refrigerator door may not close properly.
7. Turn the ice maker back on.
8. Check the ice chute: If an ice cube is jammed in the flapper when "Cube" or "Crush" is selected, remove the cube to reset the alarm and restore functionality.
If the problem persists, ensure the refrigerator is properly installed and leveled.
This answer is automatically generated
How do I take the glasa shelf out to clean ut
To remove the glass shelf from a Frigidaire GRFS2853AF refrigerator for cleaning:
1. Remove all food from the shelf.
2. Handle with care, as tempered glass shelves can break if nicked, scratched, or exposed to sudden temperature changes.
3. Allow the glass to stabilize to room temperature before cleaning.
4. Do not wash in a dishwasher.
5. Remove the air seal by pushing it straight back.
6. Lift and slide the shelf out carefully from its mounting brackets.
Be cautious while handling the glass to avoid injury or damage.
This answer is automatically generated
how to turn off freezer ice makermon Frigidaire model GRFS2853AF3
To turn off the ice maker on the Frigidaire GRFS2853AF, press and hold the ice maker button on the control panel for 3 seconds. When the indicator light is off, the ice maker is in the OFF state and will stop making ice. Ice dispensing can continue as long as there is ice in the bucket.
This answer is automatically generated
How can I get a liquid spill cleaned underneath the glass shelf and frame. Picture to follow
To clean a liquid spill underneath the glass shelf and frame of a Frigidaire GRFS2853AF refrigerator, follow these steps:
1. Remove all food from the shelf.
2. Lift the front edge of the shelf up and pull it out.
3. Clean the shelf using soap and water. Allow the glass to warm to room temperature before immersing it in warm water. You can also use a glass cleaner or mild liquid spray.
4. Wipe the frame with a soft cloth and soap and water.
5. Dry the shelf and frame completely before reinstalling.
6. Reinsert the shelf by inserting the mounting bracket hooks into the desired support slots, then lower and lock it into position.
This answer is automatically generated
Water dispenser is not coming straight down , it's more to the left . How do I redirect it
To redirect the water dispenser on a Frigidaire GRFS2853AF to come straight down, you can pull the water tube out of the hinges and reposition it. Ensure the tube is not kinked and comes out straight from the connection point. Use care when pulling and adjusting the tube to avoid damage.
This answer is automatically generated
SB mode turn off
To turn off Sabbath Mode (SB mode) on the Frigidaire GRFS2853AF, use the buttons on the control panel to manually deactivate it.
This answer is automatically generated
How to turn ice make on and off
To turn the ice maker on or off for the Frigidaire GRFS2853AF:
1. Refrigerator Ice Maker: Press and hold the Ice Maker On/Off button on the display for 3 seconds.
2. Freezer Ice Maker: Use the toggle switch on the (-) side to turn it on or off.
Make sure the display is awake before using the controls. If the display is in sleep mode, press any icon to wake it up.
This answer is automatically generated
Display on refrigerator disappeared
The display on the Frigidaire GRFS2853AF refrigerator may disappear because the temperature system has detected a performance problem. The electronic control may require service, and error messages or number codes may flash on the digital display.
This answer is automatically generated
