Page 10: Component Id
Top Components Keys Component Function keys (12)* Windows logo key Hardware and Software Guide Component ID Description Perform system and application tasks. When combined with fn, function keys perform additional tasks as hotkeys. Displays the Microsoft® Windows® Start menu. (Continued) 1–1...
Page 11 Component ID Component fn key* Embedded numeric keypad keys (15) Windows applications key *For more information about hotkeys, refer to “Keyboard and TouchPad.” 1–2 Description Combines with other keys to perform system tasks as hotkeys. For example, pressing fn+f7 decreases screen brightness. Can be used like the keys on an external numeric keypad.
Page 12: Touchpad
TouchPad Component TouchPad* TouchPad horizontal scroll zone* Left TouchPad button* Right TouchPad button* TouchPad vertical scroll zone* *This table describes default settings. For information about changing the functions of these TouchPad components, refer to Preferences” Chapter 3, “Keyboard and TouchPad.” Hardware and Software Guide Description Moves the pointer.
Page 13: Power Controls
Component ID Power Controls Component Power/standby button* Display switch* *This table describes default settings. For information about changing the function of the display switch or power/standby button, refer to Other Power Preferences” 1–4 Description When the notebook is Off, press to start the notebook. On, briefly press to initiate hibernation.
Page 14: Buttons
Buttons Component Wireless button (select models only) Volume down button Volume up button Volume mute button Hardware and Software Guide Description Turns the wireless functionality on or off, but does not create a wireless connection. To establish a wireless connection, a wireless network must already be set up.
Page 15: Lights
Component ID Lights Component Wireless light (select models only) Power/standby light Mute light Num lock light Caps lock light 1–6 Description On: One or more internal wireless devices have been turned on. To establish a wireless connection, a wireless network must already be set up.
Page 16: Wireless Antennae (Select Models Only)
Wireless Antennae (Select Models Only) Component Antennae (2)* *The antennae are not visible from the outside of the notebook. For optimal transmission, keep the areas immediately around the antennae free from obstructions Hardware and Software Guide Description Send and receive wireless device signals. Å...
Page 17: Front Components
Component ID Front Components Speakers and Display Release Button Component Stereo speakers (2) Display release button 1–8 Description Produce stereo sound. Opens the notebook. Hardware and Software Guide...
Page 18: Lights
Lights Component Power/standby light Battery light IDE (Integrated Drive Electronics) drive light Hardware and Software Guide Description On: Notebook is turned on. Blinking: Notebook is in standby. Off: Notebook is off or in hibernation. On: The battery pack is charging. Blinking: The battery pack has reached a low-battery condition.
Page 19: Left-Side Components
Component ID Left-Side Components Ports and Jacks Depending on your notebook model, component locations may vary. Refer to the following illustrations. Component Power connector RJ-11 (modem) jack RJ-45 (network) jack 1–10 Description Connects the AC adapter cable. Connects the modem cable. Connects a network cable (not included).
Page 20 Component Expansion port 2 (select models only) USB ports 1394 port (4-pin) External monitor port S-Video-out jack Audio-in (microphone) jack Audio-out (headphone) jack Hardware and Software Guide Description Connects the notebook to an optional docking device. The notebook has only one expansion port.
Page 21: Media And Memory Card Slots
Component ID Media and Memory Card Slots Depending on your notebook model, component locations may vary. Refer to the following illustrations. Component Memory Reader (select models only) PC Card slot ExpressCard slot (select models only) 1–12 Description Supports the following optional digital cards: SD (Secure Digital) Memory Card, SD I/O Card,...
Page 22: Right-Side Components
Right-Side Components Depending on your notebook model, component locations may vary. Refer to the following illustrations. Component Optical drive Audio-out (headphone) jack Audio-in (microphone) jack USB ports Hardware and Software Guide Description Supports an optical disc, such as a CD or DVD.
Page 23 Component ID Component Monitor port S-Video-out jack Security cable slot 1–14 Description Connects an optional VGA monitor or projector. Connects the video function of an optional S-Video device, such as a television, VCR, or video capture card. Attaches an optional security cable to the notebook.
Page 24: Bottom Components
Bottom Components Mini PCI and Memory Module Compartment Component Mini PCI and memory module compartment Hardware and Software Guide Description Holds an optional wireless LAN device (select models only). Ä To prevent an unresponsive system and the display of a warning message, install only a Mini PCI device authorized for use in your notebook by the governmental agency that regulates wireless devices in...
Page 25: Bays, Battery Latch And Vents
Component ID Bays, Battery Latch and Vents Component Hard drive bay Vents (4) Battery bay Battery pack release latch 1–16 Description Holds the internal hard drive. Provide airflow to cool internal components. Ä To prevent overheating, do not obstruct vents. Do not allow a hard surface, such as a printer, or a soft surface, such as pillows or thick rugs or clothing, to block airflow.
Page 26: Additional Hardware Components
Additional Hardware Components The following illustration and table identify and describe the additional equipment that is included with the notebook. Component AC adapter Power cord* Battery pack Modem cable* Country-specific modem adapter (included by region as required)* *Power cords, modem cables, and modem adapters vary in appearance by region and country.
Page 27: Additional Components
Component ID Additional Components Optical Discs Software on optical discs, such as CDs or DVDs, is included with all notebook models. The software packaged in the “Required for Setup” bag is not preinstalled on your notebook. Depending on how you want to use your notebook, you might want to install some or all of these applications.
Page 28 Component ID Modem Approval label—Provides regulatory information about the modem and lists the agency approval markings required by some of the countries in which the modem has been approved for use. You might need this information when traveling internationally. The Modem Approval label is affixed to the inside of the Mini PCI and memory module compartment cover.
Page 29: Power
Å WARNING: To reduce the risk of electric shock or damage to your equipment: Plug the power cord into an AC outlet that is easily accessible at all times. Disconnect power from the notebook by unplugging the power cord from the AC outlet (not by unplugging the power cord from the notebook).
Page 30: Power Sources
Power Power Sources The notebook can run on internal or external AC power. The following table indicates the best power sources for common tasks. Task Work in most software applications Charge or calibrate a battery pack in the notebook Install or modify system software or write to a disc 2–2 Recommended Power Source...
Page 31: Standby And Hibernation
Standby and Hibernation Standby and hibernation are energy-saving features that conserve power and reduce startup time. They can be initiated by you or by the system. For details about when to use each setting, refer to “Initiating Standby, Hibernation or Shutdown,” chapter.
Page 32: Hibernation
Power Hibernation Ä CAUTION: If the configuration of the notebook is changed during hibernation, resuming from hibernation may not be possible. When the notebook is in hibernation: Do not connect or disconnect the notebook from a docking device. Do not add or remove memory modules. Do not insert or remove any hard drives.
Page 33: Initiating Standby, Hibernation Or Shutdown
Initiating Standby, Hibernation or Shutdown The following sections explain when to initiate standby or hibernation and when to shut down your notebook. When You Leave Your Work Initiating standby clears the screen and uses less power than leaving the notebook on. Your work returns instantly to the screen when you resume from standby.
Page 34: Drive Media
Power When Using Infrared Communication or Drive Media Ä CAUTION: Do not initiate standby or hibernation while using drive media. Doing so may result in possible video and audio degradation and loss of audio or video playback functionality. Standby and hibernation interfere with the use of infrared and Bluetooth communication and drive media.
Page 35: Default Power Settings
Default Power Settings The following tables describe the factory power settings on the notebook. You can change many of these settings according to your preference. For more information on changing power settings, refer to Turning the Notebook On or Off Task Turn on the notebook.
Page 36: Initiating Or Resuming From Standby
Power Initiating or Resuming from Standby Task Procedure Initiate standby With the notebook on, use one of the following procedures: Allow the system No action is required. The system to initiate initiates standby standby. Resume from Use one of the following standby.
Page 37: Initiating Or Restoring From Hibernation
Initiating or Restoring from Hibernation Task Procedure Initiate With the notebook on, use one of hibernation. the following procedures: Allow the system No action is required. If the to initiate notebook is running on battery hibernation power and hibernation is enabled, the system initiates hibernation after 30 minutes of notebook inactivity or when the...
Page 38: Emergency Shutdown Procedures
Power Emergency Shutdown Procedures Ä CAUTION: Emergency shutdown procedures result in the loss of unsaved data. If the notebook is unresponsive and you are unable to use normal shutdown procedures, try the following emergency procedures in the sequence provided: Press ctrl+alt+delete.
Page 39: Setting A Standby Password
Setting a Standby Password You can add a security feature that prompts you for your Microsoft® Windows® user password when the notebook resumes from standby. To set a password prompt: 1. Select Start > Control Panel > Performance and Maintenance > Power Options > Advanced tab. 2.
Page 40 Power To change the function of the power/standby button, the hotkey, or the display switch: 1. Select Start > Control Panel > Performance and Maintenance > Power Options > Advanced tab. To change the function of the display switch when you close the display, select a function from the drop-down list for When I close the lid of my portable computer.
Page 41: Processor Performance Controls (Select Models Only)
Processor Performance Controls (Select Models Only) On select notebook models, Windows XP supports software that enables you to control processor performance. The central processing unit (CPU) speed can be set for optimal performance or for optimal power conservation. For example, the software can be set to trigger an automatic change in processor speed when the power source changes from external power to battery pack power, or when the notebook use changes between active and idle.
Page 42 The following table describes the processor performance on external and battery power for the available power schemes. Power Scheme Home/Office Desk Portable/Laptop Presentation Always On Minimal Power Management Max Battery 2–14...
Page 43: Battery Pack
Battery Pack Charging a Battery Pack To prolong battery life and optimize the accuracy of battery charge displays: If you are charging a new battery pack: Charge the battery pack while the notebook is connected to external power through the AC adapter. When you charge the battery pack, charge it fully.
Page 44: Monitoring The Charge In A Battery Pack
Power Monitoring the Charge in a Battery Pack Obtaining Accurate Charge Reports To increase the accuracy of battery charge reports: Allow a battery pack to discharge to about 10 percent of a full charge through normal use before charging it. When you charge a battery pack, charge it fully.
Page 45: Low-Battery Conditions
Power Meter displays battery status in both percentage and time: The percentage indicates the amount of charge remaining in the battery pack. The time indicates the approximate running time remaining on the battery pack if the battery pack continues to provide power at the current level.
Page 46 Power Resolving Low-Battery Conditions Ä CAUTION: If the notebook has reached a critical low-battery condition and has begun to initiate hibernation, do not restore power until the power/standby light turns off. To resolve a low-battery condition: If external power is available, connect the notebook to the external power source.
Page 47: Calibrating A Battery Pack
Calibrating a Battery Pack When to Calibrate Even if a battery pack is heavily used, calibration should be necessary only once a month. You do not have to calibrate a new battery pack before first use. Calibration does not usually increase battery run time, but it can increase the accuracy of battery charge displays, especially under the following conditions: When the battery pack has been unused for one month...
Page 48: How To Calibrate
Power How to Calibrate To calibrate a battery pack, you must fully charge, fully discharge, and then fully recharge the battery pack. Charging the Battery Pack Charge the battery pack while the notebook is on. To charge the battery pack: 1.
Page 49 The system will not decrease hard drive speed while the notebook is idle. System-initiated standby will not occur. To fully discharge the battery pack: 1. Disable hibernation. To disable hibernation: a. Select Start > Control Panel > Performance and Maintenance > Power Options > Hibernate tab. b.
Page 50: Conserving Battery Pack Power
Power Recharging the Battery Pack Ä CAUTION: After calibrating the battery pack, reenable hibernation. Failure to reenable hibernation may result in a complete battery drain and potential data loss. To reenable hibernation: 1. Select Start > Settings > Control Panel > Performance and Maintenance >...
Page 51: Conserving Power As You Work
Conserving Power as You Work To conserve power as you work: Prevent devices you are not using from drawing power from the notebook. For example: Turn off wireless connections and exit modem applications when you are not using them. Disconnect any external devices from the notebook that are not plugged into an external power source.
Page 52: Replacing A Battery Pack
Power Replacing a Battery Pack Ä CAUTION: To prevent loss of work when removing a battery pack that is the only power source, turn off the notebook or initiate hibernation. (If you initiate hibernation, do not begin the following procedure until the power/standby lights are turned off, indicating that hibernation is complete.) Removing a Battery Pack...
Page 53: Inserting A Battery Pack
Power Inserting a Battery Pack To insert a battery pack: 1. Turn the notebook upside down. 2. Insert the battery pack 1 into the battery bay and rotate it 2 until it is seated. Hardware and Software Guide 2–25...
Page 54: Storing A Battery Pack
Power Storing a Battery Pack Ä CAUTION: To prevent damage to a battery pack, do not expose it to high temperatures for extended periods of time. If a notebook will be unused and unplugged for more than 2 weeks, remove any battery packs and store them separately. High temperatures accelerate the self-discharge rate of a stored battery pack.
Page 55: Disposing Of A Used Battery Pack
In Europe, dispose of or recycle battery packs by using the public collection system or by returning them to HP, your service partner, or their agents. Hardware and Software Guide Power 2–27...
Page 56: Keyboard And Touchpad
Keyboard and TouchPad TouchPad TouchPad Components Component TouchPad* TouchPad horizontal scroll zone Hardware and Software Guide Description Moves the pointer. Scrolls left or right. (Continued) 3–1...
Page 57 Keyboard and TouchPad Component Left TouchPad button* Right TouchPad button TouchPad vertical scroll zone* This table describes default settings. For information about changing the functions of these TouchPad components, refer to Preferences,” later in this chapter. 3–2 Description Functions like the left button on an external mouse.
Page 58: Using The Touchpad
Using the TouchPad In Windows the TouchPad provides the navigation, selection, and scroll functions of an optional external mouse. To move the pointer, slide your finger across the TouchPad surface in the direction you want to move the pointer. To execute the click functions of the left or right button on an external mouse, press the left or right TouchPad button.
Page 59: Setting Touchpad Preferences
Keyboard and TouchPad Setting TouchPad Preferences Mouse Properties in Windows enables you to customize settings for pointing devices, including: Enabling or disabling a pointing device (enabled by default). TouchPad tapping, which enables you to tap the TouchPad once to select an object or twice to double-click an object (enabled by default).
Page 60: Hotkeys
Hotkeys Identifying Hotkeys Hotkeys are preset combinations of the following keys: key 5, and enter The icons on the hotkey functions. The functions of all hotkeys are described in the following sections. Hardware and Software Guide key 1, function keys 3, key 6.
Page 61: Hotkey Quick Reference
Keyboard and TouchPad Hotkey Quick Reference The following table identifies the default hotkey functions. The function of the instructions, refer to Chapter 2, “Power.” Default Function Opens Help and Support Center. Opens print options window. Opens default Internet browser. Switches the image among displays. Initiates standby.
Page 62: Hotkey Procedures
Hotkey Procedures Using Hotkeys on the Internal Keyboard To use a hotkey command on the notebook keyboard, use either of the following procedures: Briefly press the hotkey command. Press and hold down hotkey command, and then release both keys at the same time.
Page 63 Keyboard and TouchPad Checkups for notebook functionality. Automated and interactive troubleshooting, repair solutions, and system recovery procedures. Links to Compaq support specialists. In Windows, you can also access the Help and Support Center by selecting Start > Help and Support. Open Print Window (fn+f2) hotkey opens the print options window of the active fn+f2...
Page 64 Most external monitors receive video information from the notebook using the external VGA video standard. The hotkey can also toggle images among other devices receiving video information from the notebook. The following video transmission types, with examples of devices that use them, are supported by the LCD (notebook display) External VGA (most external monitors) S-Video (televisions, camcorders, VCRs, and video capture...
Page 65 Keyboard and TouchPad The function of the you can set the standby. In all Windows operating system windows, references to the sleep button apply to the For information about changing the function of the refer to “Setting Other Power Preferences” “Power.”...
Page 66 Decrease Brightness (fn+f7) hotkey decreases the brightness of the notebook screen. fn+f7 The longer you hold down the dims. Decreasing screen brightness conserves power. To increase screen brightness, press the Increase Brightness (fn+f8) hotkey increases the brightness of the notebook fn+f8 screen.
Page 67 Keyboard and TouchPad Play, Pause or Resume an Audio CD or a DVD (fn+f9) If the audio CD or the DVD is not playing, press the hotkey to begin or resume the play. If the audio CD or the DVD is playing, press the to pause the play.
Page 68 Navigate Back (fn+backspace) In Windows, the current application. It has the same function as the Windows hotkey. Select an Item on the Screen (fn+enter) fn+enter hotkey once to make a selection. Display System Information (fn+esc) hotkey displays information about system hardware fn+esc components and software version numbers.
Page 69: Keypads
Keyboard and TouchPad Keypads Using an Embedded Numeric Keypad The 15 keys of the embedded numeric keypad 1 can be used like the keys on an external numeric keypad. When the embedded numeric keypad is turned on, each key on the keypad performs the function indicated by the icon in the upper-right corner of the key.
Page 70: Switching The Functions Of Keypad Keys
Switching the Functions of Keypad Keys You can temporarily switch the functions of an embedded numeric keypad key between its standard function and its keypad function. To use a key on the keypad as a keypad key while the keypad is turned off, press and hold To use a key on the keypad as a standard key while the keypad is turned on: Press and hold...
Page 71 Keyboard and TouchPad Turning Num Lock Mode On and Off As You Work To turn num lock mode on or off on an external numeric keypad as you work, press the not on the notebook. When an external numeric keypad is turned on and is in num lock mode, the num lock light on the notebook is on.
Page 72: Multimedia
Audio Features Adjusting the Volume To adjust volume, use the volume buttons on the notebook. Component Volume down button Volume up button Volume mute button Hardware and Software Guide Multimedia Description Press to decrease volume. Press to increase volume. Press to mute volume. The mute light is turned on.
Page 73: Using The Audio-In (Microphone) Jack
Multimedia You can also adjust volume by using the volume control software available in the Windows operating system and in some Windows multimedia applications. The volume mute button on the notebook overrides all software volume settings. To access the Windows volume controls: »...
Page 74: Connecting The Audio-Out (Headphone) Jack
Connecting the Audio-Out (Headphone) Jack An audio-out jack, sometimes called a headphone jack, connects optional headphones or externally powered stereo speakers. An audio-out jack is also used to connect the audio functions of an audio/video device such as a television or VCR. The notebook is set by default to transmit analog audio signals through the audio-out (headphone) jack.
Page 75: Video Features
Multimedia Video Features Connecting an S-Video Device Connecting the Audio The S-Video-out jack supports video signals only. If you are setting up a configuration that combines audio and video functions, such as playing a DVD movie on your notebook and displaying it on your television, you need a standard 3.5-mm audio cable, available from most computer or electronics retailers.
Page 76: Connecting The Video
Connecting the Video To transmit video signals through the S-Video-out jack, you need a standard S-Video cable, available from most computer or electronics retailers. To connect the S-Video cable: 1. Plug either end of the S-Video cable into the notebook S-Video-out jack, illustrated below.
Page 77: Displaying A Video Image
Multimedia Displaying a Video Image To display a video image, both the notebook and the video device must be turned on. Switch the image between the notebook display and the video device display by repeatedly pressing the hotkey switches the image among the notebook display, fn+f4 any connected displays, and simultaneous display.
Page 78: Observing The Copyright Warning
InterVideo WinDVD Creator Plus—Provides the ability to create, edit, and burn movies to a DVD or video CD. This software is located on the InterVideo WinDVD Creator CD, included with select notebooks. Sonic RecordNow!—Enables you to create copies of data and audio CDs and DVDs, and create personalized audio CDs and DVDs.
Page 79: Installing Software
Multimedia Installing Software To install software included with the notebook from a CD: 1. Connect the notebook to a reliable electrical outlet. 2. Close any open applications. 3. Insert a software CD into the optical drive. If Autorun is enabled an installation wizard is displayed. If Autorun is disabled, select Start >...
Page 80: Changing Dvd Region Settings
Changing DVD Region Settings Ä CAUTION: The region settings on your DVD drive can only be changed 5 times. The region setting you select the fifth time becomes the permanent region setting on the DVD drive. The number of allowable region changes remaining on the drive is displayed in the Remaining Times Until Permanent field in the WinDVD window.
Page 81: Using Windvd
Multimedia Using WinDVD To change the region settings on a drive using WinDVD: 1. Open WinDVD through one of the following methods: Select the WinDVD Player icon in the notification area, at the far right of the taskbar. Select Start > (All) Programs > InterVideo WinDVD > InterVideo WinDVD.
Page 82: Drives
Drives Ä CAUTION: To reduce the risk of critical data loss, initiate standby before you move the notebook or an optional external hard drive from one location to another. To initiate standby, select Start > Turn Off Computer > Standby. For more information on initiating and resuming from standby, refer to Chapter 2, “Power.”...
Page 83: Drive Care
Drives Drive Care Drives are fragile notebook components that must be handled with care. The following cautions apply to all drives. Additional cautions are included with the procedures to which they apply. Ä CAUTION: To prevent loss or damage to the notebook or a drive: Handle a drive carefully.
Page 84: Removing The Primary Hard Drive
Removing the Primary Hard Drive Ä CAUTION: To prevent system lockup and loss of information: Shut down the notebook before removing the hard drive from the hard drive bay. Do not remove the hard drive while the notebook is on, in standby or in hibernation. If you are not sure whether the notebook is in hibernation, turn the notebook on by pressing the power/standby down the notebook through the operating system.
Page 85 Drives 5. Lift the hard drive bay cover 1 and remove it from the notebook 2. 6. Slide the hard drive toward the edge of the notebook to release it 1. 7. Remove the hard drive 2. 5–4 Hardware and Software Guide...
Page 86: Reinstalling The Primary Hard Drive
Drives Reinstalling the Primary Hard Drive To reinstall the primary hard drive: 1. Lower the hard drive into the hard drive bay 1. 2. Slide the hard drive away from the edge of the notebook until it is fully seated 2. Hardware and Software Guide 5–5...
Page 87 Drives 3. Align the tabs on the hard drive cover with the slots on the notebook 1 and press the hard drive cover down until it snaps into place 2. 4. Tighten the screws on the hard drive bay cover. 5–6 Hardware and Software Guide...
Page 88: Removing An Optical Disc (Without Power)
Removing an Optical Disc (Without Power) To remove an optical disc when power is unavailable: 1. Insert the end of a paper clip into the release access in the front bezel of the drive 1. 2. Press gently on the paper clip until the media tray is released, and then pull out the tray until it is fully extended 2.
Page 89: Displaying Optical Disc Contents
Drives Displaying Optical Disc Contents When an optical disc is inserted into a drive and Autorun is enabled, the contents of the disc display on the screen. To display the contents of a disc when Autorun is not enabled: 1. Click Start > Run, and then type where 2.
Page 90: Pc Cards And Expresscards
PC Cards and ExpressCards What Is a PC Card? Ä CAUTION: If you install software or enablers provided by a PC Card manufacturer, you may not be able to use other PC Cards. If you are instructed by the documentation included with your PC Card to install device drivers: Install only the device drivers for your operating system.
Page 91: Inserting A Pc Card
PC Cards and ExpressCards Inserting a PC Card CAUTION: To prevent damage to the connectors: Use minimal pressure when inserting a PC Card into a PC Card slot. Do not move or transport the notebook while a PC Card is inserted. 1.
Page 92 2. Hold the PC Card label-side up with the connector facing the notebook. 3. Gently slide the card into the slot until the card is seated. The operating system will issue a sound to indicate that a device has been detected. Hardware and Software Guide PC Cards and ExpressCards 6–3...
Page 93: Removing A Pc Card
PC Cards and ExpressCards Removing a PC Card Ä CAUTION: To prevent loss of work or an unresponsive system, stop the PC Card before removing it. 1. Stop the PC Card by selecting the Safely Remove Hardware icon in the notification area at the far right of the taskbar, and then selecting the PC Card.
Page 94: What Is An Expresscard
What Is an ExpressCard? The ExpressCard is a next-generation PC Card with higher performance and scalability and is designed to conform to the standard specifications of the PCMCIA. To support a broad range of applications, ExpressCards come in 2 sizes: ExpressCard/34 and ExpressCard/54. The ExpressCard slot on your notebook supports one ExpressCard, which may be either size.
Page 95: Configuring An Expresscard
PC Cards and ExpressCards Configuring an ExpressCard CAUTION: If you install all of the software or any of the enablers provided by an ExpressCard manufacturer, you may not be able to use other ExpressCards. If you are instructed by the documentation included with your ExpressCard to install device drivers: Install only the device drivers for your operating system.
Page 96 PC Cards and ExpressCards 3. Hold the ExpressCard label-side up with the connectors facing the notebook. 4. Gently slide the card into the slot until the card is seated. Hardware and Software Guide 6–7...
Page 97: Removing An Expresscard
PC Cards and ExpressCards Removing an ExpressCard Ä CAUTION: To prevent loss of work or an unresponsive system, stop the ExpressCard before removing it. Stopping an ExpressCard, even if it is not in use, conserves power. 1. Close all applications and complete all activities that are supported by the ExpressCard.
Page 98: Digital Memory Cards (Select Models Only)
Using Digital Media The Memory Reader supports the following digital media formats: Secure Digital (SD) Memory Card (SD Card) Secure Digital Input/Output (SD I/O) MultiMediaCard (MMC) Memory Stick (MS) Memory Stick Pro (MSP) SmartMedia (SM) xD-Picture Card (XD) Digital memory cards provide secure data storage and convenient data sharing.
Page 99: Inserting Digital Cards
Digital Memory Cards (Select Models Only) Inserting Digital Cards Ä CAUTION: To prevent damage to the digital card connectors: Use minimal force when inserting a digital card into a Memory Reader. Do not move or transport the notebook while digital cards are inserted.
Page 100: Removing Digital Cards
Removing Digital Cards To remove a digital card: 1. Complete all activities that are supported by the card (such as a data transfer) and close all applications. 2. To stop a digital card, select the Safely Remove Hardware icon on the taskbar, and then select the digital card. (To display the Safely Remove Hardware icon on the taskbar, click the arrow icon for Show Hidden Icons.) 3.
Page 101: Disabling Or Restarting Digital Cards
Digital Memory Cards (Select Models Only) Disabling or Restarting Digital Cards An inserted digital card uses power even when the card is not in use. Disabling the card conserves power. To disable an inserted digital card: » Select the My Computer icon on the Windows desktop, right-click the drive assigned to the card, and then select Eject.
Page 102: Memory Modules
What Is a Memory Module? Å WARNING: Failure to unplug the power cord and remove all battery packs before installing a memory module can damage the equipment and expose you to the risk of electrical shock. Ä CAUTION: Electrostatic discharge (ESD) can damage electronic components.
Page 103: Replacing A Memory Module
Memory Modules Replacing a Memory Module To replace a memory module: 1. Shut down the notebook. (If you are not sure whether the notebook is off or in hibernation, turn the notebook on by pressing the power/standby button. Then shut down the notebook through the operating system.) 2.
Page 104 7. If there is a memory module in the memory module slot, remove it: a. Pull away the retention clips on each side of the module 1. (The module tilts upward.) b. Grasp the edges of the module and gently pull the module out of the memory module slot 2.
Page 105 Memory Modules 8. Insert the new memory module: a. Align the keyed (notched) edge of the module with the tabbed area in the memory module slot. b. With the module at a 45-degree angle from the surface of the memory module compartment, press the module into the memory module slot until it is seated 1.
Page 106 Memory Modules 9. Replace the memory module cover 1 and tighten the memory module cover screws 2. Hardware and Software Guide 8–5...
Page 107: Hibernation File
Memory Modules Hibernation File When random access memory (RAM) increases, the operating system increases the hard drive space reserved for the hibernation file. If you experience problems with hibernation after increasing memory, verify that your hard drive has enough free space to accommodate a larger hibernation file.
Page 108: Usb Devices
USB Devices What Is USB? Universal Serial Bus (USB) is a hardware interface that can be used to connect external devices, such as a USB keyboard, mouse, drive, printer, scanner, or hub, to the notebook. Depending on model, the notebook has 2 or 4 standard USB connectors that support USB 1.1 and USB 2.0 devices.
Page 109: Using Usb Devices
USB Devices Using USB Devices To use a USB device: » Plug the device into one of the USB ports on your notebook. USB hubs can be connected to a USB port on the notebook or on an optional docking device. Hubs can support several USB devices.
Page 110: Modem And Networking
Modem and Networking Internal Modem Å WARNING: Connecting the notebook to a digital PBX system line can permanently damage the modem. Jacks for digital PBX systems may resemble analog telephone jacks, but are not compatible with the modem. Immediately disconnect your modem cable if you accidentally connect it to a digital PBX system line.
Page 111: Connecting A Modem Cable
Modem and Networking Connecting a Modem Cable To connect a modem cable: Å WARNING: To avoid the risk of electrical shock, fire, or damage to the equipment, do not plug a modem cable into the network jack. 1. If the modem cable contains noise suppression circuitry 1, which prevents interference from TV and radio reception, orient the circuitry end of the cable toward the notebook.
Page 112: Using A Country-Specific Modem
Using a Country-Specific Modem Cable Adapter Telephone jacks vary by country and region. To connect the modem to an analog telephone line that does not have an RJ-11 telephone jack: Å WARNING: To avoid the risk of electrical shock, fire, or damage to the equipment, do not plug a modem cable into the network jack.
Page 113: Modem Region Selection
Modem and Networking Modem Region Selection Viewing the Current Regional Selection To see the current regional setting for your modem: 1. Select Start > Control Panel > Date, Time, Language, and Regional Options > Regional & Language Options. 2. Under Location, view your present location. Adding New Locations When Traveling Ä...
Page 114: Solving Travel Connection Problems
To add a new country location: 1. Select Start > Control Panel > Network and Internet Connections > Phone and Modem Options > Dialing Rules tab. 2. Select the New button and assign a name (home, work, etc.) to the location. 3.
Page 115 Modem and Networking Check the telephone number you are dialing and the response of the remote modem. Dial the telephone number on the telephone, wait for the remote modem to answer, and then hang up. Set the modem to ignore dial tones. If the modem receives a dial tone it does not recognize, it will not dial and will display a No Dial Tone error message.
Page 116: Preinstalled Communication Software
Preinstalled Communication Software To use preinstalled modem software for terminal emulation and data transfer: 1. Select Start > All Programs > Accessories > Communications. 2. Select the appropriate fax or terminal emulation program or Internet connection wizard. Network Cable A network cable (not included) has an 8-pin RJ-45 connector at each end.
Page 117 Modem and Networking To connect a network cable: 1. If the network cable contains noise suppression circuitry 1, which prevents interference from TV and radio reception, orient the circuitry end of the cable toward the notebook. 2. Plug the network cable into the network jack 2 on the notebook.
Page 118: Wireless (Select Models Only)
Wireless (Select Models Only) If your notebook is equipped with an integrated wireless device such as 802.11 or Bluetooth wireless devices, you have a wireless notebook. An 802.11 wireless notebook can connect to wireless networks in corporate offices, your home, and public places. Wireless networks include wireless local area networks (WLANs) or “hotspots.”...
Page 119 Wireless (Select Models Only) Your notebook has a button that may be used to enable and disable the 802.11 and Bluetooth wireless devices and an associated light to indicate the state of the wireless devices. The following illustration shows the wireless button and light. In addition to the wireless button and light, your notebook may have a software utility, Wireless Assistant (select models only), that enables you to control your wireless devices.
Page 120: Wireless Local Area Network (Select Models Only)
Wireless Local Area Network (Select Models Only) With the 802.11 wireless device, you can access a wireless local area network (WLAN), which is composed of other computers and accessories linked by a wireless router or a wireless access point. A large scale WLAN, such as a corporate WLAN or public WLAN hotspot, typically uses wireless access points, that can handle a large number of computers and accessories and can separate critical network functions.
Page 121 Wireless (Select Models Only) There are 3 popular implementations of WLAN adapters: 802.11b only 802.11b/g 802.11a/b/g 802.11b, the first popular WLAN standard, supports data rates of up to 11 Mbps and operates at a frequency of 2.4 GHz. 802.11g, which came later, also operates at 2.4 GHz but supports data rates of up to 54 Mbps.
Page 122: Setting Up A Wlan In Your Home
Setting Up a WLAN in Your Home To set up a WLAN and connect to the Internet in your home, you need the following equipment. The illustration below shows an example of a completed wireless network installation that is connected to the Internet. This wireless network includes An optional broadband modem (either DSL or cable) and high-speed Internet service purchased from an Internet service provider (ISP) 1.
Page 123: Using A Wlan Connection
Wireless (Select Models Only) Using a WLAN Connection To use a WLAN connection: Verify that all drivers required by the 802.11 wireless device are installed and that the 802.11 wireless device is correctly configured. If you are using an integrated 802.11 wireless device, all required drivers are installed and the adapter is preconfigured and ready for use.
Page 124: Using Wireless Security Features
Using Wireless Security Features When you set up your own WLAN or access an existing WLAN, always ensure that security features are protecting the WLAN. If you do not enable security on your WLAN, an unauthorized wireless user can access your notebook data and use your Internet connection without your knowledge.
Page 125: Identifying A Wlan Device
Wireless (Select Models Only) Identifying a WLAN Device To install WLAN software for an integrated 802.11 wireless device, you need to know the name of the integrated 802.11 wireless device on your notebook. To identify an integrated 802.11 wireless device: 1.
Page 126: Troubleshooting Devices
The WLAN software is also available as a SoftPaq at the Compaq Web site. To access, download, and install the SoftPaq, use either of the following procedures: Select Start > Help and Support. – or – Visit the Compaq Web site at a.
Page 127: Bluetooth (Select Models Only)
Wireless (Select Models Only) Bluetooth (Select Models Only) The Bluetooth device provides short-range wireless communications that replace the physical cable connections that traditionally link electronic devices such as Network access points. Computers (desktop, notebook, PDA). Phones (cellular, cordless, smart phone). Imaging devices (printer, camera).
Page 128 Wireless (Select Models Only) Bluetooth serial port—Transfers data over the Bluetooth link using a virtual COM port. Hands-Free—Enables a vehicle-embedded, hands-free unit or a notebook serving as a hands-free unit to establish a wireless connection to a cellular phone and to act as the Bluetooth cellular phone audio input and output mechanism.
Page 129: Device Power States
Wireless (Select Models Only) Device Power States The wireless button enables and disables 802.11 wireless and Bluetooth devices in conjunction with Wireless Assistant (select models only). By default, the 802.11 wireless and Bluetooth devices and wireless light are turned on when you turn on the notebook.
Page 130 The 802.11 wireless and Bluetooth devices have 2 power states: Enabled Disabled You can enable and disable the wireless devices with the wireless button. When the wireless devices are enabled with the wireless button, you can use Wireless Assistant (select models only) to turn on and off the devices individually.
Page 131: Turning On The Devices
Wireless (Select Models Only) Turning On the Devices Wireless Assistant (select models only) shows that both WLAN and Bluetooth are off Wireless light is off Wireless Assistant shows that both WLAN and Bluetooth are disabled* Wireless light is off Wireless Assistant shows that one device is on and the other device...
Page 132: Turning Off And Disabling The Devices
Turning Off and Disabling the Devices Wireless Assistant (select models only) shows that both WLAN and Bluetooth are on Wireless light is on Wireless Assistant shows that both WLAN and Bluetooth are off Wireless light is off Wireless Assistant shows that one device is on and the other device is off* Wireless light is on...
Page 133: Security
Security Features Security solutions are designed to act as deterrents. These deterrents may not prevent a product from being mishandled or stolen. The security features provided with the notebook can protect the notebook, personal information, and data from a variety of risks. Depending on your environment, some security features may be unnecessary.
Page 134: Security Preferences In The Setup Utility
Security To Protect Against Unauthorized use of the notebook Unauthorized access to the Setup utility (f10) Unauthorized startup from a CD or a diskette Unauthorized access to data Unauthorized access to the BIOS settings and other system identification information Unauthorized removal of the notebook *This security feature is configured in the Setup utility.
Page 135: Quicklock
QuickLock hotkey initiates the operating system QuickLock fn+f6 security feature. QuickLock protects your notebook by displaying the operating system log-on screen. While the log-on screen is displayed, the notebook cannot be accessed until a Windows user password or Windows administrator password is entered. Before you can use the QuickLock feature, you must set a Windows user password or Windows administrator password.
Page 136: Compaq And Windows Passwords
Security Compaq and Windows Passwords Compaq security features and Windows operating system security features work independently from one another. For example, a device disabled in the Setup utility cannot be enabled in Windows. Some password options are provided by your Compaq software, and others are provided by your operating system.
Page 137: Compaq And Windows Password Guidelines
Compaq and Windows Password Guidelines Compaq and Windows passwords are not interchangeable. You must use a Compaq password at a Compaq password prompt and a Windows password at a Windows password prompt. For example: If a power-on password is set, the power-on password (not a Windows password) must be entered when the notebook starts up or restores from hibernation.
Page 138: Compaq Administrator Password
Security Although you can use the same text for various passwords, Compaq passwords and Windows passwords function independently. Even if you plan to use the same text for a Compaq password and a Windows password, you must set the Compaq password in the Setup utility and the Windows password in your operating system.
Page 139: Setting Compaq Administrator Passwords
Setting Compaq Administrator Passwords A Compaq administrator password is set, changed, or deleted in the Setup utility. To manage the password: 1. Shut down the notebook. If you are not sure whether the notebook is off or in hibernation, turn the notebook on by pressing the power button, and then shut down the notebook through the operating system.
Page 140: Entering Compaq Administrator Passwords
Security Entering Compaq Administrator Passwords At the Enter SETUP Password prompt, type your Compaq administrator password with the same keys you used to set the password, and then press enter the Compaq administrator password, you must restart the notebook and try again. Power-On Passwords A power-on password prevents unauthorized use of the notebook.
Page 141: Entering Power-On Passwords
3. Open the Setup utility by turning on or restarting the notebook. Press lower-left corner of the screen. 4. Use the arrow keys to select Security > Power-On password, and then press To set a power-on password, type the password in the Enter New Password and Confirm New Password fields, and then press To change a power-on password, type the current...
Page 142: Device Security
Security Device Security From the Setup utility Device Security menu, you can disable the ability of the notebook to start from a CD or a diskette drive. To disable or reenable notebook capabilities in the Setup utility: 1. Shut down the notebook. If you are not sure whether the notebook is off or in hibernation, turn the notebook on by pressing the power button, and then shut down the notebook through the operating system.
Page 143: Antivirus Software
Antivirus Software When you use the notebook for e-mail, network, or Internet access, you expose the notebook to computer viruses. Computer viruses can disable your operating system, applications, or utilities or cause them to function abnormally. Antivirus software can detect most viruses, destroy them, and in most cases, repair damage they have caused.
Page 144: Critical Security Updates For Windows Xp
Security Critical Security Updates for Windows XP Ä CAUTION: Because new computer viruses are being detected all the time, it is recommended that you install all critical updates as soon as you receive an alert from Microsoft. You should also run Windows Update on a monthly basis to install the latest recommended updates from Microsoft.
Page 145: Firewall Software
Security Firewall Software When you use the notebook for e-mail, network, or Internet access, it is possible for unauthorized persons to obtain information about you, your notebook, and your data. Firewalls monitor all incoming and outgoing traffic on your computer by including features such as logging and reporting, automatic alarms, and user interfaces for configuring the firewall.
Page 146: Optional Security Cable
Security Optional Security Cable Security solutions are designed to act as deterrents. These deterrents may not prevent a product from being mishandled or stolen. To install a security cable: 1. Loop the security cable around a secured object. 2. Insert the cable lock into the security cable slot. 12–14...
Page 147 Security 3. Turn the key counterclockwise 1, remove the key 2, and keep it in a safe location. 12–15...
Page 148: Setup Utility
Setup Utility The Setup utility is a ROM-based information and customization utility that can be used even when your Windows operating system is not working or will not load. The utility reports information about the notebook and provides settings for startup, security, and other preferences. Step-by-step instructions for setting specific preferences are included by topic earlier in this guide.
Page 149: Opening The Setup Utility
Setup Utility Opening the Setup Utility To open the Setup utility: 1. Turn on or restart the notebook in Windows. 2. Before Windows opens and while the “Press <F10> to enter setup” prompt is displayed in the lower-left corner of the screen, press Changing the Language of the Setup Utility...
Page 150: Navigating And Selecting In The Setup Utility
Navigating and Selecting in the Setup Utility Because the Setup utility is not Windows-based, it does not support the TouchPad. Navigation and selection are by keystroke. To choose a menu or a menu item, use the arrow keys. To choose an item in a drop-down list or to toggle a field, for example an Enable/Disable field, use either the arrow keys or To select an item, press...
Page 151: Restoring Default Settings In The Setup Utility
Setup Utility Restoring Default Settings in the Setup Utility The following procedure explains how to restore the Setup utility default settings. 1. To open the Setup utility, turn on or restart the notebook in Windows, and then press to enter setup,” is displayed in the lower-left corner of the screen.
Page 152: Closing The Setup Utility
The “<F12> to boot from LAN” message that is displayed in the lower-left corner of the screen each time the notebook is started or restarted in Windows or restored from hibernation is the prompt for a Network Service Boot. The “Press <ESC> to change boot order” message that is displayed in the lower-left corner of the screen each time the notebook is started or restarted in Windows or restored from hibernation is the prompt to change the boot order.
Page 153: Software Updates And Recoveries
Software Updates For optimal notebook performance and to make sure your notebook remains compatible with changing technologies, install the latest versions of the software provided with your notebook as they become available. You may find that the easiest way to update the software provided with your notebook is to use the software update links provided at Start >...
Page 154: Preparing For A Software Update
Software Updates and Recoveries Preparing for a Software Update If your notebook connects to a network, consult with your network administrator before installing any software updates, particularly a ROM update. It is also recommended that you set a restore point before beginning a software update.
Page 155: Accessing Notebook Rom Information
Accessing Notebook ROM Information To determine whether an available ROM update is a later ROM version than the ROM version currently installed on the notebook, you need to know the version of the currently installed ROM. To view the ROM version of your notebook: »...
Page 156: Downloading And Installing An Update
Software Updates and Recoveries Downloading and Installing an Update Most software at the Compaq Web site is packaged in compressed files called SoftPaqs. Some ROM updates may be packaged in compressed files called ROMPaqs. Most download packages contain a file named Readme.txt. A Readme.txt file contains detailed descriptive, installation, and troubleshooting information about the download.
Page 157: Downloading A Rom Update
Downloading a ROM Update: 1. Access the page at the Compaq Web site that provides software for your notebook: Select Start > Help and Support, and then select a software update link. – or – Visit the Compaq Web Site: http://www.compaq.com/consumersupport 2.
Page 158 Software Updates and Recoveries Installing a ROM Update ROM installation procedures vary. Follow any instructions that are displayed on the screen after the download is complete. If no instructions are displayed: 1. Open Windows Explorer. To open Windows Explorer from the Start button, select Start >...
Page 159 2. Follow the instructions on the screen to identify your notebook and access the SoftPaq you want to download. 3. At the download area: a. Write down the date, name, or other identifier of the SoftPaq you plan to download. (You may need this information to locate the update later, after it has been downloaded to the hard drive.) b.
Page 160: System Restore Points
Software Updates and Recoveries System Restore Points System restore is an operating system feature that enables you to undo harmful changes to your notebook software by restoring your software to an earlier time, called a restore point, when your software was functioning optimally. Restore points are restorable, benchmark “snapshots”...
Page 161: Restoring To A Restore Point
Restoring to a Restore Point To restore the notebook to a restore point: 1. Make sure the notebook is connected to a reliable AC outlet through the AC adapter. 2. Select Start > Help and Support > System Restore. 3. Select Restore my computer to an earlier time, and then follow the instructions on the screen.
Page 162: Reinstalling Applications From Your
Software Updates and Recoveries Reinstalling Applications from Your Hard Drive To reinstall a preloaded application or utility from your hard drive: » Select Start > All Programs > Software Setup, and then follow the instructions on the screen. (When you are prompted to select the software you want to reinstall, select or clear the appropriate check boxes.) Reinstalling Applications from Discs...
Page 163: Repairing The Operating System
Repairing the Operating System To attempt an operating system repair without deleting your personal data, use the Operating System disc that was shipped with the notebook: 1. Connect the notebook to a power outlet through the AC adapter and turn on the notebook. 2.
Page 164: Reinstalling The Operating System
Software Updates and Recoveries Reinstalling the Operating System Ä CAUTION: To prevent the loss of all of your personal data, back up your data before reinstalling the operating system. Personal data and any software you have installed on the notebook will be lost during the operating system reinstallation process.
Page 165: Reinstalling Device Drivers And Other Software
8. Press system instead of repairing it. 9. Press enter 10. Press 11. Select Format the partition using the NTFS file system (Quick) and press Ä CAUTION: Formatting a drive deletes all current files. 12. Press to format the drive. The reinstallation process begins. This process takes 1 to 2 hours to complete.
Page 166: Updating Reinstalled Software
Software Updates and Recoveries Updating Reinstalled Software It is strongly recommended that you update all reinstalled software. Depending on the settings you used on your former configuration, some software may have been updated without your knowledge. Use the following update procedures as soon as your notebook is connected to the Internet.
Page 167: Notebook Care
Å WARNING: Always disconnect the notebook from the wall outlet and disconnect external devices before attempting to clean your notebook or any of its components. Å WARNING: Do not spray liquids on your notebook, display, or keyboard. Liquids and household solvents can permanently damage your notebook’s finish and interior components.
Page 168: Temperature
Notebook Care Use your notebook only on a solid, flat surface. Make sure that the vents, which cool internal components, are unobstructed. Ä To prevent overheating, do not obstruct the vents. Do not allow a hard surface, such as an adjoining optional printer, or a soft surface, such as fabric or carpet, to block the airflow.
Page 169: Keyboard
Notebook Care Keyboard Ä CAUTION: Do not use liquids of any kind on the keyboard, because they may permanently damage your keyboard. Do not use a regular vacuum cleaner to clean the keyboard, because you may deposit normal household debris on the surfaces, rather than remove it. Clean the keyboard regularly to prevent keys from sticking and to remove dust, lint, and particles that can become trapped beneath the keys.
Page 170: Display
Notebook Care Display Ä CAUTION: Never spray water, cleaning fluids, or chemicals on the screen. Doing so can permanently damage your notebook. To remove smudges and lint, frequently clean your display with a soft, damp, lint-free cloth. If the screen requires additional cleaning, use an antistatic screen cleaner or premoistened antistatic wipes.
Page 171: Travel And Shipping
Preparation for Travel and Shipping To prepare the notebook for shipping or traveling: 1. Back up your work. 2. Remove all CDs, DVDs, diskettes, discs, PC Cards, ExpressCards, and digital cards. 3. Turn off and disconnect all external devices. 4. Turn off the notebook. 5.
Page 172 Travel and Shipping Do not expose the notebook or diskettes to a magnetic security detector. The security device that examines carry-on items placed on a conveyor belt uses x-rays and is safe for the notebook and diskettes. The walk-through security device and the handheld security wands are magnetic and may damage the notebook or diskettes.
Page 173: Specifications
Operating Environment The operating environment information in the following table might be helpful if you plan to use or transport the notebook in extreme environments. Factor Temperature Operating Nonoperating Relative humidity (noncondensing) Operating Nonoperating Maximum altitude (unpressurized) Operating (14.7 to 10.1 psia) Nonoperating (14.7 to 4.4 psia) Hardware and Software Guide Specifications...
Page 174: Rated Input Power
Specifications Rated Input Power The power information in this section might be helpful if you plan to travel internationally with the notebook. The notebook operates on DC power, which can be supplied by an AC or a DC power source. Although the notebook can be powered from a stand-alone DC power source, it is strongly recommended that the notebook be powered only with an AC adapter or DC power cord supplied with or approved for...
Page 175: Expansion Port Input/Output Signals (Select Models Only)
Expansion Port Input/Output Signals (Select Models Only) The expansion port signal information in this section may be helpful if you plan to use an optional notebook docking device that connects to the expansion port 2 on your notebook (select models only). For the location of the expansion port 2, refer to Components”...
Page 176 Specifications The following table identifies the input and output signals supported by the expansion port 2 (select models only) on your notebook. Not all docking devices will support these features. Feature USB 2.0 10/100 Ethernet Gigabit Ethernet IEEE 1394 (4-pin port) Consumer IR (for optional remote control only) Power inputs...
Page 177 1394 port 1–11 AC adapter 1–17 adapter, modem 10–3 administrative password. See passwords administrator password 12–4 aircraft adapter 2–15 airport security devices 5–2 16–2 altitude specifications 17–1 antennae, wireless 1–7 antivirus software 12–11 applications key, Windows 1–2 applications, reinstalling or repairing 1–18 applications.
Page 178 Index bays battery 1–16 hard drive 1–16 See also compartments BIOS (basic input/output system) 14–2 See also ROM BIOS information, displaying 12–2 14–3 BIOS version 14–3 Bluetooth interference with standby and hibernation 2–6 overview 11–1 software 11–10 Bluetooth label 1–19 boot order preferences 13–4 buttons display release 1–8...
Page 179 country-specific modem adapter 1–17 critical low-battery condition 2–17 Customer Care 1–18 device disabling 12–10 device security 12–10 dial tones 10–6 dialing settings 10–5 digital cards disabling 7–4 inserting 7–2 Memory Stick (MS) 7–1 Memory Stick Pro (MSP) 7–1 MultiMediaCard (MMC) 7–1 removing 7–3 restarting 7–4...
Page 180 Index enablers, PC Card 6–1 environmental specifications 17–1 ESD (electrostatic discharge) 5–2 expansion port 2 17–3 ExpressCard configuring 6–6 identifying 6–5 inserting 6–6 removing 6–8 ExpressCard slot 1–12 inserting ExpressCard 6–6 removing ExpressCard 6–8 ExpressCard slot cover 6–6 external monitor port 1–11 1–14 external numeric keypad 3–15 firewall software 12–13...
Page 181 initiate QuickLock 3–10 initiate standby 2–8 open Internet Explorer 3–8 open print options window 3–8 Quick Reference 3–6 switch image 3–8 hotkeys identifying 3–5 identifying function keys 1–1 procedures 3–7 Quick Reference 3–6 using with external keyboard 3–7 hotspots 11–1 hub, USB 9–2 humidity specifications 17–1 IDE (Integrated Drive...
Page 182 Index labels 1–18 Microsoft Certificate of Authenticity 1–18 Service Tag 1–18 wireless certification 1–19 WLAN 1–19 language, changing in Setup utility 13–2 latch, battery pack release 1–16 See also buttons; display switch lights battery 1–9 caps lock 1–6 IDE drive 1–9 mute 1–6 num lock 1–6 power button 1–6...
Page 183 network cable 1–10 network jack connecting 10–7 identifying 1–10 Network Service Boot 13–4 Norton AntiVirus 12–11 notebook model, family, type, and serial number 3–7 notebook product information 14–2 key 3–14 num lock num lock light 1–6 numeric keypad. See keypad, external;...
Page 184 Index power AC adapter 1–17 connecting 2–1 conserving 2–22 disconnecting 2–1 schemes 2–13 selecting a source 2–2 setting preferences 2–10 travelling tips 16–2 See also battery pack; hibernation; shutdown procedures; standby power connector 1–10 power cord 1–17 See also cables Power Meter 2–16 power schemes 2–10 power settings 2–7...
Page 185 key 3–7 scroll lock scroll zone, TouchPad 1–3 3–2 scrolling preferences 3–4 Secure Digital (SD) Memory Card 7–1 Secure Digital Input/Output (SD I/O) 7–1 security cable lock, connecting 12–14 security cable slot 1–14 security features 12–1 security features on notebook, Computer Setup 12–2 security password 2–11 serial number 1–18...
Page 186 Index speakers external 4–3 internal 1–8 specifications operating environment 17–1 rated input power 17–2 SSID 11–7 standby caution 2–3 initiated during critical low-battery condition 2–17 initiating 2–5 interference 2–6 overview 2–3 power/standby light 1–9 resuming from 2–8 setting preferences 2–10 stereo speakers external 4–3 internal 1–8...
Page 187 updates, software 14–14 USB devices 9–1 USB hubs 9–2 USB ports 1–11 user passwords. See passwords connecting audio 4–3 connecting video 4–4 vents 1–16 video devices, connecting 4–4 viruses, antivirus software 12–11 voltage converter kit 16–2 volume buttons 1–5 volume, adjusting 4–1 Wi-Fi Protected Access (WPA)-Personal 11–7 Windows administrator...

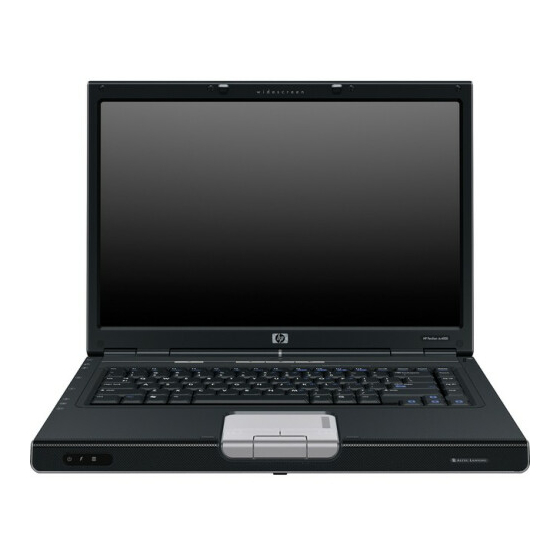

HP Compaq Presario,Presario V4000 Hardware And Software Manual

1 Component ID

2 Power

3 Keyboard and Touchpad

4 Multimedia

5 Drives

6 PC Cards and Expresscards

7 Digital Memory Cards (Select Models Only)

8 Memory Modules

9 USB Devices

10 Modem and Networking

11 Wireless (Select Models Only)

12 Security

13 Setup Utility

14 Software Updates and Recoveries

15 Notebook Care

16 Travel and Shipping

17 Specifications

Quick Links

Related Manuals for HP Compaq Presario,Presario V4000

Summary of Contents for HP Compaq Presario,Presario V4000
