Original Instructions (EN)
MM-Series Mortar Mixer
Model No. 68013—Serial No. 314000001 and Up
Model No. 68014—Serial No. 314000001 and Up
Model No. 68016—Serial No. 314000001 and Up
Model No. 68017—Serial No. 314000001 and Up
Model No. 68020—Serial No. 314000001 and Up
Model No. 68021—Serial No. 314000001 and Up
Model No. 68024—Serial No. 314000001 and Up
Form No. 3405-112 Rev B
*3405-112* B
Advertisement
Table of Contents
Related Manuals for Toro 68013
Summary of Contents for Toro 68013

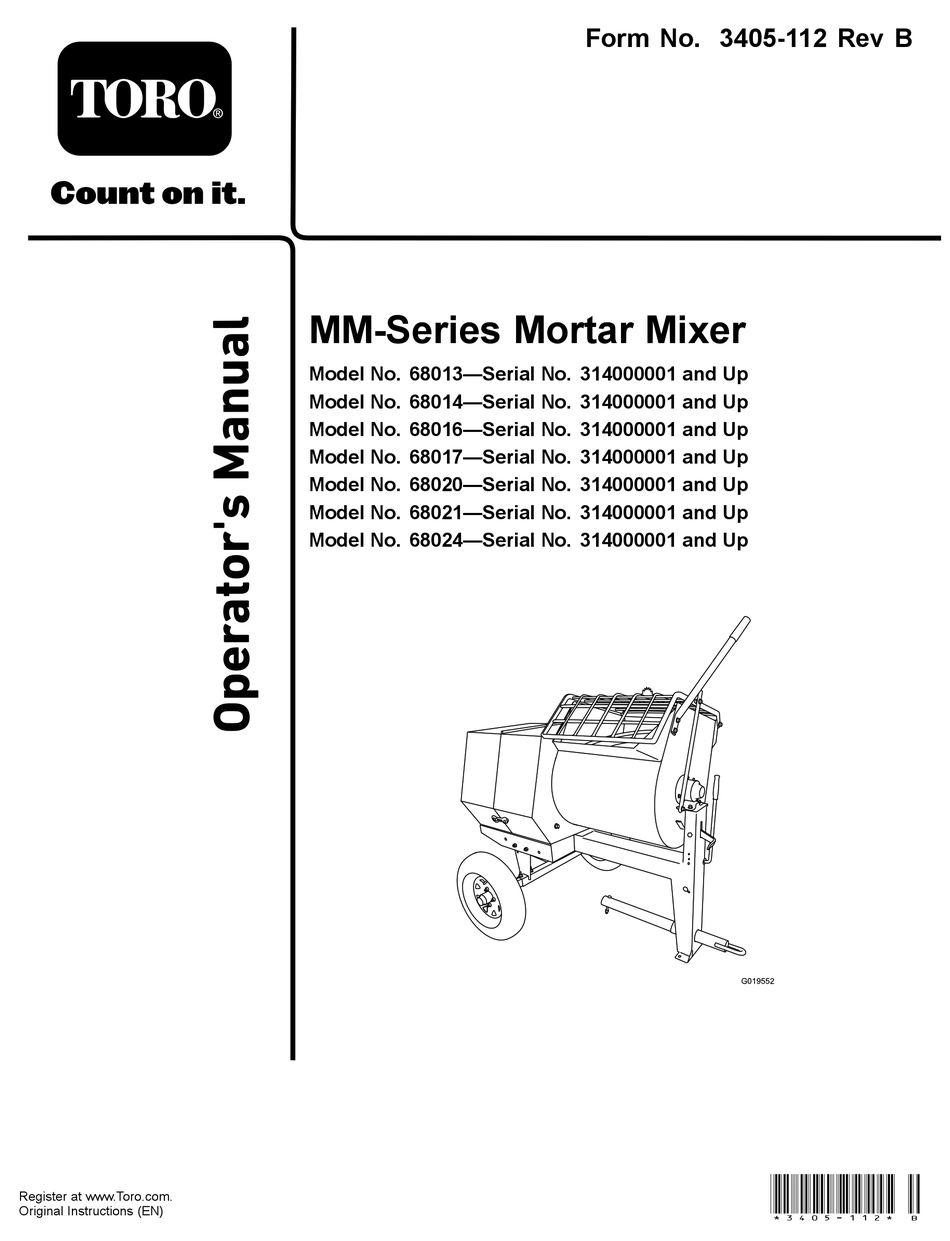

- Page 1 Form No. 3405-112 Rev B MM-Series Mortar Mixer Model No. 68013—Serial No. 314000001 and Up Model No. 68014—Serial No. 314000001 and Up Model No. 68016—Serial No. 314000001 and Up Model No. 68017—Serial No. 314000001 and Up Model No. 68020—Serial No. 314000001 and Up Model No.
-
Page 2: Figure 1
It is a violation of California Public Resource Code Dealer or Toro Customer Service and have the model Section 4442 or 4443 to use or operate the engine on and serial numbers of your product ready. Figure 1 any forest-covered, brush-covered, or grass-covered... -
Page 3: Table Of Contents
This manual identifies potential hazards and has Servicing the Engine Oil........31 safety messages identified by the safety-alert symbol Servicing the Spark Plug........33 (Figure 2), which signals a hazard that may cause Cleaning the Spark Arrester......34 serious injury or death if you do not follow the Removing and Installing the Engine .... -
Page 4: Safety
Safety • Read and understand the contents of this Operator’s Manual before you start the engine. Ensure that everyone using this product knows Improper use or maintenance by the operator or how to use it and understands the warnings. owner can result in injury. To reduce the potential •... - Page 5 • Do not carry any material in the machine when – Ensure that the lug nuts are tight and torqued towing. properly. • Avoid sudden stops and starts. This can cause – Ensure that the machine is properly secured. skidding or jackknifing. Smooth, gradual starts and stops improves towing.
- Page 6 • Do not tamper with safety devices. • Chock the tires when storing the machine. • Keep all fasteners and hose clamps securely tightened and all equipment in good condition. • Use only genuine Toro replacement parts.
-
Page 7: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost. decal125-8175 125-8175 1. Read the Operator’s Manual for information on greasing the machine. - Page 8 decal133-5619 133-5619 decal130-8322 130-8322 1. Use fuel with an alcohol 3. Do not use fuel with an content by volume under alcohol content greater 10% only. than 10% by volume. 2. Read the Operator's Manual for more information on fuel. decal132-3997 132-3997 1.
- Page 9 decal132-4043 132-4043 1. Read the Operator's Manual for more information on servicing the machine.
-
Page 10: Setup
Cut the cable ties to remove the dump handle Figure 3 from the underside of the grate. Models 68013, 68016, 68020 Install the dump handle to the side of the drum using 2 bolts and nuts as shown in Figure... -
Page 11: Installing The Tow Pole
g022149 Figure 5 Model 68024 g019804 Figure 6 1. Tow pole 4. Bolt hole 2. Front post 5. Frame fitting 3. Bolt 6. Nut Slide the tow pole forward and align the hole in the pole with the hole in the frame fitting (Figure Installing the Tow Pole Insert the bolt through the holes in the fitting and... -
Page 12: Installing The Safety Chain
Installing the Safety Chain Parts needed for this procedure: Safety chain (included with the tow pole kit) Connecting link (included with the tow pole kit) Procedure Safety chain and connecting link are included in the tow pole kit (sold separately); refer to 2 Installing the Tow Pole (page 11). -
Page 13: Product Overview
Product Overview g022179 g019773 Figure 9 Figure 8 Right Side (Gearbox Model) Right Side (Belt-Drive Models) 1. Dump handle 6. Tow pole 11. Rear cowl 1. Rear cowl 7. Clutch lever 13. Chute 2. Drum 7. Grate lift arm 12. Front cowl 2. -
Page 14: Controls
Controls Drum Latch Use the drum latch to secure the drum to the mix Become familiar with all the controls before you start position (upright) for mixing operations and when the engine and operate the machine. transporting the machine. Clutch Lever Use the clutch lever to engage and disengage the paddles. -
Page 15: Engine Controls
Engine Controls Choke Lever Use the choke lever (Figure 16) to start a cold engine. Before pulling the recoil-start handle, move the choke lever to the C position. Once the engine is LOSED running, move the choke lever to the O position. -
Page 16: Specifications
Specifications Note: Specifications and design are subject to change without notice. Machine Specifications Model 68013 68014 68016 68017 68020 68021 68024 Batch 0.17 m 0.17 m 0.17 m 0.17 m 0.23 m 0.23 m 0.34 m Capacity (6.0 ft (6.0 ft (6.0 ft... -
Page 17: Operation
Operation WARNING Towing the machine at high speed increases Important: Before operating, check the fuel and the risk of a hitch malfunction and tire failure. oil levels, and remove debris from the machine. Higher speeds also increase the momentum Ensure that the area is clear of people. of the machine and braking distance. - Page 18 Position the drum in the mix position (upright) and lock it. Close the engine cowl and secure the cowl latches (Figure 19). g019741 Figure 19 If you have adjusted the axle to the narrow position (if equipped on your model), extend the axle;...
- Page 19 Connecting the Safety Chains to the Tow Vehicle Pull the safety chain through the slots in the keyholes, so that the lengths on each side are equal. Cross both lengths of chain under the tow pole. Note: Crossing the chains decreases the chances of the front of the machine dropping to the ground if the hitch does not hold the connection.
-
Page 20: Adjusting The Axle Width
The corresponding turn-signal lights of the machine should illuminate. Adjusting the Axle Width Models with Adjustable Axles Only If your model is equipped with an adjustable axle (Figure 27), you can adjust the axle to the narrow position to move the machine through a narrow access point, such as the gate of a fence or the doorway of a building. -
Page 21: Preparing To Use The Machine
Preparing to Use the Machine Park the machine on a level surface and disconnect the machine from the tow vehicle. Ensure that all guards and paddles are in place and in good condition. Perform all daily maintenance procedures prescribed in Maintenance (page 27). -
Page 22: Closing The Cowl
Closing the Cowl DANGER In certain conditions during fueling, static electricity can be released, causing a spark that can ignite the fuel vapors. A fire or explosion from fuel can burn you and others and can damage property. • Always place fuel containers on the ground away from your vehicle before filling. - Page 23 Fuel Tank Capacity Model Fuel Tank Capacity 68013 and 68014 3.1 L (0.82 US gallons) 68016, 68017, 68020, 68021 5.3 L (1.40 US gallons) 68024 6.1 L (1.61 US gallons)
-
Page 24: Performing Daily Maintenance
Performing Daily Maintenance Before starting the machine each day, perform the Each Use/Daily procedures listed in Maintenance (page 27). Starting the Engine g021103 Figure 33 Ensure that the clutch lever is in the O position. 1. Engine switch—O 2. Engine switch—O position position Move the fuel valve to the O... -
Page 25: Mixing The Material
Mixing the Material DANGER Eye and skin contact with concrete materials and breathing the dust involved is hazardous to your health. • Ensure that there is adequate air ventilation. • Wear a dust mask to prevent inhalation of dust while using the machine; refer to Safe Operating Practices (page •... -
Page 26: Dumping The Material
g035366 Figure 38 g021179 Figure 37 1. Dump handle—Mix 3. Drum latch—Locked position position 2. Drum latch—Release 4. Dump handle—Dump position position If you are using sand and/or other reinforcing materials, add them into the drum. Lift the handle of the drum latch (Figure 38). -
Page 27: Maintenance
Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Change the reduction-case oil (Models 68013 and 68014 only). After the first 20 hours • Change the engine oil. • Check the clutch operation (gearbox model only). After the first 25 hours •... -
Page 28: Pre-Maintenance Procedures
Pre-Maintenance Procedures Preparing the Machine for Maintenance Shut off the engine and allow it to cool completely. Park the machine on a level surface. g020752 Figure 40 Remove the machine from the tow vehicle. Secure the machine from movement. To remove the divider plate, lift it upward and tilt Disconnect the spark-plug wire. -
Page 29: Lubrication
Lubrication Lubricating the Bearings and Seals Service Interval: After each use—Lubricate the trunnions. Monthly—Lubricate the pillow-block bearings. Note: The pillow-block bearings are inside the cowl—remove the divider plate if equipped) to access g020684 them; refer to Removing the Divider Plate (page 28). -
Page 30: Engine Maintenance
Engine Maintenance Servicing the Air Cleaner Service Interval: Before each use or daily—Inspect the air-cleaner elements. Every 50 hours—Clean the air-cleaner elements. Clean them more frequently in dusty operating conditions. Every 300 hours/Yearly (whichever comes first)—Replace the paper air-cleaner element. Replace it more frequently in dusty operating conditions. -
Page 31: Servicing The Engine Oil
Securely install the cover with the nut. Servicing the Engine Oil Engine-Oil Specifications Toro Premium Engine Oil is available from your Authorized Toro Dealer. Important: Use 4-cycle engine oil that meets or exceeds the requirements for API service category SJ, SL, SM, or higher. - Page 32 WARNING Oil may be hot after the engine has been run, and contact with hot oil can cause severe personal injury. Avoid contacting the hot engine oil when you drain it. Shut off the engine and wait for all moving parts to stop.
-
Page 33: Servicing The Spark Plug
Servicing the Spark Plug Service Interval: Every 100 hours/Every 6 months (whichever comes first)—Check the spark plug. Every 300 hours/Yearly (whichever comes first)—Replace the spark plug. Spark Plug Specifications Type: NGK BPR6ES or equivalent Gap: 0.7 to 0.8 mm (0.028 to 0.031 inch) Note: Use a 21 mm (13/16 inch) spark-plug wrench g019749... -
Page 34: Cleaning The Spark Arrester
A spark arrester is available as an option. If the spark plug. you require a spark arrester, contact your Authorized Thread the spark plug clockwise into the Service Dealer. Genuine Toro spark arresters are spark-plug hole by hand. approved by the USDA Forestry Service. Note:... -
Page 35: Removing And Installing The Engine
Remove the screws (5 mm and 6 mm) from Using a spring-removal tool (Toro Part No. the muffler protector, and remove the muffler 92-5771), remove the spring from the anchor protector (Figure 51). bracket on the engine deck (Figure 53). -
Page 36: Fuel System Maintenance
(Figure removed in step Removing the Engine (page 35). Using a spring-removal tool (Toro Part No. g019333 92-5771), install the tension spring to the anchor Figure 56 bracket on the engine deck (Figure 53). -
Page 37: Draining The Fuel Tank
Remove the fuel cap by rotating it counterclockwise (Figure 57). Model Maximum Air Pressure 68013, 68014, 68016, and 414 kPa (60 psi) 68017 68020, 68021, and 68024 241 kPa (35 psi) Inspecting the Tires Service Interval: Before each use or daily... -
Page 38: Torquing The Wheel Lug Nuts
Servicing the Reduction Case Models 68013 and 68014 Only Important: If the oil level in the reduction case is too low or too high and you run the engine, you may damage the engine or the reduction case. This type of damage is not covered by the g020836 warranty. - Page 39 (Models 68013 and 68014 only). Every 100 hours/Every 6 months (whichever comes first)—Change the reduction-case oil (Models 68013 and 68014 only). Park the machine on a level surface and shut off the engine. Allow the engine to cool.
-
Page 40: Servicing The Gearbox
(35 to 55 lb). Servicing the Gearbox If the clutch pressure is greater than or less than 15 to 30 kg (35 to 55 lb), contact an Authorized Toro Service Dealer. Gearbox Models Only Gearbox-Oil Specifications Checking the Clutch Operation... - Page 41 Clean the drain and fill plugs and apply PTFE thread-sealing tape to the plug threads. Install the drain plug in the drain port (Figure 66). Slowly pour the specified oil into the fill port until the oil level is between 1/3 and 1/2 of the sight glass (Figure 66).
-
Page 42: Belt Maintenance
Belt Maintenance Inspecting the Belts Service Interval: After the first 25 hours—Inspect the belts and adjust as necessary (belt-drive models only). Every 40 hours—Inspect the belts and adjust as necessary (belt-drive models only). Park the machine on a level surface and shut off the engine. -
Page 43: Replacing The Belts
Remove the divider plate; refer to Removing the Divider Plate (page 28). Remove the bolt that secures the belt guide to the engine, and remove the belt guide (Figure 70). g020010 Figure 70 g020009 Figure 69 1. Bolt 2. Belt guide 1. - Page 44 Disconnect the wire from the spark plug; refer to Disconnecting the Spark-Plug Wire (page 28). Ensure that the clutch lever is in the O position. Align the rear belt to the rear groove in the engine pulley. Note: Do not align the rear belt to the idler pulley.
-
Page 45: Aligning The Pulleys
Shut off the engine. Loosen the locknuts and setscrews that secure the idler pulley to the idler shaft Check the air gap between the belt guide (Figure 73). and the belts. Using a soft-face mallet, tap the idler pulley Note: If the air gap is larger than 4.0 mm forward or backward along the idler shaft (5/32 inch), decrease the gap between the... -
Page 46: Paddle Maintenance
Remove the nuts and bolts that secure the grate to the drum, and remove the grate (Figure Figure 75, or Figure 76). g022161 Figure 75 Models 68014, 68017, 68021 g022159 Figure 74 Models 68013, 68016, 68020 g022163 Figure 76 Model 68024... -
Page 47: Cleaning
Cleaning Loosen the carriage bolts and nuts that secure the wipers to the paddle bladess (Figure 77). Note: If necessary, tip the drum to the dump Cleaning the Machine position to access the paddles. Regular cleaning and washing with mild detergent and water increases the life span of the machine. -
Page 48: Storage
Storage Note: Do not install the wire on the spark plug. Grease the machine; refer to Lubricating the For storage over 30 days, prepare the machine as Bearings and Seals (page 29). follows: Check and tighten all bolts, nuts, and screws. Remove dirt and grime from the external parts of Repair or replace any part that is damaged. -
Page 49: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action The engine does not start. 1. The fuel-valve lever is in the O 1. Move the fuel-valve lever to the O position. position. 2. The choke is closed 2. Open the choke when starting a hot engine. - Page 50 Problem Possible Cause Corrective Action The paddles rotate slowly when the clutch 1. The clutch lever is not adjusted 1. Adjust the belt tension. lever is in the O position (belt-drive correctly. models only). The paddles rotate slowly when the clutch 1.
- Page 51 While the exposure from Toro products may be negligible or well within the “no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
- Page 52 Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company. Australian Consumer Law: Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
