Item #1001 510 115

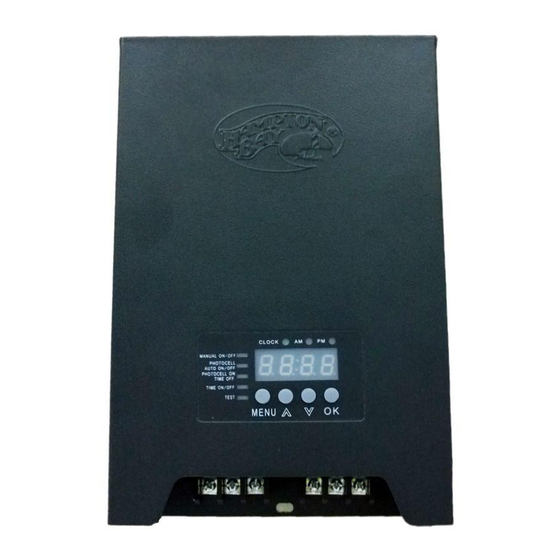

Model DIY-600PS
USE AND CARE GUIDE
TRANSFORMER
Questions, problems, missing parts? Before returning to the store,
call HamptonBay Customer Service
8 a.m. - 7 p.m., EST, Monday Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this transformer. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank
you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY DIY-600PS
Summary of Contents for HAMPTON BAY DIY-600PS
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this transformer. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank...
-
Page 2: Table Of Contents
Table of Contents Hardware Included ..............4 Table of Contents ............2 Safety Information ............2 Package Contents ..............4 Warranty ............3 Installation ..............5 What is Covered ..............3 Operation ..............8 What is Not Covered .............. 3 Troubleshooting ............ -
Page 3: Warranty
Warranty WHAT IS COVERED The manufacturer warrants this transformer to be free from defects in materials and workmanship for a period of two (2) years from date of purchase. This warranty applies only to the original consumer and only to products used in normal use and service. If this product is found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications, alterations, neglect or mishandling. -
Page 4: Pre-Installation
Pre-installation Use only CSA or UL approved low-voltage WARNING: cable. Failure to use at least 16 gauge minimum cable or install it as directed in these instructions may result in Risk of Fire or Electric Shock. Using large cable will ensure maximum light output. -
Page 5: Installation
Installation Connecting the Cable to the Preparing the Cable Transformer Being careful when splitting NOT to expose the copper wire, remove Lay the transformer on a flat, stable surface and insert the stripped the landscape wire insulation 1/2 in. from both wires and twist ends. end of one wire under the terminal clamping plate “COM”. - Page 6 Installation (continued) Placing Your Fixtures and Routing Attaching Your Fixtures the Cable Lay your fixtures (not included) out where you want to locate them. Turn the transformer on. Attach your fixtures to the cable to using Be sure they do not exceed the 600-watt rating of the transformer. cable connectors as shown.
- Page 7 Installation (continued) Mounting the Transformer Mounting the Photocell To mount directly to a wall surface use the included screws (AA) as Mount the photocell (B) bracket on a wall or other solid surface with shown, suitable for mounting within 12 in. to 48 in. (0.3 m to 1.2 m) the screws (BB) provided.
-
Page 8: Operation
Operation Setting the Clock Operating in Manual Mode This setting allows you to set the clock to local time. This setting allows you to immediately turn the lights on and turn them a) Press MENU until CLOCK LED indicator is lit and the digit indicator off when you no longer need them. - Page 9 Operation (continued) Setting the TIME ON/OFF Using the TEST function This setting allows you to control the time the lights turn on and This setting allows you to test your landscape lighting after when they will go off. installation. a) Press MENU until the TIME ON/OFF LED indicator is lit and press Press MENU until the TEST LED indicator is lit and press OK.
-
Page 10: Troubleshooting
Troubleshooting Problem Probable Cause Check that the transformer power is on. Check if there is a loose connection at the transformer screw All of the lights fail to work terminal with the cable. Check that the power switch is not in an OFF setting. Check the connector to make sure the wire barbs have pierced the landscape cable. - Page 11 Questions, problems, missing parts? Before returning to the store, call HamptonBay Customer Service 8 a.m. - 7 p.m., EST, Monday Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
Need help?
Do you have a question about the DIY-600PS and is the answer not in the manual?
Questions and answers
I have the 600 watt version transformer. Have been using BOTH 15v and 12v output lines successfully at the same time for well over a year. All of a sudden the 15v output doesn't work anymore. Try it on manual and it both 15v and 12v outputs WORK. My normal mode is sensor on/time off. what is going on? Why won't both outputs work when set to sensor(for on) and timer for OFF? Please advise.
The 15V output of the HAMPTON BAY DIY-600PS transformer may stop working in sensor mode if the photocell is mounted in an area with too much constant light. This can prevent the system from detecting dusk, so the lights do not switch on. In manual mode, the photocell is bypassed, which is why both outputs work.
This answer is automatically generated
@Mr. Anderson
Mr. Anderson: Thank you for your response, but my sensor is working fine when set to Sensor/Timer off setting. It just doesn't turn on the 12v. outputs. Really strange. Turns on the 15v outputs just fine, but recently has stopped turning on the 12v outputs. Sounds like an internal thing to me. Care to take a guess? -Michael-
I just looked up WHEN I purchased the unit. Funny how time flies in ones memory. Turns out I purchased the 600 watt unit on June 16th, 2021 ... so this was not a ONE YEAR old unit like I implied. The unit has worked flawlessly for almost 4 years, but now this glitch. Hate to tie all the 15v and 12v items together and run them all off the 15v side ... as it still works perfectly in sensor/timed off mode. Had to confess up. Probably out of warantee by now. Looking for your advice. Thanks. -M. Allsup-
This is to acknowledge that I found the problem was HUMAN ERROR. I won't embarrass myself by explaining. suffice to say the unit is working perfectly now. Forget all the garbage I asked. It had no merit. Thank you for your response.
