Case DV209D Service Manual

Case DV209D Service Manual

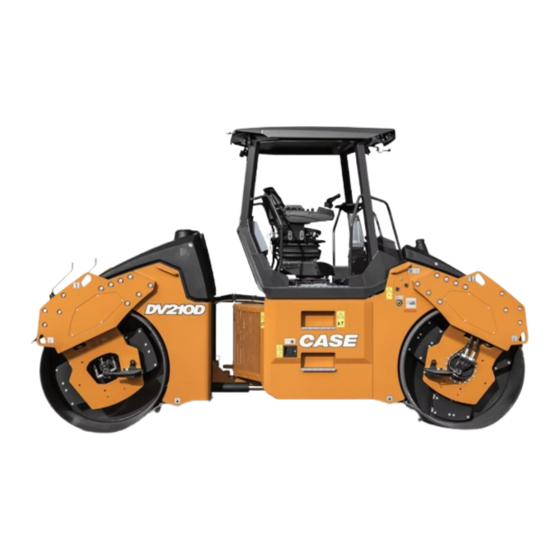

Double drum compactor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Double Drum Compactor
DV209D - PIN DDDD209DNGNTX2002 and above;
DV210D - PIN DDDD210DNGNTP2003 and above;
DV209CD Combi - PIN DDDD209CDNGNTG2001 and above;
DV210CD Combi - PIN DDDD210CDNGNTH2001 and above
SERVICE MANUAL
DV209D
DV210D
DV209CD Combi
DV210CD Combi
Tier 4B (final)
Part number 48123413
2
nd
Replaces part number 48032926
edition English
March 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV209D and is the answer not in the manual?

Questions and answers

Related Manuals for Case DV209D

Summary of Contents for Case DV209D

  • Page 1 DV210D DV209CD Combi DV210CD Combi Tier 4B (final) Double Drum Compactor DV209D - PIN DDDD209DNGNTX2002 and above; DV210D - PIN DDDD210DNGNTP2003 and above; DV209CD Combi - PIN DDDD209CDNGNTG2001 and above; DV210CD Combi - PIN DDDD210CDNGNTH2001 and above SERVICE MANUAL Part number 48123413...
  • Page 2 SERVICE MANUAL DV209CD Combi DV209CD Combi Asphalt Compactor - Tier 4B (final) [DDDD209CDNGNTG2001 - ] DV209D TIER 4B (FINAL) Double Drum Compactor [DDDD209DNGNTX2002 - ] DV210CD Combi DV210CD Combi Asphalt Compactor - Tier 4B (final) [DDDD210CDNGNTH2001 - ] DV210D TIER 4B (FINAL) Double Drum Compactor [DDDD210DNGNTP2003 - ] 48123413 29/03/2017 Find manuals at https://best-manuals.com...
  • Page 3 Contents INTRODUCTION Engine..................10 [10.001] Engine and crankcase ............. 10.1 [10.216] Fuel tanks .
  • Page 4 [55.050] Heating, Ventilation, and Air-Conditioning (HVAC) control system....55.2 [55.100] Harnesses and connectors............55.3 [55.301] Alternator .
