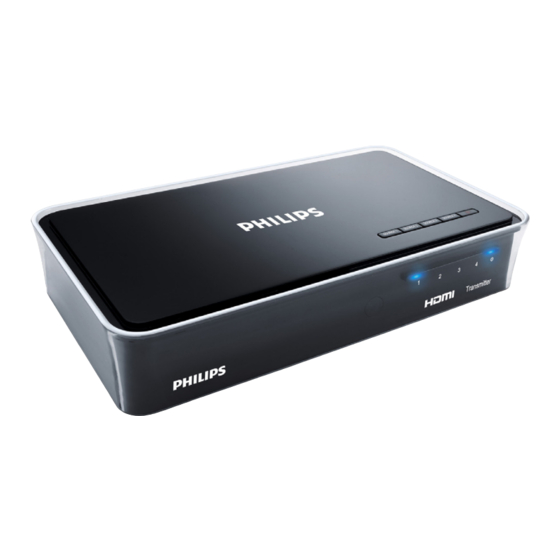

Philips SWW1800/12 User Manual
Philips SWW1800/12 User Manual

Philips SWW1800/12 User Manual

Wireless hdtv link
Hide thumbs Also See for SWW1800/12:

Advertisement

Quick Links

Register your product and get support at
www.philips.com/welcome
SWW1800/12
EN User manual

Advertisement

Table of Contents
loading

Summary of Contents for Philips SWW1800/12

  • Page 1 Register your product and get support at www.philips.com/welcome SWW1800/12 EN User manual...
  • Page 3: Table Of Contents

    Contents 1 Important Safety 2 Your SWW1800 What is in the box Overview 3 Installation Connect the transmitter to your HD devices Connect the receiver to the HDTV set 9 Install remote control batteries 4 Activate the SWW1800 function and set up the link Turn on the power of your HDTV LED indicator status of the receiver Activate the wireless link...
  • Page 4: Important

    1 Important Safety Know these safety symbols This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The ‘exclamation point’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.
  • Page 5: Declaration Of Conformity

    One of Philips’ leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.
  • Page 6 consequences for the environmental and human health. Environmental information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company.
  • Page 7: Your Sww1800

    2 Your SWW1800 Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips. com/welcome. What is in the box Note • Make sure you have all these items in the box.
  • Page 8: Front View

    Front view Power indicator 1/2/3/4 Source indicators Top view SOURCE 1 SOURCE 2 Power button with LED indicators 1/2/3/4 Source selection buttons Rear view HDMI IN Component YPbPr and L/R Audio IN Power IN connector SWW1800 Receiver Front view Power indicator Top view POWER Transmitter...
  • Page 9: Installation

    3 Installation Connect the transmitter to your HD devices You can connect 4 video sources to the transmitter at the same time: two with the HDMI connection and two with the component connection, but only one source can be selected and played. DC 5V Connect video source to the transmitter using the HDMI cable.
  • Page 10: Install Remote Control Batteries

    Install remote control batteries Caution • Risk of explosion! Keep batteries away from heat, sunshine or fire. Never discard batteries in fire. • Risk of decreased battery life! Never mix different brands or types of batteries. • Risk of product damage! When the remote control is not used for long periods, remove the batteries.
  • Page 11: Activate The Sww1800 Function

    4 Activate the SWW1800 function and set up the link Turn on the power of your HDTV Go to the source menu under the settings menu of your HDTV. Select the HDMI input to which the receiver is connected.. DC 5V Note •...
  • Page 12 Note • In standby mode, a red power LED displays on the transmitter. • Depending on equipment and the input selected, between input selection/start-up and being able to see the image on your TV can take up to 15 seconds. Establish the link between the transmitter and receiver A flashing blue power LED displays until...
  • Page 13: Enter The Standby Mode

    Note • It takes longer time to switch from the HDMI/component connection to the HDMI connection (around 10 seconds) than from the component connection to the HDMI/ component connection to the component connection. • For more information on the LED indicator status, see the section on “LED indicator status of the transmitter”.
  • Page 14 To enter the listen mode, press remote control of your HDTV/projector to switch it off. The HDTV/projector and the HD » device are in standby mode. The LED indicators of the transmitter » and receiver become solid purple. Note • The power consumption in the listen mode is higher than the power consumption in the sleep mode.
  • Page 15: Position The Transmitter And Receiver

    5 Position the transmitter and receiver To ensure the units are located at the optimal distance without any interference, you need to: • Place the units in the same room. • This system is built to transfer the HD signal up to 20m or 66 ft. Its performance can be affected by its environment and the obstruction between the transmitter and receiver.
  • Page 16: Wallmount The Receiver

    6 Wallmount the receiver You can either place the receiver near the HDTV or mount it on the wall. Choose a spot near the TV. Drill two holes in the wall. Ensure the distance between the two holes is 4.5mm. Punch the supplied plastic wall anchors into the two holes on the wall.
  • Page 17: Technical Data

    7 Technical data Supported resolution Video resolution frequency 480i 720(1440)x480i @ 59.94Hz 480i 720(1440)x480i @ 60Hz 480p 640x480p @ 59.94/60Hz 480p 720x480p @ 59.94Hz 480p 720x480p @ 60Hz 576i 720(1440)x576i @ 50Hz 576p 720x576p @ 50Hz 720p 1280x720p @ 50Hz 720p 1280x720p @ 59.94/60Hz...
  • Page 18 Transmitter interfaces A/V interfaces YPbPr input Two sets of RCA connectors Analog audio L/R Two sets of RCA input connectors HDMI input Two (Type A) HDMI output Control signal interfaces IR sensor Power interface Power input 5V DC jack Switches Front power switch Source selection switch LEDs...
  • Page 19: Troubleshooting

    8 Troubleshooting There is no video displayed on my TV screen. Verify the POWER LED and SOURCE LED indicator on the transmitter: Flashing blue power LED • Ensure the transmission range between receiver and transmitter is not over 20m or 66ft transmission distance (with no obstruction between the transmitter and receiver).
  • Page 20 I cannot hear any sound or the sound is poor, what do I do? • Ensure the TV volume control is adjusted correctly. • Ensure the TV volume is not set to minimum or the sound is not muted. • Ensure the audio cables of the transmitter are connected correctly.
  • Page 21: Glossary

    9 Glossary ADSL (Asymmetric Digital Subscriber Line) It is a data communications technology that enables faster data transmission over high- speed broadband networks. CEC (Consumer electronics Control) CEC is part of the HDMI standard. If CEC is available in the source and HDTV devices in your home setup, the devices will be able to pass commands through the HDMI connection.
  • Page 22 0682 © 2009 Koninklijke Philips Electronics N.V. All rights reserved. Printed in Taiwan SWW1800_12_UM_EN_V3.0...
