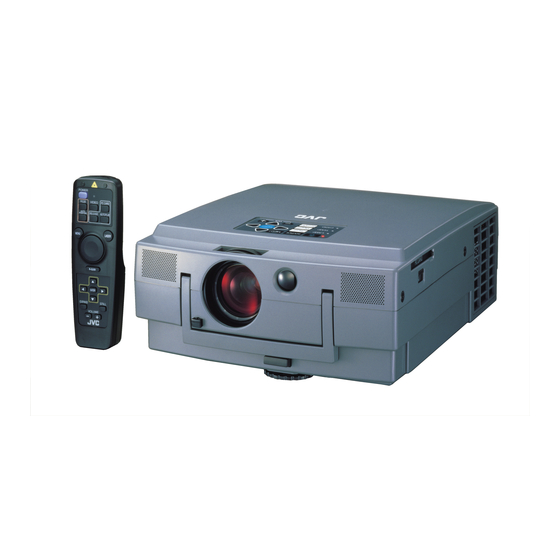

LX-D1000
LCD
Projector
User Manual

Advertisement

Table of Contents
loading

Related Manuals for JVC LX-D1000

Summary of Contents for JVC LX-D1000

  • Page 1 LX-D1000 Projector User Manual...
  • Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...

  • Page 3: Table Of Contents

    Contents Important safeguards ................4 Overview of the projector ..............6 Overview of the remote control ............8 Battery installation ..................... 9 Preparing the projector for operation ..........10 Basic connections ................12 Projector + AV equipment ................. 12 Cables and adapters ..................12 Projector + IBM PC or IBM PC compatibles ............

  • Page 4: Important Safeguards

    Important safeguards Power sources PLEASE READ ALL THESE INSTRUCTIONS RE- This projector should be operated only from the GARDING YOUR LCD PROJECTOR AND RETAIN type of power source indicated on the marking THEM FOR FUTURE REFERENCE. FOLLOW ALL label. If you are not sure of the type of power, WARNINGS AND INSTRUCTIONS MARKED ON please consult your appliance dealer or local THE LCD PROJECTOR.
  • Page 5 WARNING: Unplug immediately if there is Do not turn off the main power abruptly or unplug the projector something wrong with your projector. during operation. Do not operate if smoke, strange noise or odor comes It can lead to lamp breakage, fire, electric shock or out of your projector.

  • Page 6: Overview Of The Projector

    Overview of the projector focus ring Use to adjust the focus by turning it. See page 16. zoom ring Use to magnify (or reduce) by turning it. See page 16. remote control sensor (Front / Rear) exhaust slits PC card eject Press to eject the PC card.
  • Page 7 Left side MAIN power RGB-OUT LINE-OUT RGB-IN LINE-IN I : ON S-VIDEO VIDEO L-AUDIO-R (MONO) O : OFF INPUT power jack See page 11. PC analog RGB input (mini D-SUB 15P) Use to input RGB signal from PC or component signal from DVD etc.

  • Page 8: Overview Of The Remote Control

    Overview of the remote control The buttons with mark work as same as the buttons on the projector. POWER * power card auto play VIDEO PC CARD Press to start auto play function of the * input source PC CARD. See page 24. AUTO RELEASE AUTOPLAY...

  • Page 9: Battery Installation

    Battery installation Use two AA size batteries. 1. Remove the back cover of the remote control by pushing the battery compartment door in the direction of the arrow. 2. Load the batteries making sure that they are positioned correctly (+ to +, and - to -). 3.

  • Page 10: Preparing The Projector For Operation

    Preparing the projector for operation Orientation of the projector Picture size can be set by changing the distance between the screen and the projector. Front projection To find the approximate distance screen between the projector and screen: Multiply the width of the screen 2.0 (max.) , Multiply the width of the screen 2.5 (min.).
  • Page 11 Adjusting the angle of projection Getting ready for projection Screen on a flat wall with a 90 degree angle to the floor 1. Connect the power cord provided to the projector. by adjusting two Adjustment feet on the bottom of the 2.

  • Page 12: Basic Connections

    Basic connections This projector can be connected to equipment such as VCRs, video cameras, videodisc players, and personal comput- ers having analog RGB input. Important: • Make sure that your equipment is turned off before connection. • Match the color of video and audio plugs on the AV cable with each terminal. •...

  • Page 13: Projector + Ibm Pc Or Ibm Pc Compatibles

    Projector + IBM PC or IBM PC compatibles Make sure that your equipment is turned off before connection. Important: • Connectors or analog RGB output adapters may be necessary depending on the personal computer connected to this projector. Please contact your dealer. •...

  • Page 14: Projector + Macintosh

    Basic connections (continue) Projector + Macintosh Make sure that your equipment is turned off before connection. Important: • A monitor output adapter is necessary for a Macintosh if it has no video port. Please contact your dealer. • If you use the MAC adapter for RGB cable provided, set the dip switch to the appropriate position. See page 12. •...

  • Page 15: To Operate Projector Power On

    To operate projector power ON Numbers 1 - 9 correspond to the instruction numbers below. MENU SOURCE LAMP RGB-OUT LINE-OUT RGB-IN LINE-IN ENTER S-VIDEO VIDEO L-AUDIO-R (MONO) INPUT TEMP VIDEO CARD PC CARD 1. Turn on the equipment connected to the projector. Important: •...
  • Page 16 To operate projector power ON (continue) AUTO POSITION button • In cases where the main power switch is acciden- When the source is selected to RGB and the image is tally turned off when either the intake/exhaust not in the right place, set to display as at the fan or the power source lamp is in operation, allow brightest signal as possible, then press the AUTO the unit to cool down for 10 minutes with the...

  • Page 17: Menu Operation

    Menu operation ± 10 PICTURE CONTRAST ± 10 BRIGHTNESS COLOR TEMP STANDARD ± 10 HIGH CONTRAST R ± 10 CONTRAST B ± 10 USER BRIGHTNESS R ± 10 BRIGHTNESS B ± 10 TINT ± 10 COLOR ± 10 SHARPNESS PRESENTATION ZOOM MODE 1 - 4 POSITION...
  • Page 18 Menu setting (continue) 1 PICTURE CONTRAST ..Adjusts the picture contrast. The contrast becomes higher as the number increases. BRIGHTNESS ..Adjusts image brightness. The image becomes brighter as the number increases. COLOR TEMP ..Adjusts color temperature. TINT ....Adjusts the color balance in the image. The color balance of the image shifts green as the number increases and shifts to purple as the number decreases (only when NTSC or 4.43 NTSC is selected).
  • Page 19 5 SIGNAL AUTO ....Use to select AUTO, USER 1 or USER 2. HORIZ. POSITION ..Use to adjust the horizontal position of the image. VERT. POSITION ..Use to adjust the vertical position of the image. FINE SYNC..Use to synchronize the projector with PC input signals so that the image is not blurred.

  • Page 20: Picture Adjustment

    Picture adjustment Adjustment from personal computer PLL in SIGNAL - USER menu. HOLD ... Select ON, and adjust BEGIN or END for Although this projector sets proper signal settings set image which top part is the least curved. automatically for the image signal from personal PLL ..
  • Page 21 Specification of RGB signals in each computer mode of the projector Signal mode resolution horizontal Vertical Normal Native (H x V) frequency (kHz) frequency (Hz) (H x V) (H x V) TV60 – 15.73 59.94 1024 x 768 640 x 438 TV50 –...

  • Page 22: Advanced Feature For Presentation

    Advanced feature for presentation Still Expand How to stop the picture temporarily (still picture) By pressing the EXPAND button on the remote con- 1. Press the STILL button on the remote control. trol, you can view the detailed image of the picture. The picture will stop temporaly.

  • Page 23: Pc-Card

    PC-CARD The projector can play back an image by using the PC- Play back CARD. 1. Insert the prerecorded PC-card. 2. Press the CARD button. Using the PC-CARD The PC-CARD index display appears on the screen. Use only the flash memory card of PCMCIA•ATA com- patible type II.
  • Page 24 PC-CARD (Continue) • A gray frame will appear during auto play. To automatically change the image, follow the steps • Button operation will only work when the gray as shown below. frame appears on screen. Button operation is not 1. Press the MENU button. possible while the red frame is on-screen.

  • Page 25: Advanced Feature With Pc

    Advanced feature with PC PCV (PC Card Viewer) Installation of software PC-CARD viewer (PCV) is a utility software that lets For Windows 95 or Windows NT 4.0 you record and project an image to a PC-CARD by us- 1. Start up Windows. ing a personal computer.
  • Page 26 Advanced feature with PC (Continue) Help Topics ....Offers you an index to topics Starting up PCV (For Windows) on which you can get help. For Windows 95 or Windows NT Advanced settings ..Displays a detail setting of 1. Start up Windows. this application.
  • Page 27 7. Click OK button. Recording the image (For Windows) When you wish to record the image of the display to a 8. Repeat steps 4 to 7 for other images. PC-CARD. 9. Click the return button. 1. Choose the PC-CARD drive using the drive bar The presentation window will open.
  • Page 28 Advanced feature with PC (Continue) Preview an image Editing the presentation (For Windows) 1. Double click the image. Delete the image The preview image appears on the displays. 1. Select the image to be deleted. 2. Choose [Delete image...] under the [File] menu. •...
  • Page 29 4. Click the properties button. Starting up PCV (For Macintosh) 1. Start up Macintosh. 2. Insert the PC card to the PC Card slot on the per- sonal computer. 3. Double click the [PCV for Mac] icon. Command reference The command references are as shown below: File Create New presentation .
  • Page 30 Advanced feature with PC (Continue) B. Move images When you wish to record the image from existing files. You can move images to other positions. 1. Choose [Create New presentation...] under the 1. Select an image to be moved. [File] menu. The new presentation window will open.

  • Page 31: Mouse Remote Control

    Mouse remote control By connecting to personal computer through the PS/2 (or ADB) port, you can operate your computer with the projector remote control. Connection Projector + IBM PC or IBM PC compatibles to RS-232C terminal to mouse (PS/2) port PS/2 adapter RS-232C cable Mini DIN 6P...

  • Page 32: Replaccement Of A Light Source Lamp

    Replacement of a light source lamp The light source lamp is designed to project the image 4. Hold onto the projector by the handle as you pull on the LCD panels. When the light source lamp no out the lamp. longer functions, replace it with a new one to ensure Once the lamp has been removed, do not spill liquid optimum performance.
  • Page 33 How to reset the operation time meter Plug in the power cord, switch on the projector and re- set lamp time by pressing the $, % and POWER but- tons simultaneously. Caution: • The lamp you have removed, do not spill liquids on it, place it near flammable objects or where children can touch it.

  • Page 34: Maintenance

    Maintenance Caution: Caution: Be sure to turn off the projector and unplug the power Be sure to use the projector with an air-filter. If not, cord from the wall outlet before you perform any main- dust may get inside the projector, causing a fire or a tenance on the projector.

  • Page 35: Troubleshooting

    Troubleshooting The following offers solutions to some of the common problems you may encounter. We suggest that you consult this chart before contacting your dealer. CAUSE PROBLEMS POSSIBLE SOLUTIONS • The air intake vents, exhaust vents or air filter • Remove the object. is clogged with dust or some object.

  • Page 36: Indicators

    Indicators The projector has three indicators each of which shows the working condition of the projector. The following offers solutions to possible problems. If a problem persists, turn the projector off and consult your dealer. MENU SOURCE LAMP ENTER TEMP VIDEO CARD PC CARD...

  • Page 37: Specifications

    Specifications Type LCD projector Model LX-D1000 Rated power supply AC100 ~ 240V, 50 / 60Hz Rated input 2.3A 0.9-inch LCD panel: 3 pieces (for R, G, B) LCD panels 1,024 × 768 = 786,432 pixels Pixels Total 2,359,296 pixels Active pixel rate: 99.99 % or more (each panel) F 1.8~2.1...
