Toro Style Lites Installation Manual

The most important
part of installing the
fixtures is making
sure their metal pins
pierce the wire inside
the cable:
This
Not This
You'll know they're
well-aligned and the
wire was pierced
when the light
comes on.
MODEL NO. 52201 39000001 & Up
®
Style Lites™ Floodlights

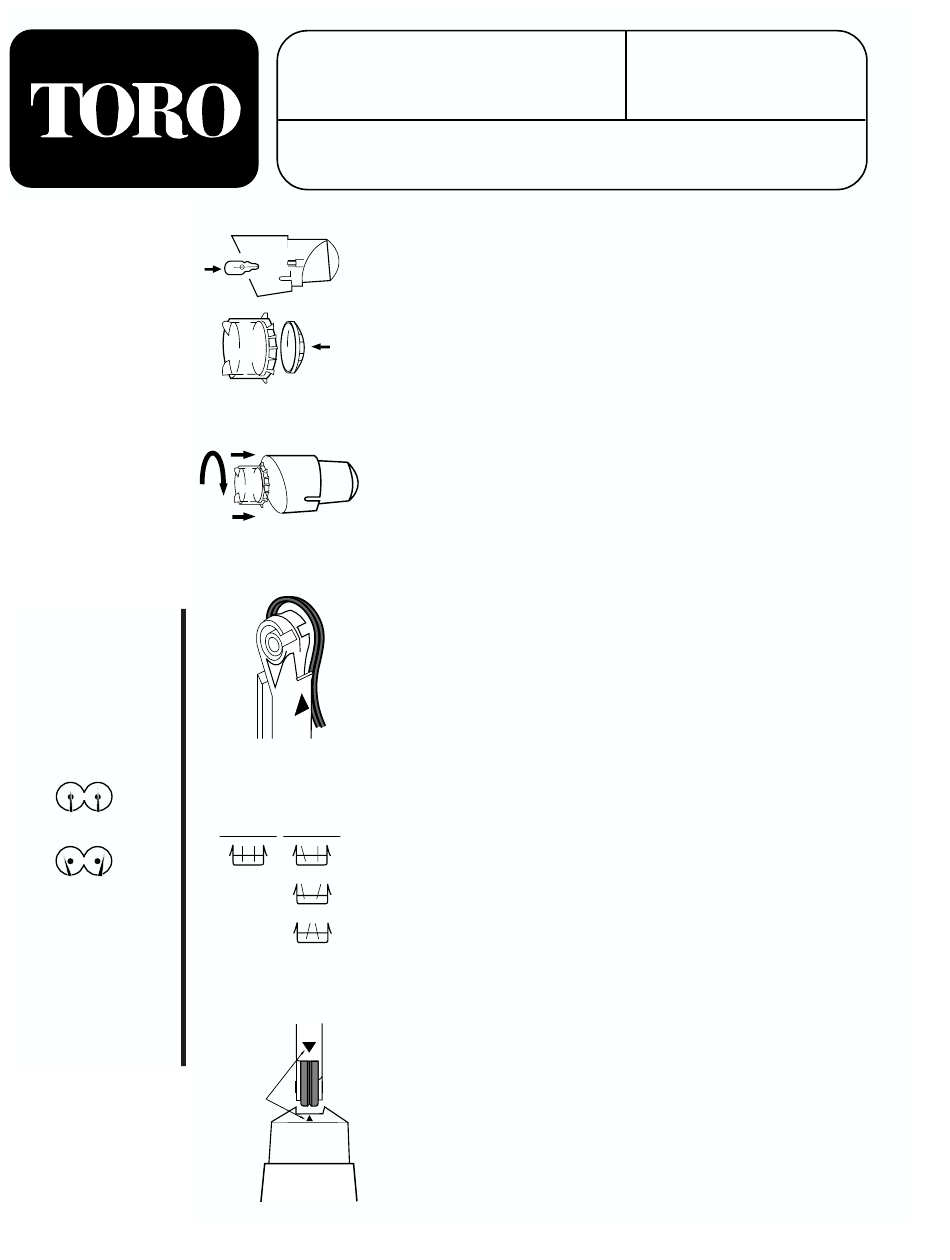

1. Press the bulb into the fixture contacts.
2. Snap the silver reflector into the clear lens.
3. Install the fixture lens/reflector.
4. Prepare the stake.
Correct Misaligned
Piercing Piercing
5. Make sure the piercing points in the fixture are
Points Points
6. Align the side of the stake with the imprinted triangle to
Imprinted
triangles
Install the clear lens/reflector by pushing down on the lens with
slight pressure while turning the lens clockwise. The tabs on the
lens will snap into the three slots on the fixture. Turn the lens until
the movement stops.
Loop the cable around the channels in the stake. Make certain the
cable is centered around the stake head and is tight. If the cable is
loose, pull the ends to eliminate the slack.
straight.
Make sure the brass piercing points in the cable channel at
the base of the fixture are straight. Even a slight bend may
result in contact not being made with the wire.
the top of the fixture head with the imprinted triangle.
FORM NO. 3315-919
INSTALLATION
GUIDE
