  • Page 1 START Click the button and follow the in- structions. CATEYE ADVENTURE CC-AT200W Quick Start...

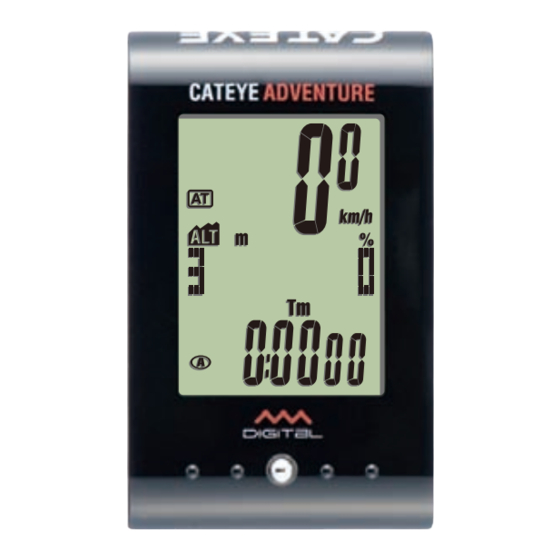

  • Page 2 Thank you for purchasing our cyclocomputer CATEYE ADVENTURE. This Quick Start Manual explains how to set up the computer and how to install the unit on your bicycle. Please set up the unit according to the specified procedure, then it will be ready for use as a cyclocomputer.
  • Page 3 This PDF contains a movie file. When you click on the movie screen, a message regarding security appears. Click the “Trust in the text” or “Play” button to close the message. Click the screen again to play the movie. Next...

  • Page 4: Setting Up The Computer

    CATEYE ADVENTURE Return to a Cover Quick Start Manual Contents Click the item you wish to view. Setting up the computer How to install the bracket (Movie) How to install the speed sensor (Movie) Sea level altitude correction...

  • Page 5: Operation Of Buttons

    Operation of buttons Set up the computer by operating the buttons as follows. Check the button position before you start setting up. MODE Click Press the MODE button on the back of the computer. SSE + MODE Click Press the SSE button on the face of the computer and the MODE button on the back simultaneously.
  • Page 6 CATEYE ADVENTURE Quick Start Manual Formatting operation Setting the speed unit Setting the temperature unit Entering the tire circumference Searching the sensor ID Setting the clock display Setting the hour Setting the minute Measuring screen (Setup completed) Formatting operation MENU...
  • Page 7 CATEYE ADVENTURE Quick Start Manual Formatting operation Setting the speed unit Setting the temperature unit Entering the tire circumference Searching the sensor ID Setting the speed unit Setting the clock display Setting the hour Setting the minute Measuring screen (Setup completed) Setting the speed unit When the MODE button is pressed, either “km/h”...

  • Page 8: Setting The Temperature Unit

    CATEYE ADVENTURE Quick Start Manual Formatting operation Setting the speed unit Setting the temperature unit Entering the tire circumference Searching the sensor ID Setting the tempera- ture unit Setting the clock display Setting the hour Setting the minute Measuring screen...

  • Page 9: Entering The Tire Circumference

    CATEYE ADVENTURE Quick Start Manual Formatting operation Setting the speed unit Setting the temperature unit Entering the tire circumference Searching the sensor ID Entering the tire circumference Setting the clock display Tire circum- Setting the hour ference refer- ence table...

  • Page 10: Searching The Sensor Id

    CATEYE ADVENTURE Quick Start Manual Formatting operation Setting the speed unit Setting the temperature unit Entering the tire circumference Searching the sensor ID (1/2) Under going search of the sensor ID Setting the clock display Searching the Setting the hour...
  • Page 11 CATEYE ADVENTURE Quick Start Manual Formatting operation Setting the speed unit Setting the temperature unit Entering the tire circumference Searching the sensor ID (2/2) Searching of sensor ID completed Setting the clock display Setting the hour Setting the minute Measuring screen...

  • Page 12: Setting The Clock Display

    CATEYE ADVENTURE Quick Start Manual Formatting operation Setting the speed unit Setting the temperature unit Entering the tire circumference Searching the sensor ID Clock display Setting the clock display Setting the hour Setting the minute Measuring screen (Setup completed) Setting the clock display When the MODE button is pressed, either “12h”...

  • Page 13: Setting The Hour

    CATEYE ADVENTURE Quick Start Manual Formatting operation Setting the speed unit Setting the temperature unit Entering the tire circumference Searching the sensor ID Setting the clock display Setting the hour Setting the minute Measuring screen (Setup completed) Setting the hour Pressing the MODE button increases the value flashing (“Hour”...

  • Page 14: Setting The Minute

    CATEYE ADVENTURE Quick Start Manual Formatting operation Setting the speed unit Setting the temperature unit Entering the tire circumference Searching the sensor ID Setting the clock display Setting the hour Setting the minute Measuring screen (Setup completed) Setting the minute Pressing the MODE button increases the value flashing (“Minute”...
  • Page 15 CATEYE ADVENTURE Quick Start Manual Formatting operation Setting the speed unit Setting the temperature unit Entering the tire circumference Searching the sensor ID Measuring screen Setting the clock display Setting the hour Setting the minute Measuring screen (Setup completed) Now, setup of the computer is completed.
  • Page 16 Operation of buttons The sea level altitude is corrected by operation of buttons as follows. “Sea level altitude correction” describes the case when the computer is installed on the bracket. Operation of the MODE button Click Press around the dots on the face of the computer, without touching the SSE but- ton.
  • Page 17 CATEYE ADVENTURE Quick Start Manual This unit determines the altitude by converting the change in atmo- Selecting the correction spheric pressure and temperature, therefore it may cause deviation method from the actual sea level altitude depending on the ever-changing atmospheric pressure and temperature. It is recommended to correct the sea level altitude just before measurement.
  • Page 18 CATEYE ADVENTURE Quick Start Manual The following two methods can be used for the sea level altitude correction. Selecting the correction method • ADJUST (Sea level altitude correction) Enter the altitude at the current point. Enter the actual value at the point where the sea level altitude is...
  • Page 19 CATEYE ADVENTURE Quick Start Manual Selecting the correction method (1/2) Entering the sea level altitude Applying the sea level altitude Correction method Selecting the correction method When the MODE button is pressed, either “ADJUST” or “HOME” is selected. Select the correction method of your choice.
  • Page 20 CATEYE ADVENTURE Quick Start Manual Selecting the correction method (2/2) Entering the sea level altitude Applying the sea level altitude Correction method Selecting the correction method After selecting, press the SSE button and the MODE but- ton simultaneously to proceed to the next step “Entering the sea level altitude”.
  • Page 21 CATEYE ADVENTURE Quick Start Manual Selecting the correction method Entering the sea level altitude (1/2) Applying the sea level altitude Selection of positive or negative symbol Entering the sea level altitude When the MODE button is pressed, “+” or “-” is selected.
  • Page 22 CATEYE ADVENTURE Quick Start Manual Selecting the correction method Entering the sea level altitude (2/2) Applying the sea level altitude Sea level altitude Entering the sea level altitude Enter the sea level altitude (a value with 4 digits) of the current point.
  • Page 23 CATEYE ADVENTURE Quick Start Manual Selecting the correction method Entering the sea level altitude Applying the sea level altitude Sea level altitude correction Applying the sea level altitude Once the value you wish to set is displayed, press and hold the MODE button to return to the measuring screen.
  • Page 24 CATEYE ADVENTURE Quick Start Manual Selecting the correction method (2/2) Entering the home altitude Applying the home altitude Correction method Selecting the correction method To set a new home altitude, press the SSE button and the MODE button simultaneously to proceed to the next step “Entering the home altitude”.
  • Page 25 CATEYE ADVENTURE Quick Start Manual Selecting the correction method Entering the home altitude (1/2) Applying the home altitude Selection of positive or negative symbol Entering the home altitude When the MODE button is pressed, “+” or “-” is selected. Select either the positive or negative symbol for the value you wish to set.
  • Page 26 CATEYE ADVENTURE Quick Start Manual Selecting the correction method Entering the home altitude (2/2) Applying the home altitude Home altitude Entering the home altitude Enter the sea level altitude (a value with 4 digits) you wish to set as a home altitude, such as the altitude of your home.
  • Page 27 CATEYE ADVENTURE Quick Start Manual Selecting the correction Selecting the correction method method Entering the sea level Entering the home altitude altitude Applying the sea level Applying the home altitude altitude Home altitude Applying the home altitude Once the value you wish to set is displayed, press and hold the MODE button to return to the measuring screen.
  • Page 28 CATEYE ADVENTURE Quick Start Manual Selecting the correction method Entering the home altitude Applying the home altitude Home altitude Applying the home altitude Press and hold of the MODE button to return to the mea- suring screen. The altitude you set is applied to the home altitude on the measuring screen, and the sea level altitude correction is completed.
  • Page 29 CATEYE ADVENTURE Return to Contents Quick Start Manual How to install the bracket...
  • Page 30 CATEYE ADVENTURE Return to Contents Quick Start Manual How to install the speed sensor...

  • Page 31: Tire Circumference Reference Table

    CATEYE ADVENTURE Quick Start Manual Tire circumference reference table ETRTO Tire size L (mm) ETRTO Tire size 47-203 12x1.75 40-406 20x1.50 54-203 12x1.95 47-406 20X1.75 40-254 14x1.50 1020 50-406 20x1.95 47-254 14x1.75 1055 28-451 20x1-1/8 40-305 16x1.50 1185 37-451 20x1-3/8 47-305 16x1.75...
