L8542910
07/2019 rev. 6
BRAINY
UNIONE NAZIONALE COSTRUTTORI
AUTOMATISMI PER CANCELLI, PORTE
SERRANDE ED AFFINI
IT
EN
DE
FR
ES
PL

Advertisement

loading
Need help?

Need help?

Do you have a question about the BRAINY and is the answer not in the manual?

Questions and answers

Related Manuals for Beninca BRAINY

Summary of Contents for Beninca BRAINY

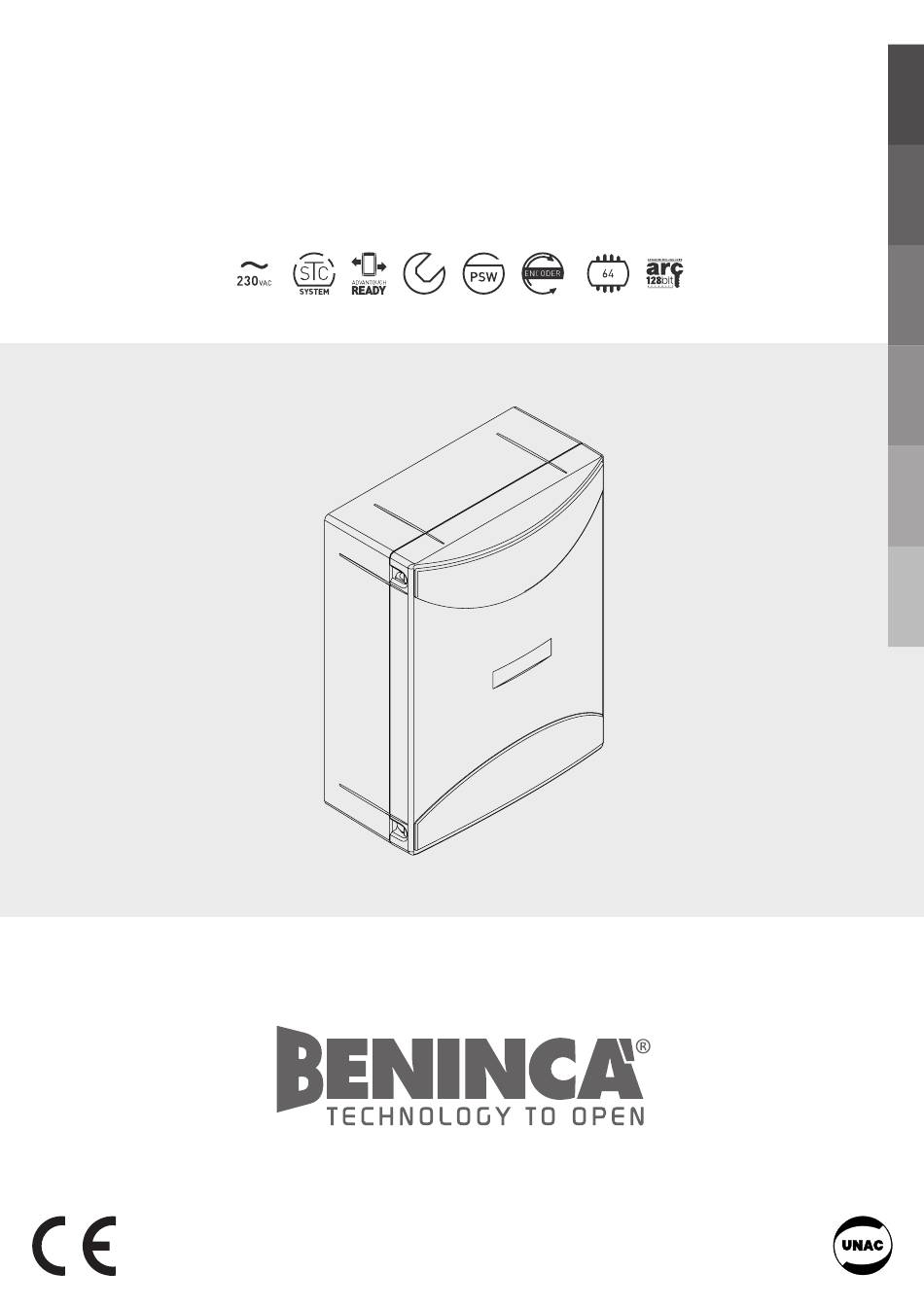

  • Page 1 L8542910 07/2019 rev. 6 BRAINY UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
  • Page 2 Fig. 1 R A D I O AUX2 J2 DAS Close DAS 8K2 Code _ _ _ _ J2 DAS 24Vac AUX1 Open Lock DAS N.C. 500mA max 12Vdc Encoder M1 Encoder M2 G ND 115/230Vac 50/60Hz LAMP 230Vac Encoder M1 Encoder M2 + s - + s -...
  • Page 3 Fig. 2 PHOTO-TEST OPEN/CLOSE CLOSE 31 32 33 31 32 33 SCA 24Vac 24Vac NC NO 24Vac 24Vac NC NO 24Vac 24Vac 3W max 1A max BAR-TEST 24 25 26 RF.+ SUN PANEL J1 Close SC-RF J1 Open DEFAULT 12/24 BZ-W1-W2 J2 DAS CLOSE...
  • Page 4 Display OFF Power ON Firmware Ver. (3s) v1. 0 5 8888 Diagnostic IBCA tped PMO1 PMC1 PMO2 PMC2 tdmo tdmc ltca tloc 1mot TSM1 TSM2 cvar Pso1 mloc PSc1 PSO2 tst1 PSC2 tst2 SEAU tst3 radi SEAR TINC BLCC horn BLCO...
  • Page 5 Schema menu di programmazione - Menu programming layout Diagramm Programmiermenü - Menu de programmation Menú de la carta de programación - Układ menu programowania RADI PUSH PUSH PUSH PUSH N Cycle AUTO PUSH OPEN/CLOSE Nman 0012 3456 MACI RE-ENTER CODE 0000 9000 9C5a...
  • Page 6 WARNING The product shall not be used for purposes or in ways other than those for which the product is intended for and as described in this manual. Incorrect uses can damage the product and cause injuries and damages. The company shall not be deemed responsible for the non-compliance with a good manufacture technique of gates as well as for any deformation, which might occur during use.

  • Page 7: Input/Output Functions

    BRAINY CONTROL UNIT INPUT/OUTPUT FUNCTIONS N° Terminals Function Description 1-2-3 Power supply Input 230 Vac ±10% 50/60Hz (1-GND/2-Phase/3-Neutral) 4-5-6 Motor 1 Connection of motor 1: (4-start/5-Com/6-start) 7-8-9 Motor 2 Connection of motor 2: (7-start/8-Com/9-start) 10-11 Blinking light Connection of blinking light 230Vac 40W max.
  • Page 8 3) Fixed code transmitters may only be used in conjunction with Rolling code HCS transmitters, bringing the logic CVAR OFF. They are, therefore, not usable in combination with the ARC transmitters. If the first rolling code transmitter stored is an ARC CVAR the logic is inoperative.
  • Page 9 Motor 1 slowing time Regulates the duration of the slowing phase of motor 1 on opening and closing.Value is TsM1 0-99-(0%) calculated as a percentage on the space covered during the complete operation. 0 = slowing time disabled. Motor 2 slowing time Regulates the duration of the slowing phase of motor 2 on opening and closing.
  • Page 10 Enables or disables the block maintaining function. Recommended for hydraulic motors to keep the leaf resting against the mechanical stop block. (OFF) On: Block maintaining function enabled. Every 2 hours the control unit makes a closing manoeuvre with a duration of about 3s to keep the leaf in contact. Off: Block maintaining function disabled.
  • Page 11 Enable or disable the BAR input TEST. The activation of the TEST function is only possible with the use of the articles SC.RF and RF / RF.SUN, consult the specific instructions. TST3 (OFF) On: Test is enabled. If the test is negative, no operation is performed. See Fig.2 “BAR- TEST”.
  • Page 12 MAINTENANCE CYCLES (maci) This function enables to activate the maintenance request notice after a number of manoeuvres determined by the installer. To activate and select the number of manoeuvres, proceed as follows: Press button <PG>, the display will show OFF, which indicated that the function is disabled (default value). With the buttons <+>...

  • Page 13: Types Of Installation

    PHOT-O STOP PHOT-C TECHNICAL DATA Mains power supply 230 Vac ±10% 50/60 Hz (120 Vac ±10%50/60 Hz for BRAINY 115) Output, Motor 1/2 motor, 230 Vac ±10%(1/2 motors 120 Vac ±10%for BRAINY 115) Motor maximum power 600W + 600W Output, power supply of accessories 24VAC 1A max.
  • Page 14 LB-BOX 1. Presser les deux ailettes latérales pour 1. Premere le alette sui fianchi per décrocher les deux cache-vis. sganciare le due maschere copriviti. 2. Enlever les deux vis sur le côté 2. Rimuovere le due viti sul lato di d’ouverture désiré.
