Page 1: Lcd Monitor

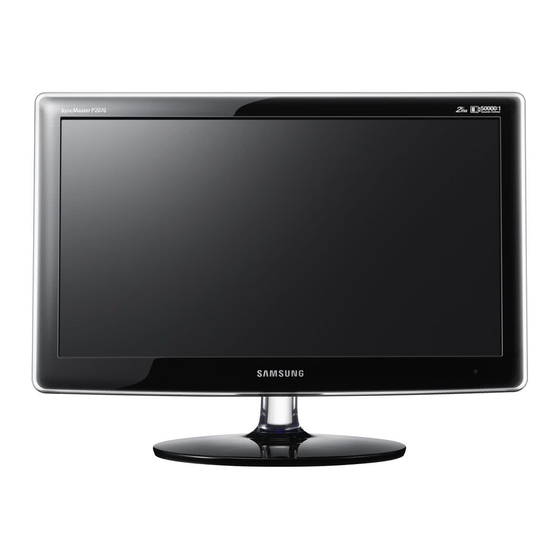

LCD MONITOR quick start guide P2070,P2270,P2370,P2070G,P2270G,P2370G... -
Page 2: Package Contents
Introduction Package Contents Note Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Manuals Quick Setup Guide Cables 'DVI-A to D-Sub' Cable Others Cleaning Cloth Note... -
Page 3: Initial Settings
Sold separately DVI Cable Your Monitor Initial Settings Select the language using the up or down key. The displayed content will disappear after 40 seconds. Turn the Power button off and on. It will be displayed again. It can be displayed up to three (3) times. Make sure to adjust the resolution of your PC before reaching the maximum count. - Page 4 Front MENU button [MENU/ ] Opens the on-screen menu and exits from the menu. Also use to exit the OSD menu or return to the previous menu. Customized Key[ You can customize key assignment for the Custom button according to your preferences.
- Page 5 AUTO button Use this button for auto adjustment. Power button [ Use this button for turning the product on and off. Power Indicator This light is lit when operating normally, and blinks once when your ad- justments are saved. Note See PowerSaver described in the manual for further information regarding power saving functions.
-
Page 6: Using The Anti-Theft Kensington Lock
Kensington Lock Note See Connecting Cables for further information regarding cable connections. Connect the 'DVI-A to D-Sub' Cable to the DVI-I port on the back of your monitor. The Kensington Lock is a device used to physically fix the system when using it in a public place. -
Page 7: Connecting Cables
Connections Connecting Cables Connect the DC adapter for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. Use a connection appropriate for your computer. Using the D-sub (Analog) connector on the video card. •... -
Page 8: Folding The Base
Connections Monitor and Bottom Folding the base Note You can tilt the monitor screen forward to adjust the angle to a particular angle. -
Page 9: Troubleshooting
Troubleshooting Self-Test Feature Check-- P2070, P2070G -- Note Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly. Self-Test Feature Check Turn off both your computer and the monitor. Unplug the video cable from the back of the computer. Turn on the monitor. -
Page 10: Useful Tips
Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor. Useful Tips A monitor recreates visual signals received from the computer. Therefore, if there is a problem with the computer or the video card, this can cause the monitor to become blank, have poor coloring, become noisy, and video mode not supported, etc. -
Page 11: I Cannot See The On Screen Display
Adjust the maximum resolution and frequency that the monitor can handle properly. If the display exceeds SXGA or 75 Hz, a "Not Optimum Mode", "Recommended Mode 1600 x 900 60 Hz" message is displayed. If the display exceeds 85 Hz, the display will work properly but the "Not Optimum Mode", "Recommended Mode 1600 x 900 60 Hz"... -
Page 12: The Screen Is Out Of Focus Or Osd Cannot Be Adjusted
(Refer to the Preset Timing Modes). The screen can be unbalanced due to the cycle of the video card signals. Readjust Position by referring to the OSD. The screen is out of focus or OSD cannot be adjusted. Have you adjusted the resolution or frequency on the monitor? Adjust the resolution and frequency of the video card. - Page 13 Check if the scanning ratio of the video screen is set to between 56 Hz ~ 75 Hz. (Do not exceed 75 Hz when using the maximum resolution.) If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode, remove the Display Adapter in the "Control Panel →...
- Page 14 Note Before calling for assistance, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the In- formation section or contact your dealer. Self-Test Feature Check-- P2270, P2370, P2270G, P2370G -- Note Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly.
- Page 15 Environment The location and the position of the monitor may influence the quality and other features of the monitor. If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor.
- Page 16 If the initial screen (the login screen) does not appear, contact the Service Center or your dealer. Can you see "Not Optimum Mode", "Recommended Mode 1920 x 1080 60 Hz" on the screen? You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly.
- Page 17 The screen suddenly has become unbalanced. Have you changed the video card or the driver? Adjust screen image position and size using the OSD. Have you adjusted the resolution or frequency to the monitor? Adjust the resolution and frequency at the video card. (Refer to the Preset Timing Modes).
- Page 18 Check the following items if there is trouble with the monitor. Check if the power cord and the video cables are properly connected to the computer. Check if the computer beeps more than 3 times when booting. (If it does, request an a service for the main board of the computer.) If you installed a new video card or if you assembled the PC, check if the installed the adapter (video) driver and the monitor driver.
- Page 19 How can I clean the outer case/LCD Panel? Disconnect the power cord and then clean the monitor with a soft cloth, using either a cleaning solution or plain water. Do not leave any detergent or scratches on the case. Do not let any water enter the monitor.
