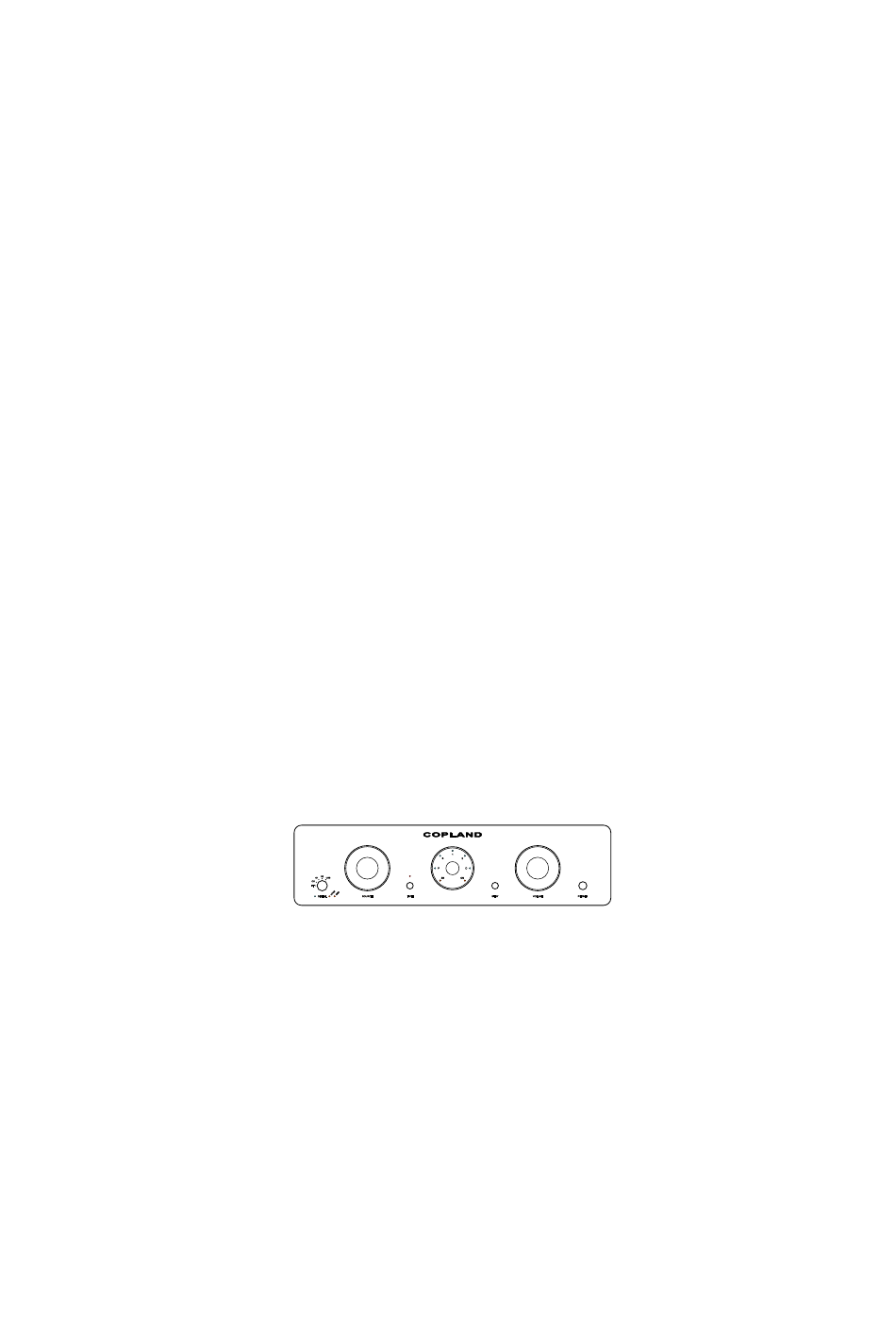

- Page 1 COPLAND CSA100 USER GUIDE...
-
Page 2: Power Cord
What’s in the Box USER GUIDE EEEE USER GUIDE POWER CORD AMPLIFIER REMOTE CONTROL... -
Page 3: Getting Started
GETTING STARTED Open the carton and remove the amplifier from its plastic bag. Before placing the unit in your home, read this carefully. CAUTION! Various regulation agencies require us to bring the following information to your attention. Please read carefully. WARNING To prevent fire or shock hazard, do not expose this unit to rain or moisture. - Page 4 Check that your supply voltage is the same as indicated on the amplifier back panel. CSA100. Phase Inverting. The absolute signal phase at the speaker terminals of CSA100 is inverted (exactly 180 degrees, black speaker terminal grounded). The phase invention is due to the electrical design of the tube line stage in the amplifier.
- Page 5 Front Panel 1. Digital Source Selector: Selects the type NOTE: When the Tape Monitor is engaged, of digital input signal source. it bypasses the Selector Switch. Regardless of which source the selector is set for, you only hear the tape input. 2.
- Page 6 Optical input 1: TOSLINK - fibre optic transmission of S/PDIF. 10. Optical input 2: TOSLINK - fibre optic transmission of S/PDIF. 11. USB Input: Use a certified USB2.0 cable. Connect the cable to the CSA100 amplifier and then to the external USB source.
- Page 7 MAC OS and LINUX computers works without drivers. Only use USB 2.0 rated cable, i.e., a maximum length of 3 metres. The capability of CSA100 to play the high resolution of 384 kHz does not mean that you need recordings or up sampling of that resolution.
- Page 8 Download USB Driver. The USB driver can be found at this link: http://www.amanero.com/drivers/combo384_drivers_xp_w7_w8_w10_1057.zip You can also find a direct link to the driver at the product pages of DAC215 or CSA100 at the Copland Website. www.copland.dk Unpack the downloaded package in a folder Run driver setup.
-
Page 9: Maintenance
Maintenance The CSA100 is built for a long lifetime, and no special care needs to be taken, except from what is already described under installation. However, the heart of the line amplifier is a tube, and like a light bulb, it has a limited lifetime. After a period, it may affect the performance of the amplifier. -
Page 10: Output Power
Specifications Output power: 2*100W into 8 ohms load. 2*180W into 4 ohms load. Nominal speaker impedance: 4 & 8 ohms Analog Inputs: 1*balanced (XLR) 3*unbalanced (RCA) Digital Inputs: 1*coaxial S/PDIF. 2*optical S/PDIF. 1* USB. 1* aptX HD Bluetooth (Optional Extra) Line output: 1*unbalanced (RCA) 1* Pre-out /unbalanced variable (RCA)
