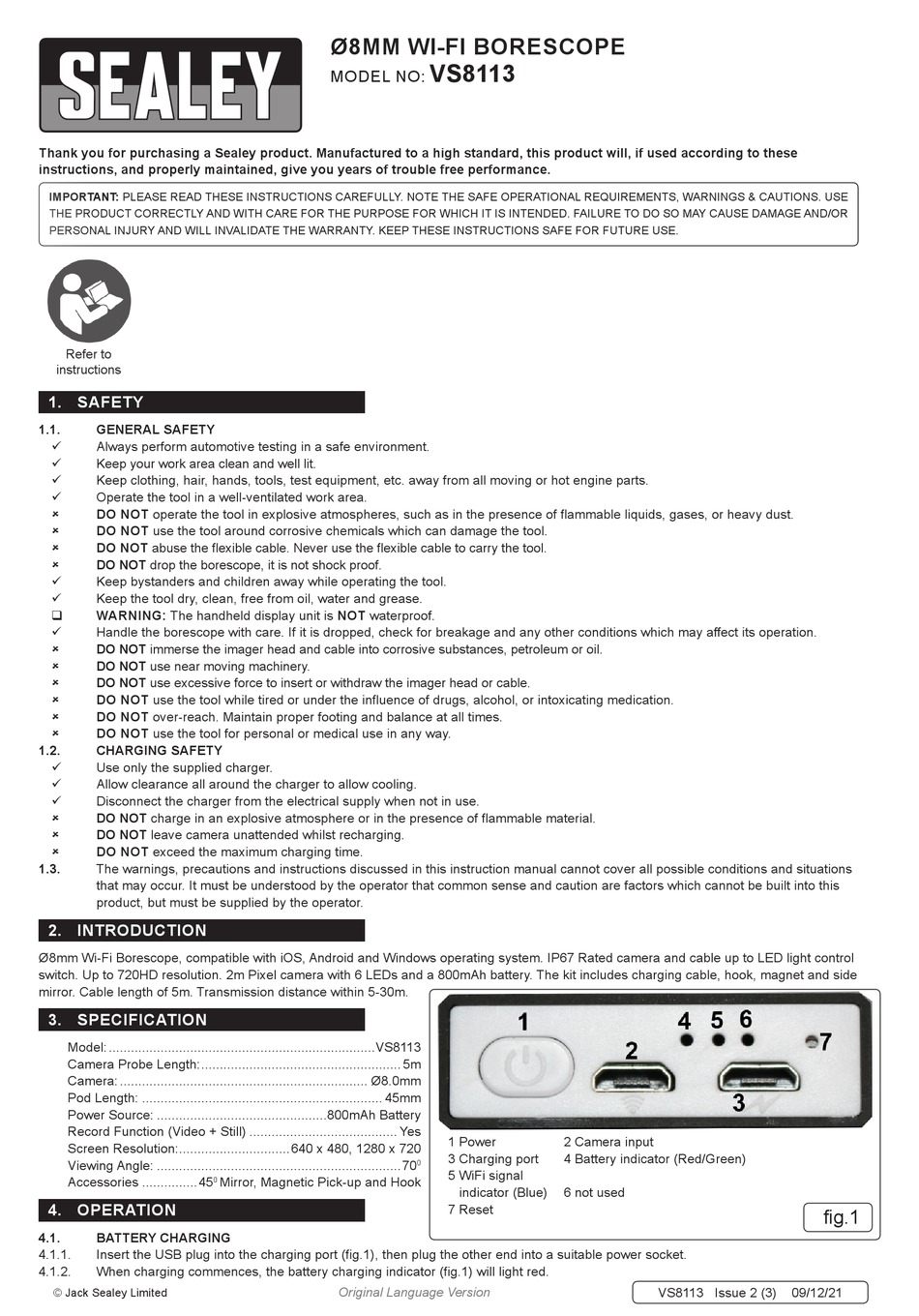

Sealey VS8113 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SAFETY
1.1. GENERAL SAFETY
Always perform automotive testing in a safe environment.
9
Keep your work area clean and well lit.
9
Keep clothing, hair, hands, tools, test equipment, etc. away from all moving or hot engine parts.
9
Operate the tool in a well-ventilated work area.
9
DO NOT operate the tool in explosive atmospheres, such as in the presence of flammable liquids, gases, or heavy dust.
8
DO NOT use the tool around corrosive chemicals which can damage the tool.
8
DO NOT abuse the flexible cable. Never use the flexible cable to carry the tool.
8
DO NOT drop the borescope, it is not shock proof.
8
Keep bystanders and children away while operating the tool.
9
Keep the tool dry, clean, free from oil, water and grease.
9
WARNING: The handheld display unit is NOT waterproof.
‰
Handle the borescope with care. If it is dropped, check for breakage and any other conditions which may affect its operation.
9
DO NOT immerse the imager head and cable into corrosive substances, petroleum or oil.
8
DO NOT use near moving machinery.
8
DO NOT use excessive force to insert or withdraw the imager head or cable.
8
DO NOT use the tool while tired or under the influence of drugs, alcohol, or intoxicating medication.
8
DO NOT over-reach. Maintain proper footing and balance at all times.
8
DO NOT use the tool for personal or medical use in any way.
8
1.2. CHARGING SAFETY
Use only the supplied charger.
9
Allow clearance all around the charger to allow cooling.
9
Disconnect the charger from the electrical supply when not in use.
9
DO NOT charge in an explosive atmosphere or in the presence of flammable material.
8
DO NOT leave camera unattended whilst recharging.
8
DO NOT exceed the maximum charging time.
8
1.3. The warnings, precautions and instructions discussed in this instruction manual cannot cover all possible conditions and situations
that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this
product, but must be supplied by the operator.
2. INTRODUCTION
Ø8mm Wi-Fi Borescope, compatible with iOS, Android and Windows operating system. IP67 Rated camera and cable up to LED light control
switch. Up to 720HD resolution. 2m Pixel camera with 6 LEDs and a 800mAh battery. The kit includes charging cable, hook, magnet and side
mirror. Cable length of 5m. Transmission distance within 5-30m.
3. SPECIFICATION
Model: ........................................................................VS8113
Camera Probe Length: ...................................................... 5m
Camera: ................................................................... Ø8.0mm
Pod Length: ................................................................. 45mm
Power Source: ..............................................800mAh Battery
Record Function (Video + Still) ........................................ Yes
Screen Resolution: ..............................640 x 480, 1280 x 720
Viewing Angle: ..................................................................70
Accessories ...............45
4. OPERATION
4.1. BATTERY CHARGING
4.1.1. Insert the USB plug into the charging port (fig.1), then plug the other end into a suitable power socket.
4.1.2. When charging commences, the battery charging indicator (fig.1) will light red.
© Jack Sealey Limited
Ø8MM WI-FI BORESCOPE
MODEL NO:
Mirror, Magnetic Pick-up and Hook
0
Original Language Version
VS8113
1 Power 2 Camera input
3 Charging port 4 Battery indicator (Red/Green)
0
5 WiFi signal
indicator (Blue) 6 not used
7 Reset
fig.1
VS8113 Issue 2 (3) 09/12/21
