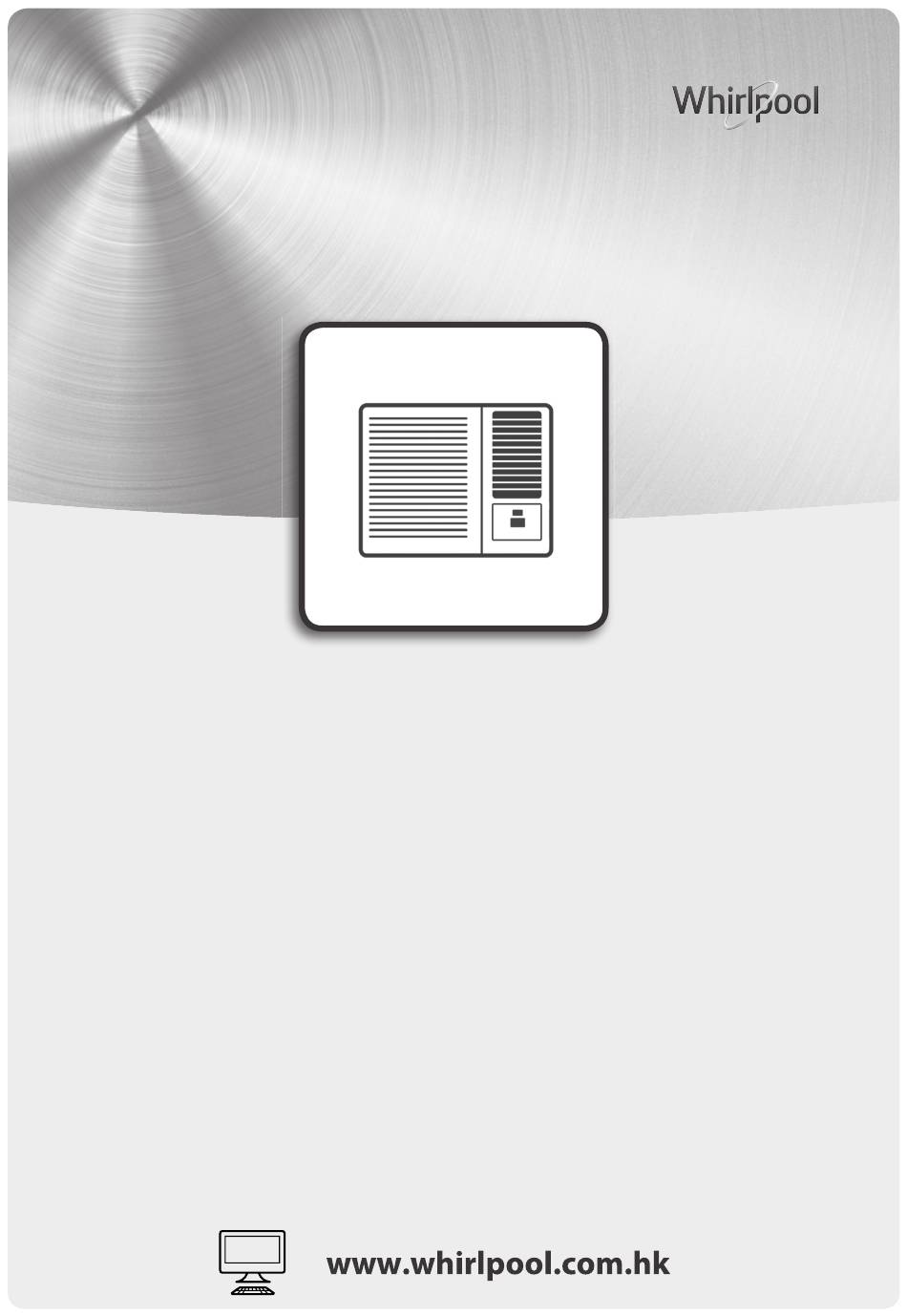

Health & Safety, Use & Care, Installation Guide and Online Warranty Registration Information 產品安全指引、使用說明、安裝指南及 網上登記保養資料 Model AWV07000R / AWV07001R 產品型號 AWV09000R / AWV09001R AWV12000R / AWV12001R AWV18000R / AWV18001R...
Page 3
Dear User, Thank you for choosing Whirlpool air conditioner. Our design is based on the best efficiency and the lowest noise operation and it can keep the room comfortable. Please read this operating manual carefully before operating the unit and keep it for consultation.
Page 4
Function Introduction Whirlpool's window air-conditioner adopts the Zen Inverter Technology, the compressor works in an automatic way to stabilize the room temperature at a comfortable level. In addition, the operation of inverter compressor will not stop and start repeatedly, which generates a low noise level, providing a quiet and comfortable environment to the end users.
Page 5
Safety Precaution · Read the safety precaution carefully before using this appliance. Incorrect operation will cause injuries and damage, please pay special attention to below sign: · To prevent personal injury, injury to others and product damage. · User should strictly follow the operating instructions. Or it may cause product ·...
Page 6
Safety Precaution Operation Precaution This appliance is not intended for use by persons (including children) with reduced · physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Page 7
Operating Condition Please operate air conditioner in the correct condition as following. DRY mode operation COOL mode operation Outdoor temperature should be in range of 18 to 43 Outdoor temperature should be in range of 18 to 43 , otherwise it is possible for air conditioner otherwise it is possible for air conditioner to breakdown.
Page 8
Installation Instruction Installation precaution: Window type air conditioner is so valuable and the improper installation of it will cause a lot of damage! Please associate the professional technician to install the unit and don’t install it by yourself. Location: Avoid other heat sources or direct sun light. The condensation water must be drained away conveniently.
Page 9
Installation Instruction Installation procedure: For 7K & 9K: For 7K & 9K: Remove the sticker from the front panel. Wall Sunshade Put the unit into the installation hole. When installing the unit, it should slant down to the back to make board sure the condensation water can be drained awayconveniently.
Page 10
Installation Instruction Drain water (Style 1) To get the maximum cooling efficiency, the air conditioner is designed to splash the condensation water on the condenser coil. If the splashing sound annoys you, you can provide an outside drain by using the following procedures, which may however cause a small loss of performance.
Page 11
Installation Instruction Notes For Installation Remove Before removing air conditioner to the other place, you should contact the seller firstly. Then it must be done under the direction of the professional technician. Noise Install in a location where is firm enough to avoid the enlargement of noise and vibration.
Page 12
Parts Identification & Operations Product Outlook Cabinet Air inlet louver (at side) Front grille Front intake grille Control panel Air filter (behind the front intake grille) Note: Panel outlook picture, just for reference, please take the real unit as standard. Air Direction Adjustment Vertical airflow direction vane The vertical airflow direction vane is controlled by positioning the...
Page 13
Parts Identification & Operations Remote Control Panel Power button Press this button to turn on the unit. Press this button again to turn off the unit. Swing button Press this button to start up the auto swing function. Fan speed button Press this button to select fan speed : HIGH, MID, LOW, AUTO.
Page 14
Parts Identification & Operations Remote Control Power button Press it to start or stop operation. Mode button Press it to select operation mode (6TH SENSE/ COOL/ DRY/ FAN). Press it to decrease temperature setting. Press it to increase temperature setting. Fan speed button Press it to set fan speed.
Page 15
Parts Identification & Operations Introduction for buttons on remote controller Power button : Press this button to turn on the unit. Press this button again to turn off the unit. Mode button : Each time you press the button, a mode is selected in a sequence that goes from 6th sense, COOL, DRY, FAN, as the following: 6th sense COOL...
Page 16
Parts Identification & Operations Note: ● This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
Page 17
Parts Identification & Operations Replacing batteries in remote controller 1. Remove the cover from the back of the remote control.To avoid Using a tool to push the latch small parts choking hazard, it is suggested to open the cover by tools (e.g.
Page 18
Operation Tips Operation for comfort and economy Keep the room temp. uniform. Keep blind or curtains closed Do not overcool the room Adjust the vertical and horizontal Do not let sunshine enter the temperature. This is not good for airflow direction to ensure a uni- room directly when the air con- health and waste electricity.
Page 19
Caution Operation for safety and health 1) The plug must be accessible after the appliance is positioned. 2) Do not use this appliance in the laundry room. 3) If the power cord is damaged, it must be replaced by the manufacture or its service agent in void of hazard. Do not pull out the power cord.
Page 20
Care and Maintenance Cleaning unit 1. Cut power off before cleaning. Air filter The air filter behind the intake grille should be washed at Plug out only after least once every two weeks or as often as it needs cleaning. air conditioner stops at all.
Page 21
Trouble Shooting Guide Please check the following items before asking for repair, it saves your time and money. Fault phenomenon Troubleshooting Is there a power failure? Is the plug out? Air conditioner does not Is power fuse or switch off? operate at all.
Page 22
After-sales Service Immediately stop all operations and plug out, please contact your dealer in the following situations. Operation starts or stops abnormally; Power fuse or switch often breaks; Carelessly splash water or something into air conditioner; Electrical lines are much hot or lines cover breaks; Other strange situations.
Page 23
Safeguarding the Environment Scrapping Notice Scrapping Packaging 1. The packaging can be 100% recycled as confirmed by the recycling symbol . The various parts of the packaging must not be dispersed in the environment, but must be scrapped in line with local authority regulations.
Page 45
Register your product online 網上登記新產品保養 Save the planet and register your product warranty online! Enjoy extra 1-month free warranty upon online registration. 「惠」環保出力,減少用紙!於網上登記產品更可獲額外多一個月保養。 https://rebrand.ly/WPwarranty...
