Potter PS10 Manual

Patent Pending
Ordering Information
Model Description

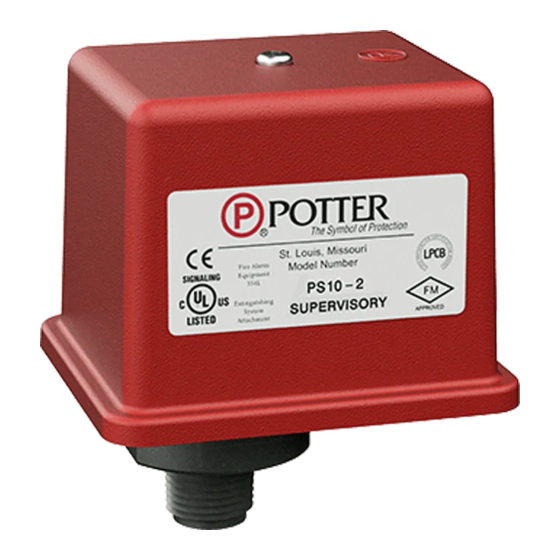

PS10-1 Pressure switch with one set
SPDT contacts
PS10-2 Pressure switch with two sets
SPDT contacts
Hex Key
Cover Tamper Switch Kit
Tamper
Cover incorporates tamper resistant fastener that requires a special key for
removal. One key is supplied with each device. For optional cover tamper
switch kit, order Stock No. 0090200. See bulletin #5401200 PSCTSK.
Installation
The Potter PS10 Series Pressure Actuated Switches are designed for the
detection of a waterfl ow condition in automatic fi re sprinkler systems of
particular designs such as wet pipe systems with alarm check valves, dry
pipe, preaction, or deluge valves. The PS10 is also suitable to provide a
low pressure supervisory signal; adjustable between 4 and 15 psi (0,27 and
1,03 BAR).
1. Apply Tefl on tape to the threaded male connection on the device.
(Do not use pipe dope)
2. Device should be mounted in the upright position (threaded connection down).
3. Tighten the device using a wrench on the fl ats on the device.
Wiring Instructions
1. Remove the tamper resistant screw with the special key provided.
2. Carefully place a screwdriver on the edge of the knockout and
sharply apply a force suffi cient to dislodge the knockout plug. See Fig 9
3. Run wires through an approved conduit connector and affi x the connector
to the device.
4. Connect the wires to the appropriate terminal connections for the
service intended. See Figures 2,4,5, and 6. See Fig 7 for two switch, one
conduit wiring.
Testing
The operation of the pressure alarm switch should be tested upon completion
of installation and periodically thereafter in accordance with the applicable
NFPA codes and standards and/or the authority having jurisdiction
(manufacturer recommends quarterly or more frequently).
Wet System
Method 1: When using PS10 and control unit with retard - connect PS10
Potter Electric Signal Company • 2081 Craig Road, St. Louis, MO, 63146-4161 • Phone: 800-325-3936/Canada 888-882-1833 • www.pottersignal.com
PRINTED IN USA
(UL, cUL, and CSFM Listed, FM and LPC Approved, NYMEA
Accepted, CE Marked Pending)
Dimensions: 3.78" (9,6cm)W x 3.20" (8,1cm)D x 4.22" (10,7cm)H
Conduit Entrance: Two knockouts provided for 1/2" conduit. Individual
Enclosure: Cover - Die-cast with textured red powdercoat fi nish, single
Pressure Connection: Nylon 1/2" NPT Male
Factory Adjustment: 4 - 8 PSI (0,27 - 0,55 BAR)
Differential: 2 PSI (0,13 BAR) typical
Maximum System Pressure: 300 PSI (20,68 BAR)
Switch Contacts: SPDT (Form C)
Stock No.
Environmental Specifi cations:
1340103 NEMA 4/IP55 Rated Enclosure - indoor or outdoor when used
with NEMA 4 conduit fi ttings.
1340104 Temperature range: -40°F to 140°F (-40°C to 60°C)
Service Use:
5250062
Automatic Sprinkler
0090200
One or two family dwelling
Residential Occupancy up to four stories
National Fire Alarm Code
into alarm port piping on the input side of retard chamber and electrically
connect PS10 to control unit that provides a retard to compensate for surges.
Insure that no unsupervised shut-off valves are present between the alarm
check valve and PS10.
Method 2: When using the PS10 for local bell application or with a control
that does not provide a retard feature - the PS10 must be installed on the alarm
outlet side of the retard chamber of the sprinkler system.
Testing: Accomplished by opening the inspector's end-of-line test valve.
Allow time to compensate for system or control retard.
Note: Method 2 is not applicable for remote station service use, if there is an
unsupervised shut-off valve between the alarm check valve and the PS10.
Wet System With Excess Pressure
Connect PS10 into alarm port piping extending from alarm check valve.
Retard provisions are not required. Insure that no unsupervised shut-off
valves are present between the alarm check valve and the PS10.
Testing: Accomplished by opening the water by-pass test valve or the
inspector's end-of-line test valve. When using end-of-line test, allow time
for excess pressure to bleed off.
Dry System
Connect PS10 into alarm port piping that extends from the intermediate
chamber of the alarm check valve. Install on the outlet side of the in-line
check valve of the alarm port piping. Insure that no unsupervised shut-off
valves are present between the alarm check valve and the PS10.
Testing: Accomplished by opening the water by-pass test valve.
Note: The above tests may also activate any other circuit closer or water
motor gongs that are present on the system.
MFG. #5400928 - REV D
1/08
MODEL PS10
PRESSURE SWITCH
switch compartments and ground screws suitable for
dissimilar voltages.
cover screw and rain lip.
Base - Die-cast
10.1 Amps at 125/250VAC, 2.0 Amps at 30VDC
One SPDT in PS10-1, Two SPDT in PS10-2
NFPA-13
NFPA-13D
NFPA-13R
NFPA-72
PAGE 1 OF 3
