Bose FreeSpace 360P Series Service Manual

Environmental speaker
Hide thumbs Also See for FreeSpace 360P Series:

Advertisement

Table of Contents

®
Bose
FreeSpace

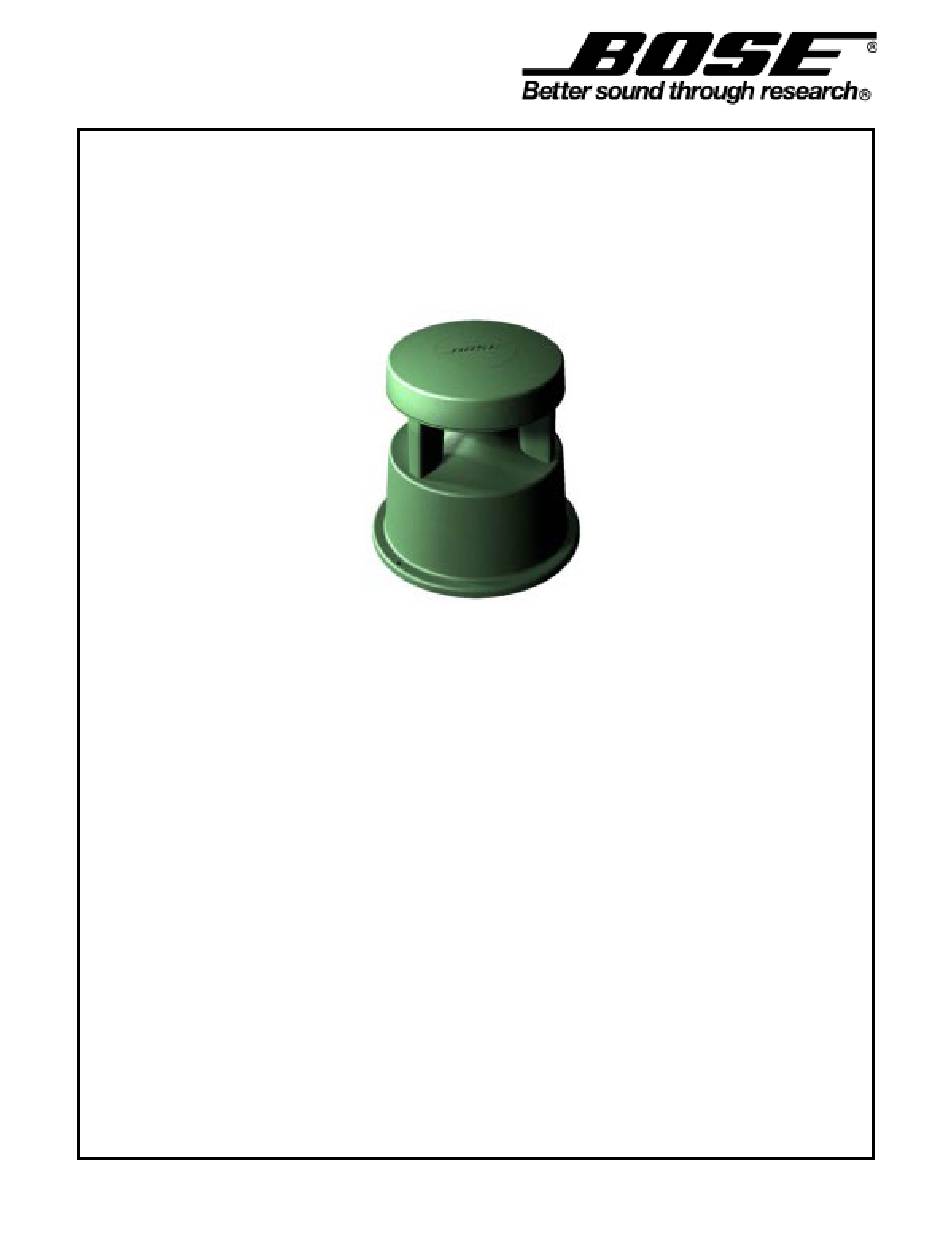

The Bose FreeSpace 360P loudspeaker is an 80-watt, full-range environmental loudspeaker with a
360° horizontal dispersion. It is designed for use with standard amplifiers in a variety of applications,
such as shopping malls, outdoor restaurants, resorts and theme parks. It offers the following features:
• An environmental 4.5" (11.4 cm) Bose driver with passive equalization, providing high reliability
and high quality sound for outdoor applications
• A multi-tap line transformer that permits selection of tap settings of 10W, 20W, 40W, or 80W at
the 70V or 100V inputs)
• Freestanding design that blends with the landscaping and permits installation either in ground or
attached to a horizontal concrete or wood surface
Service Manual
©
2007 Bose Corporation
®
360P Series II Environmental Speaker
Product Description
Reference Number 263872-SM
REV 02
Electronic copy only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FreeSpace 360P Series and is the answer not in the manual?

Questions and answers

Related Manuals for Bose FreeSpace 360P Series

Summary of Contents for Bose FreeSpace 360P Series

  • Page 1 360° horizontal dispersion. It is designed for use with standard amplifiers in a variety of applications, such as shopping malls, outdoor restaurants, resorts and theme parks. It offers the following features: • An environmental 4.5" (11.4 cm) Bose driver with passive equalization, providing high reliability and high quality sound for outdoor applications •...

  • Page 2: Table Of Contents

    CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE. Caution: The FreeSpace loudspeaker contains no user serviceable parts. To prevent warranty infrac-...

  • Page 3: Assembly Part List

    FS360P II Environmental Loudspeaker Assembly Part List Item Description Part Number Note Number DRIVER ASSY, 4.5", ENV 289807-001 GASKET, STRIP, 2.0X5.0X340.0, PSA 291132-340 DIFFUSER, FS-51 268607 PROTECTOR, DRIVER, TRANSIT, 4.5 120003 LOGO CAP, GREEN 268601-1 SCREW, TF, 8-11X1.25, HEXW HD 296497-020 SCREW, TAPP, 8-11X.5, PAN, XREC/SQ 296495-008...

  • Page 4: Disassembly Procedures

    FS360P II Environmental Loudspeaker Disassembly Procedures Driver Removal Remove three screws then lift up driver. Cut the wires close to the driver terminal. Top Cap Removal Remove three screws. Flip unit over. Lift off top cap. Note: 1. The crossover PCB is located in the top of the unit and is not accessible for repair or replacement.

  • Page 5: Test Procedures

    FS360P II Environmental Loudspeaker Test Procedures Test SetUp 3. Rub and Tick Test 70V version: Apply the positive input signal to 3.1 Apply a 35 Vrms, 10 Hz signal to the the red wire and the negative to the black wire. speaker input terminal.
  • Page 6 FS360P II Environmental Loudspeaker Service Manual Revision History Date Revision Description of Change Change Pages Level Driven By Affected Document released at 04/03 revision 00. 04/06 00 to 01 Added RoHS part numbers This product is now built with RoHS compliant parts.
  • Page 7 Specifications and Features Subject to Change Without Notice Bose Corporation The Mountain Framingham Massachusetts USA 01701 P/N 263872 REV. 03 03/07 (P) http://serviceops.bose.com...
