HUAWEI ME909s-120 LTE Mini PCIe Module Acceptance Inspection Guide Issue Date 2017-12-11...
Page 2
Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability.
Page 3
HUAWEI ME909s-120 LTE Mini PCIe Module Acceptance Inspection Guide About This Document About This Document Revision History Document Date Chapter Description Version 2015-07-23 Creation 2017-08-22 Updated Figure 2-3 Medium carton Updated the Figure 2-5 ME909s- 120 Mini PCIe label 2017-12-11...
HUAWEI ME909s-120 Mini PCIe module. 1.2 Scope This guide is applicable to the acceptance inspection of HUAWEI ME909s-120 Mini PCIe module. The inspection methods provided in this guide are recommendations, which can be modified by customers if necessary.
Acceptance Inspection Acceptance Inspection 2.1 Packaging Modes and Appearance The first-layer packages for the ME909s-120 Mini PCIe module are large cartons; the second-layer packages are medium cartons, and the third-layer packages are vacuum bags, as shown in the following figures.

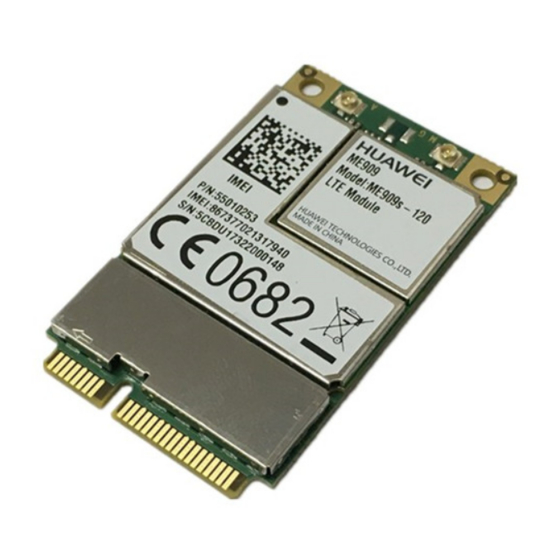

2.2 Label Inspection Figure 2-5 ME909s-120 Mini PCIe label Check whether the information on the label of an ME909s-120 Mini PCIe module is consistent with the label shown in Figure 2-5 . Use a 2D barcode scanner to read the 2D barcode and check whether the number read from the barcode is consistent with the IMEI number printed on the label.
Page 11
HUAWEI ME909s-120 LTE Mini PCIe Module Acceptance Inspection Guide Acceptance Inspection Step 6 Click Connections > Unnamed in Network. Step 7 The information will be displayed in the following figure. Manufacture: The module's manufactory Firmware: The module's software version IMEI:...
HUAWEI ME909s-120 LTE Mini PCIe Module Acceptance Inspection Guide Acceptance Inspection The firmware version and the IMEI number shown in the figure are provided only for your reference. The actual product may be different. 2.4 Repack the Module after Inspection Put back the module inside medium carton in accordance with the right direction, and then cover the medium carton.
