Summary of Contents for Harbinger VARI V2300 Series

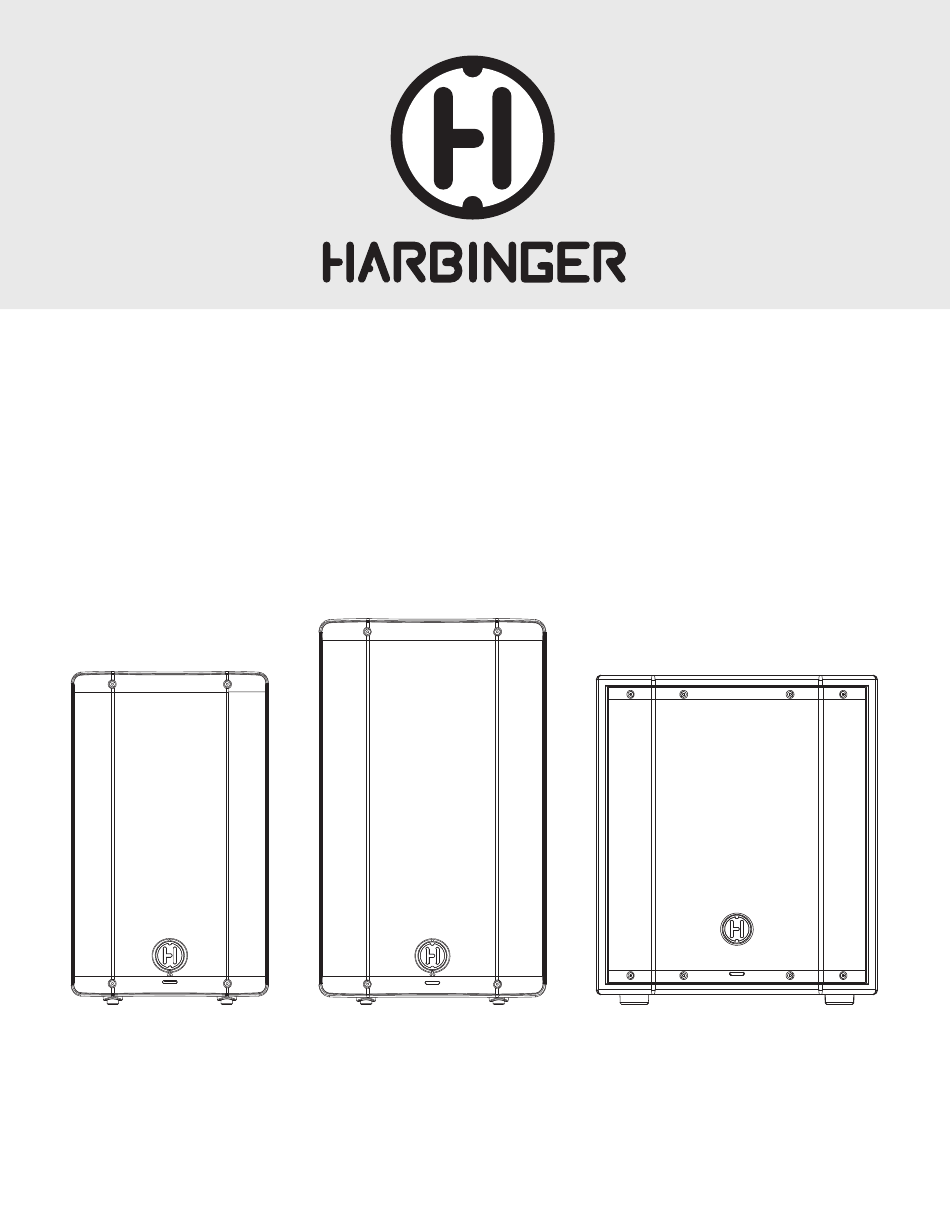

- Page 1 VARI 2308, VARI 2310, S12 OWNER’S MANUAL V2308 V2310...
-
Page 2: Table Of Contents
Warranty/Customer Support ........... 12 WELCOME The Harbinger VARI 2308 and 2310 Powered Speakers and S12 Powered Subwoofer each combine sound optimizing DSP and versatile inputs, outputs and controls, delivering premium sound reproduction with great flexibility. -
Page 3: Vari V2308 And V2310
QUICK START GUIDE: SINGLE V2308/V2310 SETTING UP / HELPFUL TIPS VARI Series speakers can be used as Main Speakers • Position the VARI speaker in the desired location, and ensure the speaker or Floor Monitor Speakers. is stable. • Make sure the Power Switch is off. •... - Page 4 SMART STEREO WITH V2308/V2310 To S12 subwoofer or other sound system A pair of VARI 2308 or 2310 speakers can operate together as a Smart Connect all inputs and make all sound settings on the first (left) unit only. Stereo system, giving you control of the sound and volume of both speakers The second (right) unit’s Input 2, Input 3 and controls are all disabled from the first master speaker, and optimally distributing all audio inputs to when it is set to Link In.
- Page 5 V2308/V2310 BACK PANEL CHANNEL 1 AND 2 KNOBS ROUTING These knobs set the volume for the inputs below them - Normal (Mono): This speaker will output mono audio - Stereo Master: This speaker will operate as the master (left) speaker CLIP LEDS of a Smart Stereo pair.
-
Page 6: S12
• Slowly turn up the source volume to the desired level. HOOK UP DIAGRAMS S12 in-line with audio source Feed-through from main speakers Feeding Harbinger Smart Stereo speakers such as V2308 or V2310 Set S12 crossover to match the size of Mixer or other source... - Page 7 S12 BACK PANEL INPUTS 1 AND 2 TIME ALIGNING DELAY These combo inputs are designed for either TRS or XLR balanced plugs at After you’ve set up your system including the S12 subwoofer and your full- line level, either from a mixer or another speaker. The source can be either range speakers, and are playing audio through the system to evaluate the mono or stereo.
-
Page 8: Specifications
V2308/V2310 SPECIFICATIONS HARBINGER VARI Series V2308 V2310 Selectable Tuning (Normal, Floor Monitor) and Selectable Tuning (Normal, Floor Monitor) and Bass and Treble knobs all control the internal DSP to Bass and Treble knobs all control the internal DSP to customize the sound... - Page 9 S12 SPECIFICATIONS HARBINGER VARI Series V2318S Inputs 2 XLR / TRS LINE input Outputs 2 XLR line output Power Output 400 watts RMS @ 8 Ohms / 1000 watts Peak Volume Main volume control Power Input 110-120V, 220-240V, 50-60Hz, 350w power draw...
-
Page 10: Safety
Please keep this instruction manual for future reference and for the duration of 14. Refer all servicing to qualified service personnel. Servicing is required owning the Harbinger powered loudspeaker or subwoofer. Please carefully when the apparatus has been damaged in any way, such as power-supply read and understand the instructions inside this owner’s manual before... - Page 11 Harbinger powered loudspeakers and subwoofers are capable of producing extremely loud volume levels that can cause permanent hearing damage to performers, production crews or the audience. Hearing protection is...
-
Page 12: Warranty/Customer Support
Retailer and manufacturer shall not be liable for damages based upon inconvenience, loss of use of product, loss of time, interrupted operation or Harbinger provides, to the original purchaser, a two (2) year limited warranty commercial loss or any other incidental or consequential damages including...
