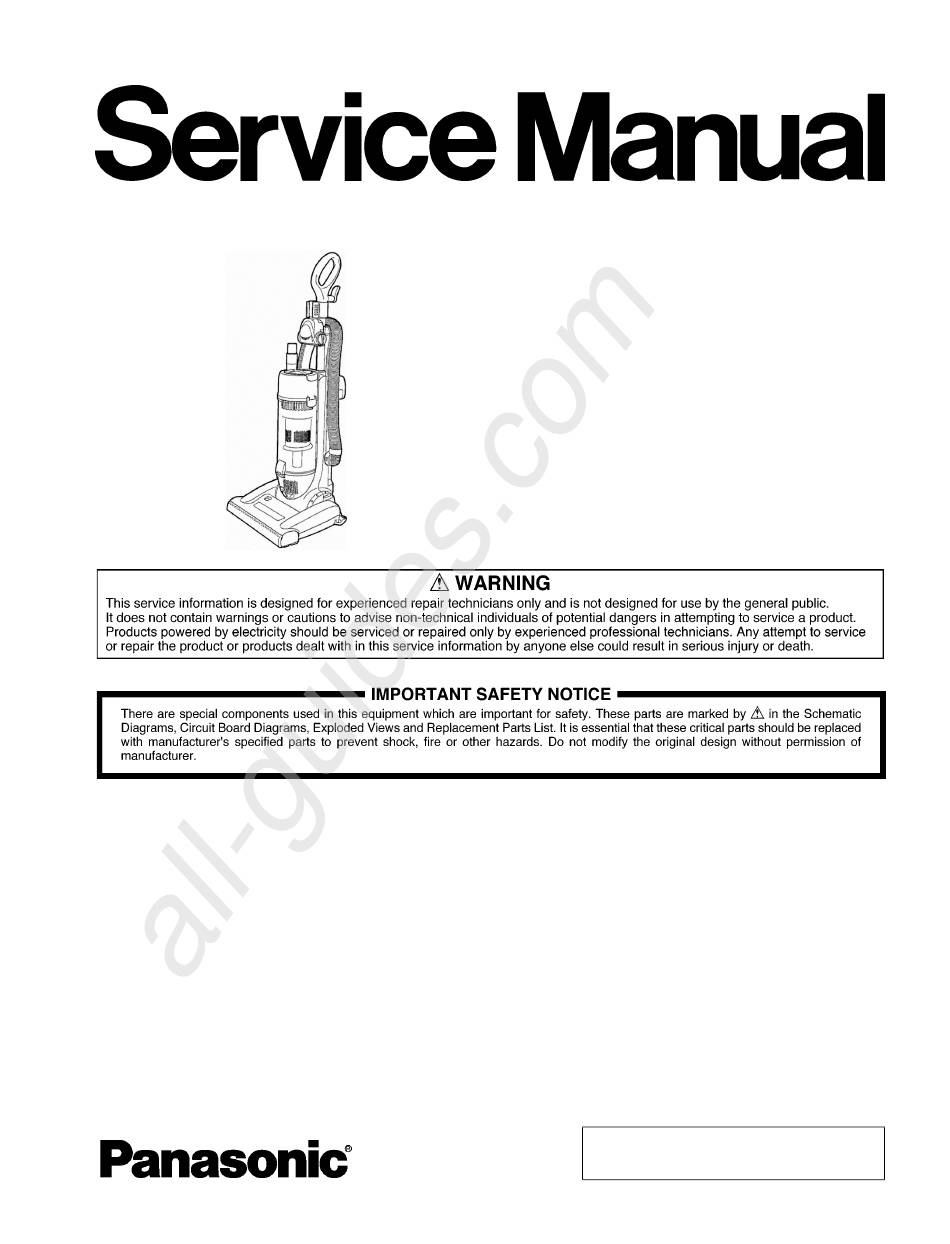

Panasonic MC-UL592 Service Manual

TABLE OF CONTENTS

1 Specifications ----------------------------------------------------- 2
2 Wiring Connection Diagram ---------------------------------- 2
3 How To Assemble Your Cleaner ----------------------------- 3
3.1. Handle Assembly / Hose Assembly / Mains
Lead Storage ----------------------------------------------- 3
3.2. Maintaining The Hepa Filter Unit ---------------------- 4
3.3. To Clean The Pre-Filter ---------------------------------- 4
3.4. Replacing Hepa Exhaust Filter------------------------- 5
3.5. Thermal Protector ----------------------------------------- 6
3.6. Removing And Installing Lower Plate ---------------- 6
3.7. Replacing Belt ---------------------------------------------- 7
3.8. Cleaning Beater Bar (Agitator Assembly) ----------- 7
3.9. Cleaning Exterior And Tools ---------------------------- 8
3.10. Replacing Motor Assy And Overload Protector ---- 9
All manuals and user guides at all-guides.com
PAGE
MC-UL592
Model No.
MC-UL594
3.11. Replacing Fan Motor Unit, Capacitor And
Fuse Assy-------------------------------------------------- 11
3.12. Replacing On/Off Switch ------------------------------- 13
4 Trouble Shooting Guide -------------------------------------- 13
5 Exploded View and Replacement Parts List ----------- 14
© 2009 Panasonic Manufacturing Malaysia Berhad
(6100-K). Unauthorized copying and distribution is a
violation of law.
PMMA091040CER

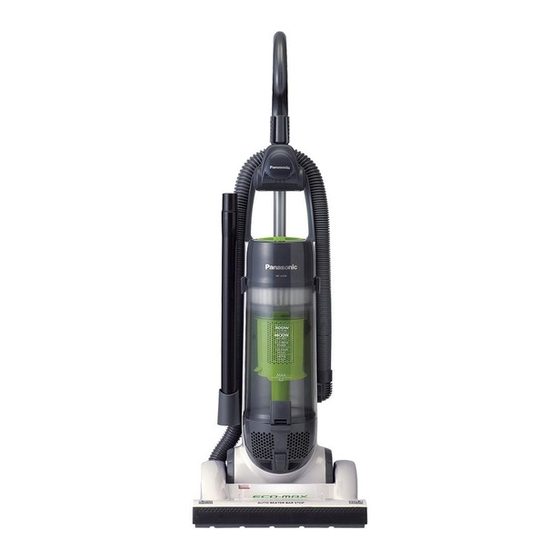

Vacuum Cleaner
PAGE
