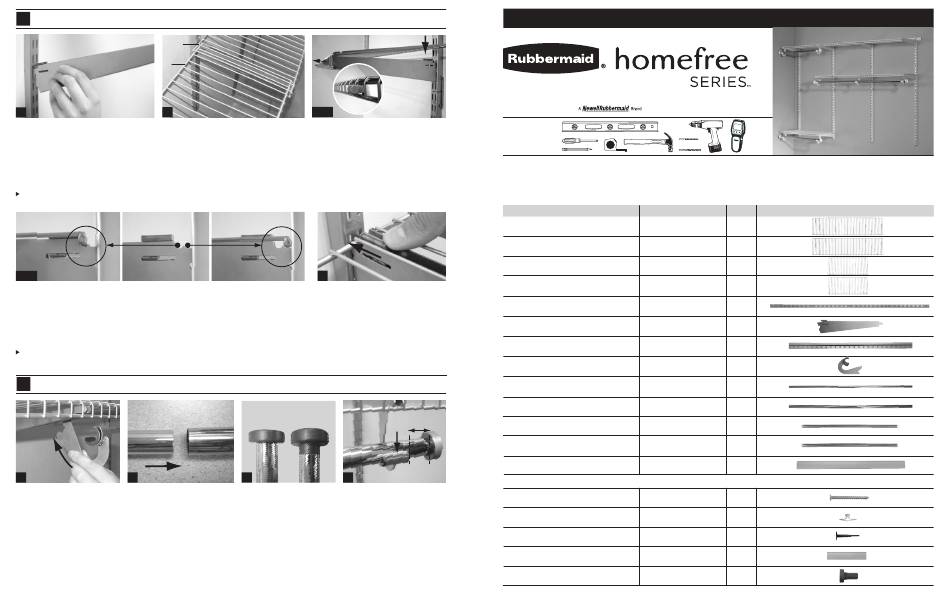

Rubbermaid HomeFree Series Assembly Instructions

4
Install Brackets and Expanding Shelves
B
on top
A
A B
Insert brackets
Overlapping shelves
Insert brackets into uprights at desired Shelves are adjustable and require no
locations. Note: Install brackets and cutting. To adjust width, overlap the shelves
shelving at the top first and work down.
making sure the shelf labeled "A" is placed
Brackets will not fit into upper two slots
first on the brackets and the shelf labeled
of each upright.
"B" is placed on top of "A".
Hint: When overlapping sections of shelving, shelves labeled "A" must be placed onto brackets before shelves labeled "B".
"A" shelf sits in
front notch
Bracket
C (2)
Place shelves onto brackets
Shelf labeled "A" sits in front notch of bracket. Shelf labeled "B" sits in back notch. Be
sure each shelf slides back as far as possible before locking shelves into brackets.
overlapping three sections of shelving, use two "A" sections and one "B" section,
placing "A" sections on the outside and spanning the gap with "B" sections. For four
or more overlapping sections, continue alternating between "A" and "B" sections,
placing "A" shelves on brackets before "B" shelves.
Hint: If shelves are installed in the incorrect notch, shelving weight capacity could be lessened.
5
Install Adjustable Clothes Rods
Press firmly
into place
A B
Install rod hanger Adjust rod length
Install rod hanger into bottom Rods can be used separately or
of bracket by tilting it backward telescoped together. 36" rods
until it locks in place. Note: Be telescope up to 6' and 26"
sure to press rod hangers firmly rods telescope up to 4'
into place for proper installation.
C (1)
Install shelves into brackets
Confirm that the bracket locks are
unlocked and install shelving making
sure that the "nose" of the bracket is
projecting out through the front edge of
the shelf. Note: For maximum weight
capacity, do not insert brackets into
bottom slots of upright.
"B" shelf sits in
back notch
D
Secure shelves with bracket locks
After all shelves are positioned properly,
lock shelves into brackets by sliding the
If
plastic locking clip toward the back wall.
It will "snap" into locked position.
End cap End cap
fit on outer
fit on inner
clothes rod clothes rod
C D
Add end caps Secure rod and hanger
Place end caps on the end After expanding clothes rod to
of each clothes rod. End caps desired length, place into rod
will fit either diameter of rod hangers and press down to snap
(as shown above). into place. Note: Do not extend
more than 3" past rod hangers.
3–6 ft. Adjustable Closet System
© 2011 Rubbermaid Incorporated, Huntersville, NC 28078-1807 • 1-888-895-2110
www.rubbermaid.com
Tools Needed
for Installation
Please read through the instructions completely and check that you have all parts before beginning.
Depending on the configuration you choose to install, you may not use all of the components.
Description
36.25" Shelf (labeled A)
36.25" Shelf (labeled B)
26.25" Shelves (labeled A)
26.25" Shelf (labeled B)
47.5" Uprights
Brackets
36" Overlapping Hang Rails
Clothes Rod Hangers
36" Inner Clothes Rod
36" Outer Clothes Rod
3" max.
26" Inner Clothes Rod
26" Outer Clothes Rod
22" Rail Covers
The following parts are packed together in a hardware bag:
Screws with white tip
0.5" Drywall Anchors
Anchor Push Pin
6" Rail Covers
Clothes Rod End Caps
1/8"
3/8"
optional
Part Number Quantity
3G61 1
3J61 1
3G60 2
3J60 1
3G64 4
3G63 10
3G66 2
3G68 8
3G74 1
3G75 1
3G72 1
3G73 1
3J57 3
1603168 11
3J65 6
3J66 1
3J56 2
3G71 6
3H11
