Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE
AND/OR PERSONAL INJURY AND WILL INvALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
Please register your product with Sealey by completing the registration form on-line at
Navigate to Register Product. By registering your product you can take advantage of Sealey product and technical
updates via email.
1. SAFETY INSTRUCTIONS
WARNING! Ensure that Health and Safety, local authority and general workshop practice regulations are
strictly adhered to.
DO NOT use the unit if it, or any attachment, is damaged.
Maintain tester in good and clean condition for best and safest performance.
If required, ensure that the vehicle to be worked on is adequately supported with axle stands or ramps and is
chocked.
Put transmission in PARK (for automatic transmission) or NEUTRAL (for manual transmission) and make sure
the parking brake is engaged.
Wear approved eye protection. A full range of personal safety equipment is available from your Sealey dealer.
Wear suitable clothing to avoid snagging. Do not wear jewellery and tie back long hair.
WARNING! Use extreme caution when working around the ignition coil, distributor cap, ignition wires and spark
plugs. These components create hazardous voltages when the engine is running.
DO NOT connect or disconnect any test equipment with ignition on or engine running.
Keep a fire extinguisher nearby, which is suitable for gasoline/chemical/electrical fires.
Account for all tools and parts being used and do not leave any in the engine bay.
Keep reset tool dry, clean and free from oil, water and grease. Use a mild detergent on a clean cloth to clean
the outside of the tool.
Ensure that the vehicle is parked outside, on a non-flammable surface and away from any combustibles.
WARNING! The exhaust system could reach temperatures above 300°C. Also exhaust gases are poisonous.
IMPORTANT: Always refer to the vehicle manufacturer's service instructions to establish the current procedure
and data. These instructions are provided as a guide only.
WARNING! The warnings and instructions discussed in this manual cannot cover all possible conditions
and situations that may occur. It must be understood that common sense and caution are factors which
cannot be built into this product, but must be applied by the operator.
When not in use, store tester away in its box, in a cool, dry, childproof location.
2. INTRODUCTION

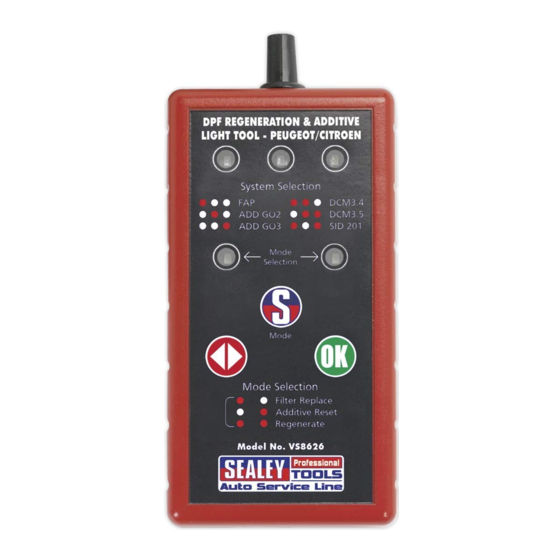

Essential tool for extinguishing the Particulate Filter light after
the filter has been replaced. Resets the ELOYS additive after
it has been topped up. Burns any particles that have clogged
the filters (regenerate). Powered by connection to the vehicle.
INSTRUCTIONS FOR:
DPF REGENERATION & ADDITIvE
LIGHT TOOL - PEUGEOT / CITROEN
MODEL No: vS8626
TECHNICAL HELP LINE No. 01284 757505
Original Language Version
www.sealey.co.uk
VS8626 Issue: 1 - 19/07/10
Advertisement
Related Manuals for Sealey AUTO SERVICE VS8626
Summary of Contents for Sealey AUTO SERVICE VS8626
- Page 1 LIGHT TOOL - PEUGEOT / CITROEN MODEL No: vS8626 Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained, give you years of trouble free performance. IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
- Page 2 3. FEATURES / OPERATION The VS8626 tool: • is compatible with the latest CAN vehicles. • enables Fuel Additive functions for Replacing Filters, resetting Additive Reset lights and performing the Regenerate Process. The new VS8626 Peugeot / Citroen Particulate tool has been designed to extinguish the Particulate Filter Light after the filter has been replaced, re-set the ELOYS additive light after it has been topped up, and also burn any particles that have clogged the filter (regenerate). Filter Replace – This is a light on the dashboard that is illuminated when the filter is clogged and needs changing, or potentially regenerating.
- Page 3 Note: As part of the process, a clear codes message will be sent to the vehicle (any faults that are permanent on the vehicle will remain until the fault is fixed). 3.2. Filter Replace 3.2.1. Press the Function button to select the appropriate system (There is a full list of systems on the rear of the tool). (See list on reverse) 3.2.2.
- Page 4 NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice. IMPORTANT: No liability is accepted for incorrect use of this product. WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim. INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode. Sole UK Distributor, Sealey Group, www.sealey.co.uk 01284 757500 Kempson Way, Suffolk Business Park, Bury St.
