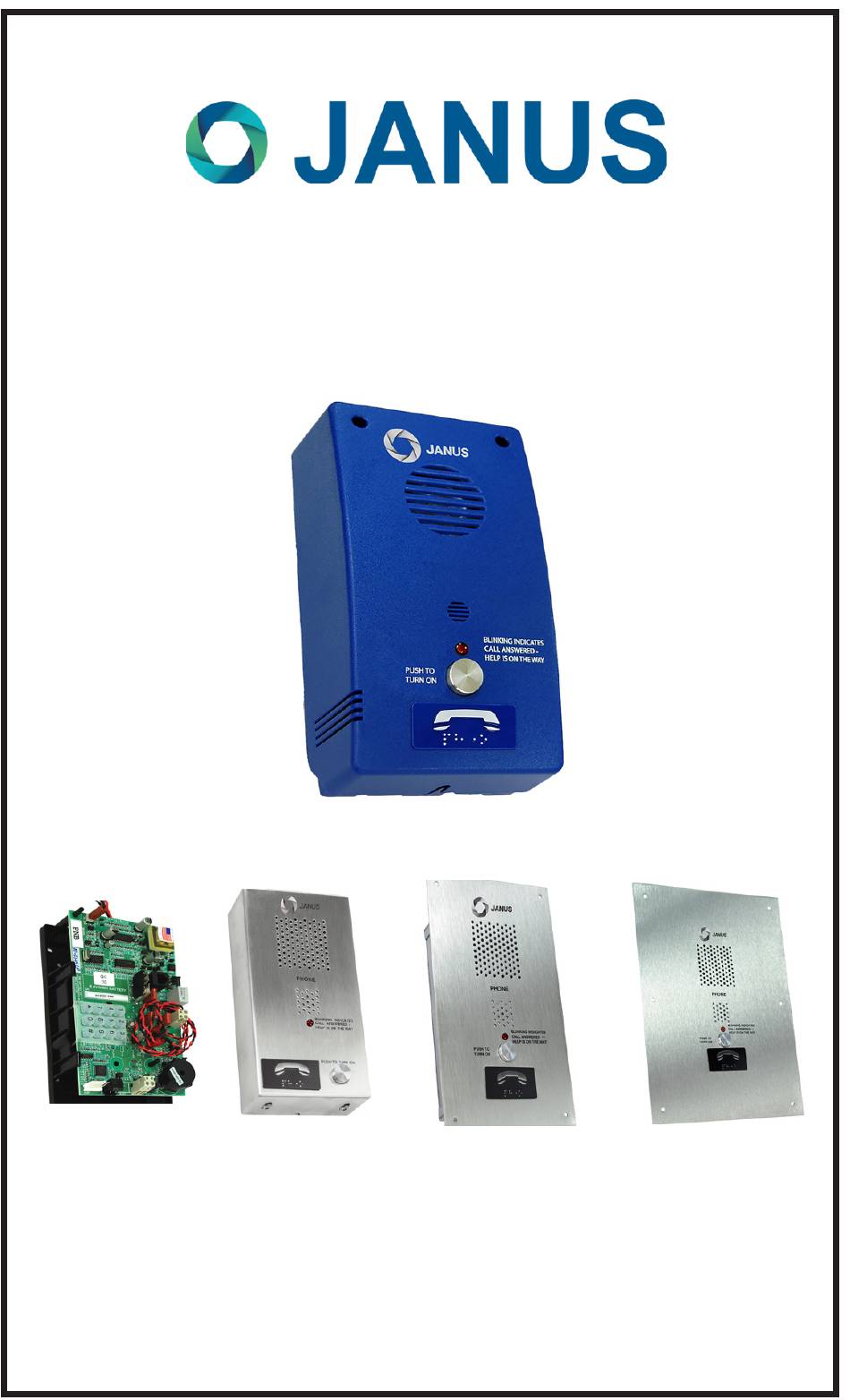

- Page 1 Line Powered ADA Telephone User’s Manual 415 Oser Avenue, Suite Q, Hauppauge, New York 11788 984-0110 Phone: 800-527-9156 Fax: 631-864-2631 Rev 1 Email: sales.us@avire-global.com 11/20 www.januselevator.com...
-
Page 2: Table Of Contents
Specifications ........If you have questions or problems, please call Janus technical support for assistance at 800-527-9156 or visit our website at www.avire-global.com. -
Page 3: Installation
6. Attach phone line to terminal block at P1 (TELCO) or the P1A modular phone jack. Box Style (PBX) 1. Mount back box into phone cabinet on car station. 2. Allow enough room at bottom for opening and removing phone cover. -
Page 4: Board Diagram
PC Board Diagram... -
Page 5: Programming Set-Up Methods
Programming Set-Up Methods There are two methods of setting up the hands-free elevator phone for programming. Select the one applicable to your situation as described below. NOTE: The telephone line provided must be a touch-tone line.The phone can be programmed at any location and then installed in the elevator cab. The phone will retain its programming without the need for a battery. -
Page 6: Optional Programming Instructions
3. Enter # 0 (enter the first phone number to be programmed) * #. Listen for three beeps. EXAMPLE: # 0 5551212 * #. NOTE: If you are on a phone line that requires a “9” or another digit to call the answering service, enter a # after the 9. -
Page 7: List Of Commands For Programming Mode
To program location message, see step 8 in programming instructions. Enter # # and hang up. PURPOSE: To Enable Voice Prompt Message: (DEFAULT) To enable the voice prompt message to say: “Elevator call at the tone press one to talk, press two for location”. •... -
Page 8: Auxiliary Outputs Information
Auxiliary Outputs Information AUX1 (optional): The AUX1 output by default will not be active (open). If the user would like to activate this output they must program code: **44 • X *# - which controls the AUX1 behavior. The letter X on this code could be substituted by 0, 1, 2 or 3. -
Page 9: Troubleshooting Guide
Troubleshooting Guide Always visually check the phone for loose or shorted wires, physically damaged, or missing components. The phone will not work on a Digital phone line. It will only work on an Analog phone line or an Analog port from a digital phone system. - Page 10 Problem: Phone dials out but has broken communication Possible Cause: • Check if voice prompt message is being stopped • Check if there is loud background noise in cab • Check location of microphone • Check mounting of unit • Hold unit in hand and test •...
-
Page 11: Specifications
Input Connections: One shielded twisted pair communication cable (shield should be grounded at the controller only). Phone Line Requirements: Standard (analog) loop start voice grade touch tone telephone line, PBX, or key system station Analog telephone line. Optional AC Adapter: 9 - 24VDC / 12VAC @ min.
