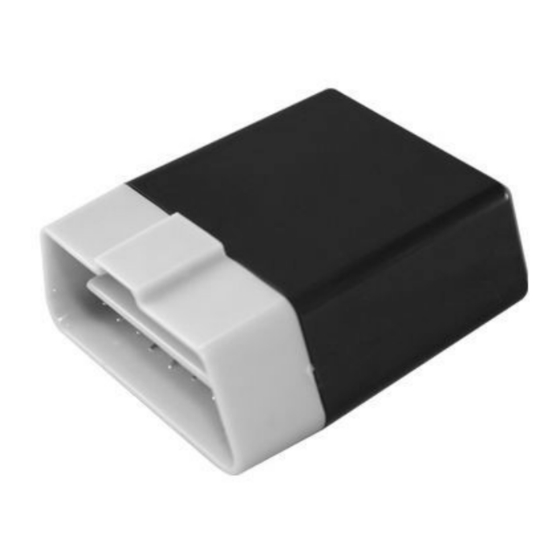

OBD-II Engine Code Reader with
Bluetooth® Technology

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OBD-II and is the answer not in the manual?

Questions and answers

Peter
April 2, 2025

Can I reset my service light with an Obd11 pp2145

0
Peter
April 2, 2025

Can I reset the service light on a Triumph Tiger 800 with a PP-2145

User image 67ec9584e86a8
0

Subscribe to Our Youtube Channel

Related Manuals for Response OBD-II

Summary of Contents for Response OBD-II

  • Page 1 User Manual OBD-II Engine Code Reader with Bluetooth® Technology...
  • Page 2 • Dimensions: 45.2(L) x 41.3(W) x 19.5(H) mm Communication Protocols: This product uses ELM-327 hardware; it will only work with compatible OBD-II protocols. Please check with your vehicle manufacturer that the OBD-II protocols and pin layout is compatible with your vehicle. • SAE J1850 VPW (10.4Kbaud) •...
  • Page 3 OBD-II Socket Compliant with DLC-J1962: OBD-II Pin Layout: Pin 1..SAE J2411, GM single wire CAN;GM Single line CAN-BUS Pin 2..ISO 11519-4 (Bus+)(SAE J1850), Used with PIN 10, 41.6 Kbps PWM (Pulse width modulation) single usage: use PIN 2 only, 10.4 Kbps VPW (Variable pulse width modulation) byte header + CRC,no "checksum"...
  • Page 4 Viewable Parameters: • Vehicle Speed • RPM • Fuel Consumption • Engine Coolant Temp • Fuel Pressure • Calculated Engine Load • Throttle Position • Intake Manifold Pressure • Air Intake Temp • Timing Advance • Mass Air Flow • Fuel Level •...
  • Page 5 NOTE: DO NOT pair with any device at this stage. Pairing MUST be done through the App. 4. Turn on the ‘Accessories’ of your car, do not start the ignition. 5. Insert the OBD-II device to the OBD-II socket of your vehicle.
  • Page 6 6. Go to the ‘Settings’ in the app; change the ‘Hardware’ to ‘ELM327’ and the ‘Connection’ to ‘Bluetooth 4.0 / PP2145’.
  • Page 7 ‘Settings’ and ‘Connection’ to check that you have selected the correct connection – ‘Bluetooth 4.0 / PP2145’. 8. Wait for the app to pair with the OBD-II device. The pairing status will be shown at the top of the screen.
  • Page 8 Instructions for Torque Pairing: 1. Using your Android device, download and install the app from the Google Play Store. 2. After installing, turn Bluetooth® technology function of your device through the phone settings. 3. Search for Bluetooth® technology devices, and pair to ‘PP2145’. 4.
