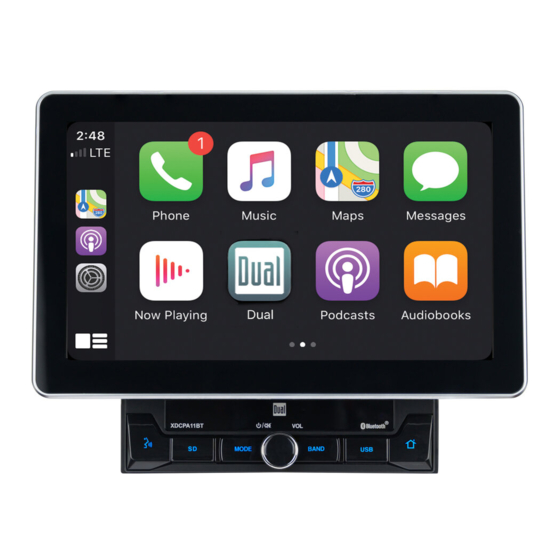

- Page 1 XDCPA11BT INSTALLATION/OWNER’S MANUAL Media Receiver with Android Auto™ and CarPlay™ featuring a 10.1" digital TFT Display XDCPA11BT.indd 1 2019/9/23 15:45:32...
- Page 2 Availability of Android Auto™ may vary depending upon your country and phone model. Please visit android.com/auto for more information. Android, Android Auto, Google and other marks are trademarks of Google Inc. Other trademarks and trade names are those of their respective owners. XDCPA11BT.indd 1 2019/9/23 15:45:32...
-
Page 3: Table Of Contents
Warranty..........XDCPA11BT.indd 2... - Page 4 Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or property damage. XDCPA11BT.indd 3 2019/9/23 15:45:33...
-
Page 5: Safety Information/Precautions
Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your DUAL XDCPA11BT is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only. -
Page 6: Preparation/Mounting
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. * Use 2 or 3 screws to affix the monitor to the bracket. XDCPA11BT.indd 5 2019/9/23 15:45:33... -
Page 7: Wiring Diagram
Wiring Notes: Subwoofer output The Subwoofer preamp audio output (Blue jacket with Black RCA) is active in all audio modes. Rear camera input A rear view camera (not included) can be used with the Camera input. XDCPA11BT.indd 6 2019/9/23 15:45:34... -
Page 8: Control Locations
XDCPA11BT OPERATION Control Locations The radio display features the following functions and displays: Voice Activation Button microSD Card Slot MODE Power/Volume/Mute Band USB Port Home RESET / USB Port XDCPA11BT.indd 7 2019/9/23 15:45:35... -
Page 9: Remote Preparation
XDCPA11BT OPERATION Remote Control Preparation Power Volume Up Tune/Track Down OK -> ENTER Mute Volume Down Preset 1~6 Repeat Play/Pause Talk MODE End Call Random BAND Tune/Track Up Voice Activation Button XDCPA11BT.indd 8 2019/9/23 15:45:36... -
Page 10: General Operation
RESET button located behind the front panel directly under USB port. The unit will reset the main processor to the default setting, Note: Use the tip of a pen to access the reset button. To restore the factory default software settings. XDCPA11BT.indd 9 2019/9/23 15:45:37... - Page 11 Day: 20 is default, Night: 6 is default). • Dimmer Mode- Press > or < to adjust to change the mode (Auto/Day/ Night). Others: • Factory Default-Reset Bluetooth Settings or Reboot System. • System Version-Displays soft ware version of unit . XDCPA11BT.indd 10 2019/9/23 15:45:37...
-
Page 12: Am/Fm Tuner Operation
FM(18)/AM(12) available into the presets in the current Band. Preset Scan: Press AS/PS to scan through all tunable presets in the current band and play them for 3 seconds each. Press the icon to adjust Equalizer setting. Direct Search Keypad Keypad XDCPA11BT.indd 11 2019/9/23 15:45:38... -
Page 13: Usb/Microsd Operation
Repeat mode. Press icon to return to the beginning of the current track. Track Down Press icon to pause or resume playback. Play / Pause Press icon to skip ahead to the next song Track Up XDCPA11BT.indd 12 2019/9/23 15:45:38... -
Page 14: Media Compatibility
Other Information File Number via Folder 2000 files ver.1.x MP3 ID3 TAG ver.2.x Title, Artist, Album Notes: • Due to ongoing technological advancement, some USB flash drives may be incompatible with this unit. XDCPA11BT.indd 13 2019/9/23 15:45:38... - Page 15 Some files may not play or be displayed correctly, depending on sampling rates and bit rates. For best results, use the following settings when ripping MP3 files: 128kbps or higher constant bit rate 44.1kHz or higher sampling frequency XDCPA11BT.indd 14 2019/9/23 15:45:38...
- Page 16 Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "XDCPA11BT". The unit can be in any mode of operation when pairing is performed. On certain phones, pairing may need to be done more than once.
-
Page 17: Bluetooth Operation
Play / Pause Touch icon to skip ahead to the next song. Track Up Random Press icon to shuffle all tacks in the current folder. and again to shuffle all tracks. Touch icon again to exit Repeat mode. XDCPA11BT.indd 16 2019/9/23 15:45:39... -
Page 18: Apple Carplay
Note: Certain iPhone functions may be illegal while driving in your location. Be sure to familiarize yourself with local and state laws regarding mobile devices. When in doubt, stop and park your vehicle before using any devices. XDCPA11BT.indd 17 2019/9/23 15:45:39... - Page 19 Bluetooth will be disconnected during CarPlay use. Exiting Apple CarPlay™ Disconnecting your iPhone will automatically exit CarPlay mode. To exit CarPlay mode while your phone is still connected, press the Power/Volume knob momentarily, and the unit's main menu will be displayed. XDCPA11BT.indd 18 2019/9/23 15:45:41...
-
Page 20: Android Auto
Note: If Android Auto is turned on during a call on a cellular phone other than the Android Auto compatible device, the Bluetooth connection will switch to the Android Auto compatible device after the call. XDCPA11BT.indd 19 2019/9/23 15:45:41... - Page 21 Google. Maps and Navigation Calls and Contacts Home Screen Music and Audio Exit Android Auto Exiting Android Auto™ To exit Android Auto™, press the Exit button. Disconnecting your Android phone will automatically exit Android Auto™ mode. XDCPA11BT.indd 20 2019/9/23 15:45:42...
-
Page 22: Auxiliary Inputs/Rear Camera Operation
Refer to the wiring diagram for details. Auto Selection The unit will automatically select camera mode when connected to the reverse lamp circuitry. Note: The external video output is not active when using the rear camera input. XDCPA11BT.indd 21 2019/9/23 15:45:42... -
Page 23: Swc Input Operation
The built-in SWC Interface is compatible with PAC steering wheel control modules. The PAC SWI-RC is recommended. A third-party adapter must be used in order for the XDCPA11BT to be compatible with any steering wheel controls. The following controls are available for most vehicles. -
Page 24: Troubleshooting
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Dual product. Dealer Name... -
Page 25: Specifications
Design and specifications subject to change without notice. CEA-2006 Power Standard Specifications (reference: 14.4VDC +/- 0.2V, 20Hz~20kHz) Power Output: 16 Watts RMS x 4 channels at 4 ohms and < 1% THD+N Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms) XDCPA11BT.indd 24 2019/9/23 15:45:42... -
Page 26: Warranty
4. For more information and for the location of the original retail purchaser for products purchased from nearest authorized service center please contact an authorized Dual dealer and used in the U.S.A. us by one of the following methods: What is covered? This warranty covers all defects •... - Page 27 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.dualav.com ©2019 Dual Electronics Corp. All rights reserved. NSA0919 Printed in China XDCPA11BT.indd 26 2019/9/23 15:45:42...
