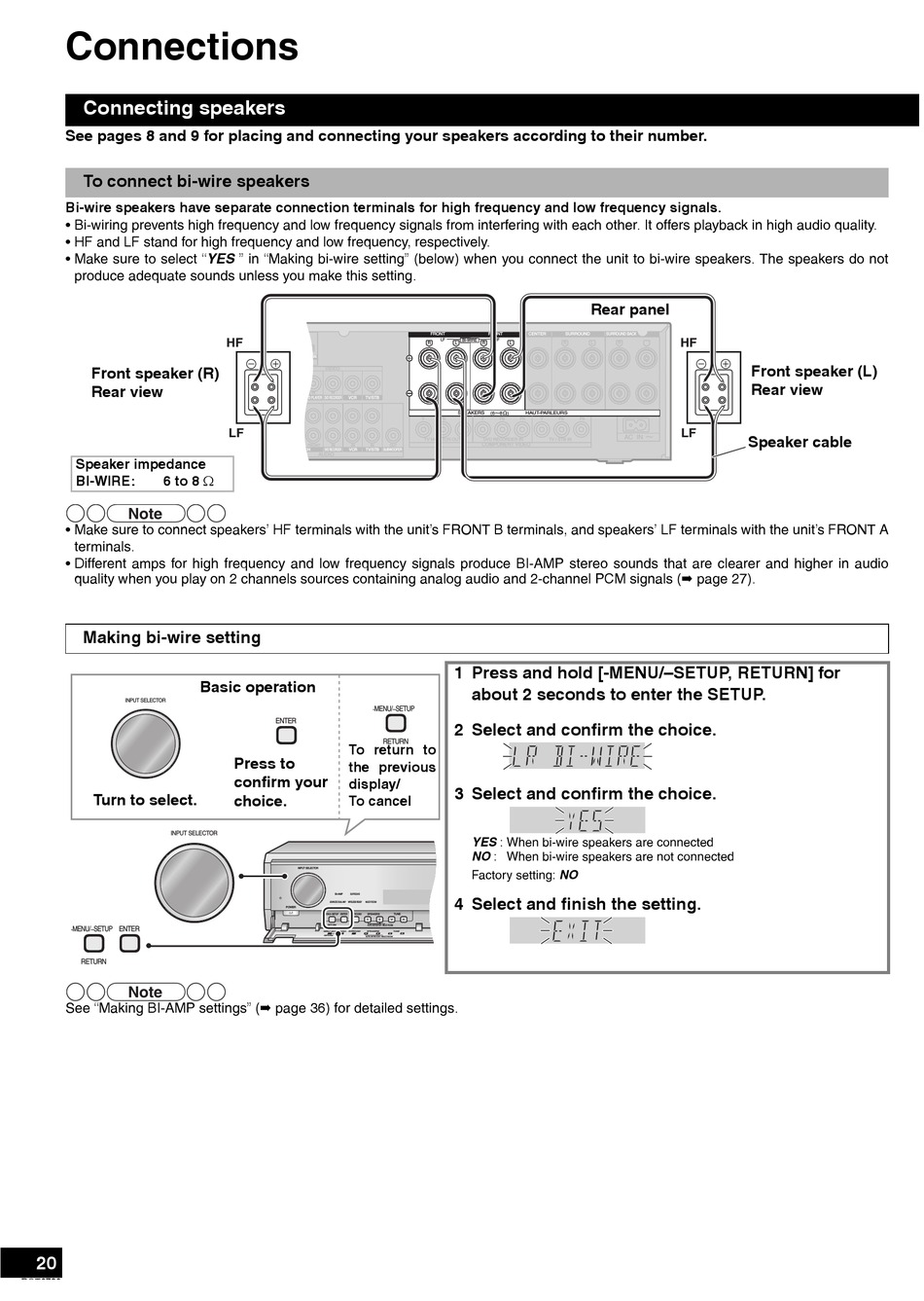

Connections

Connecting speakers

See pages 8 and 9 for placing and connecting your speakers according to their number.

To connect bi-wire speakers

Bi-wire speakers have separate connection terminals for high frequency and low frequency signals.
• Bi-wiring prevents high frequency and low frequency signals from interfering with each other. It offers playback in high audio quality.
• HF and LF stand for high frequency and low frequency, respectively.
• Make sure to select "YES " in "Making bi-wire setting" (below) when you connect the unit to bi-wire speakers. The speakers do not
produce adequate sounds unless you make this setting.
Front speaker (R)
Rear view
Speaker impedance
6 to 8 Ω
BI-WIRE:
Note
• Make sure to connect speakers' HF terminals with the unit's FRONT B terminals, and speakers' LF terminals with the unit's FRONT A
terminals.
• Different amps for high frequency and low frequency signals produce BI-AMP stereo sounds that are clearer and higher in audio
quality when you play on 2 channels sources containing analog audio and 2-channel PCM signals (á page 27).

Making bi-wire setting

INPUT SELECTOR
Turn to select.
INPUT SELECTOR
MENU/ SETUP ENTER
- -
RETURN
Note
See "Making BI-AMP settings" (á page 36) for detailed settings.
20
RQT8739
HF
DER) IN
VIDEO
IN IN IN IN
BD/
DVD PLAYER DVD RECORDER VCR TV/STB
LF
FRONT IN IN IN
6CH DVD RECORDER VCR TV/STB
AUDIO
Basic operation
-
ENTER
To return to
Press to
the previous
confirm your
display/
choice.
To cancel
INPUT SELECTOR
BI-AMP SURROUND
ADVANCED DUAL AMP WIRELESS READY MULTI ROOM
POWER
SPEAKERS
-MENU/-SETUP ENTER SURROUND SPEAKERS
RETURN AUTO DETECTOR -MULTI ROOM
- MENU/ - SETUP ENTER SURROUND SPEAKERS
RETURN
AUTO DETECTOR
FRONT FRONT CENTER
LF BI-WIRE HF
R L R L
SPEAKERS
HAUT-PARLEURS
Y P P Y P P Y
B R B R
TV MONITOR OUT DVD RECORDER IN
COMPONENT VIDEO
OUT
SUBWOOFER
1 Press and hold [-MENU/–SETUP, RETURN] for
about 2 seconds to enter the SETUP.
MENU/ SETUP
-
2 Select and confirm the choice.
RETURN
3 Select and confirm the choice.
YES : When bi-wire speakers are connected
NO : When bi-wire speakers are not connected
Factory setting: NO
4 Select and finish the setting.
TUNE
TUNE
-
MULTI ROOM
Rear panel
SURROUND SURROUND BACK
HF
R L R
P P
B R
LF
AC IN
TV / STB IN
Front speaker (L)
Rear view
Speaker cable
