NetCol5000-C065 In-row Chilled Water
Smart Cooling Product
Quick Guide (Russia, Skoltech)
Issue: 01
Date: 2021-01-08
1
Overview
2
Preparing Materials
Materials
Fuse, combined hexagon head bolts M12x90, OT ground terminal of the power
Configured with
cable to the indoor unit, and single cord end terminal of the power cable to the
the Equipment
indoor unit, cable tie
Humidifier water
inlet pipe
Chilled water inlet
Engineering
and outlet pipes
Procurement
Cables
Others
Model
Power system
Net weight (full configuration) About 222 kg
Dimension (mm)
(H x W x D)

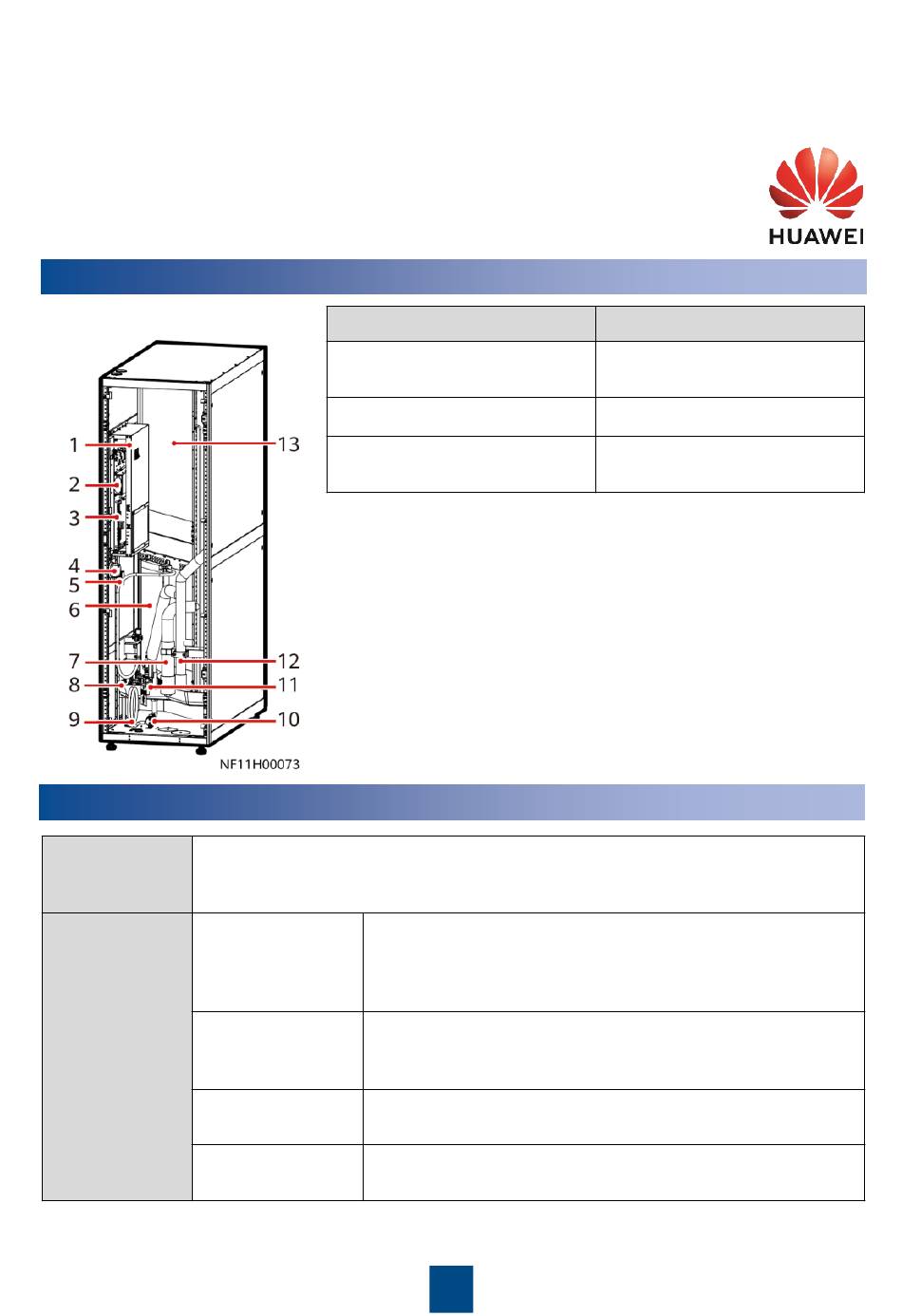

(1) Electric control box
(3) Main control board
(5) Temperature and humidity
sensor
(7) Chilled water outlet pipe
(9) Drainpipe
(11) Chilled water valve
actuator
(13) Heat exchanger
Rigid pipe: G 3/4-inch rigid pipe connector with internal
threads (plastic materials such as PA66, or metal materials
are recommended), and rigid pipe (withstand pressure ≥
0.7 MPa)
Seamless steel pipe with a G 1–1/2 inch external threaded
connector or aluminum plastic pipe with an inner diameter
of 41 mm.
Power cable (3x6.0 mm²), teamwork networking and
monitoring cables, and equipotential cable (≥ 16 mm²)
Indoor unit base, thermal insulation foam, and thermal
insulation foam glue
1
NetCol5000-C065
220 V AC to 240 V AC, 1 PH,
50/60 Hz, dual power supplies
2000 x 600 x 1200
(2) PSU
(4) Differential pressure switch
(6) Wet film humidifier
(8) Water pan
(10) Water pump
(12) Chilled water inlet pipe
