Supplies4Heat BEAUFORT Vertical Fitting Instructions page 2

2. Contents
You should have:
• 1 Radiator
• 4 wall brackets
• 4 wall plugs
• 4 screws
• 4 wall sleeves
• 1 Manual Airvent
• 1 Blanking Plug
• 1 Diverter
You will need:
• Tape measure
• Electric drill and bits
• Spirit level
3. Mark Bracket Positions
Beaufort vertical singles use clamp style brackets that can be
positioned on the collector to suit the installation, although we
recommend that they are fitted in the locations suggested in the
technical drawings on the previous page. The brackets on double
radiators use welded lugs in fixed positions on the cross tubes.
Attach brackets and bracket sleeves to the radiator as shown in
Diagrams 1(single) and 2 (double), place radiator against the wall and
mark bracket positions.
4. Fix Brackets
Detach the bracket sleeve from the bracket and using a suitable drill
bit and fixings secure all four in position, checking they are level and
square.
PLEASE NOTE:
It is essential that all brackets are level and square prior to hanging
the radiator to ensure a vertical alignment for connecting the
pipework.
Technical Specifications
Materials
Connections
Test pressure
Maximum operating pressure
Maximum working temperature
Packaging
PLEASE NOTE: Systems using micro bore pipework must have adequate pressure
and flow rates for the number and style of radiators on the system.
Guarantees & Liabilities
This product is guaranteed for 10 years. The guarantees in all cases are subject to
the products being installed in accordance with British and or European standards as
well as these fitting instructions. The guarantees in all cases are restricted to the free
of charge replacement or repair of the failed product only. Our liability will under no
circumstances extend beyond the repair or replacement of the product supplied by
us. Claims for either labour in replacement or damage to property are not admissible.
Any goods that are returned, in the event of a problem, will belong to us.
www.supplies4heat.co.uk
Steel.
½" flow and return.
5 Bar
3.3 Bar
90ºC
Wrapped in polythene & boxed
A brand of ; Italy's leading manufacturer of design led radiators.

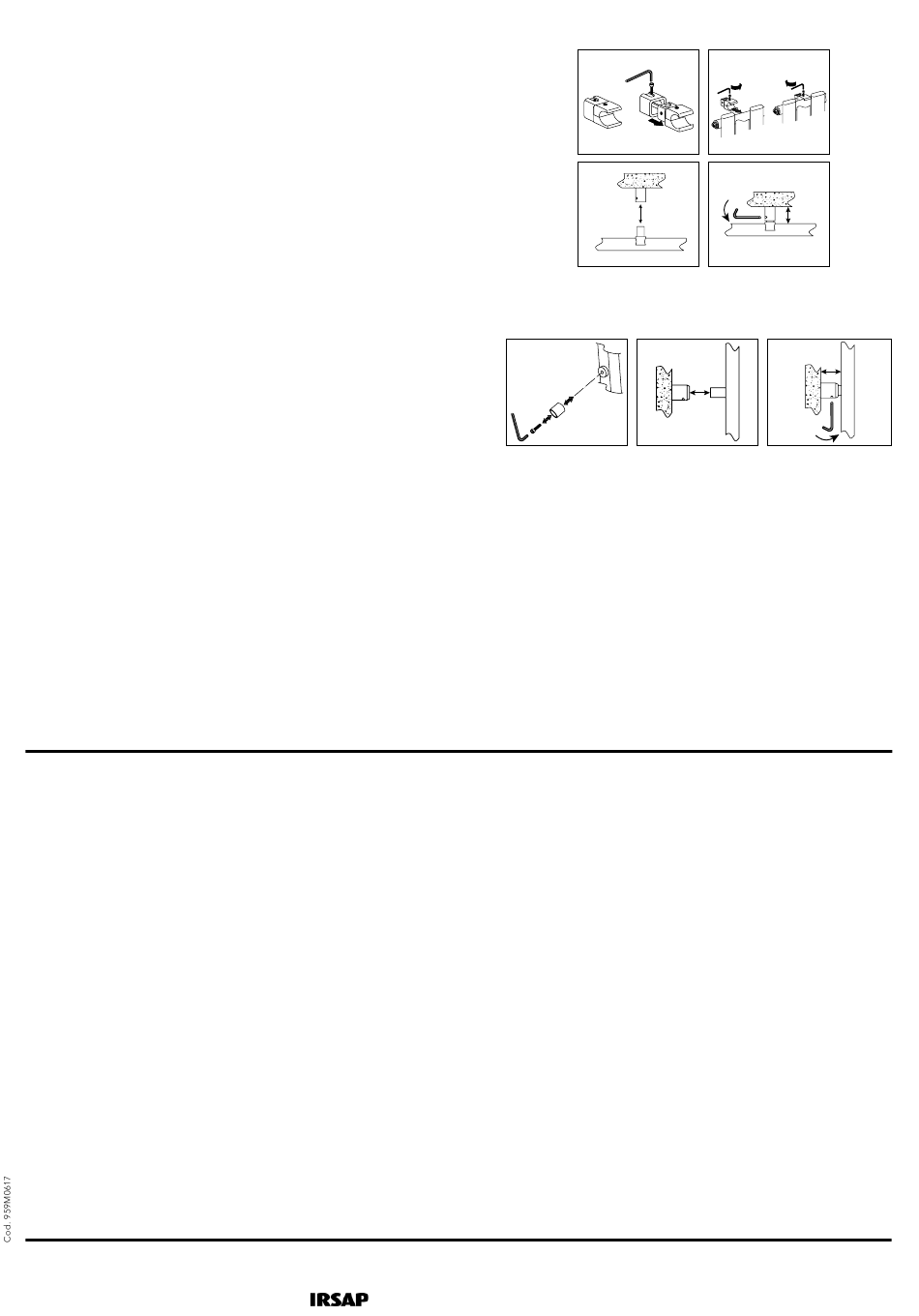

Diagram 1 (single version)
Diagram 2 (double version)
5. Hang Radiator
With the bracket sleeves firmly fixed and level, the radiator can
be hung in position by inserting the brackets into the sleeves and
securing with the grub screws provided.
When commissioning your radiator on an indirect/closed system
we recommend using a suitable mixed metal inhibitor to protect
against scale & corrosion. Damage caused to systems not
protected by a suitable inhibitor will not be covered by
manufacturer's guarantee.
Terms & Conditions
All products must be inspected once removed from the
packaging and your point of purchase notified within
28 days of delivery of any scratches, blemishes or
other damage. Your point of purchase will then agree
appropriate action.
Imperfect radiators should therefore not be fitted and
we will not accept responsibility for replacement of
scratched or damaged radiators once they have been
fitted. This includes any consequential loss or cost of
fitting.
If we are not notified within 28 days of the date on the
signed delivery note then it will be deemed that we
have fully complied with our obligations and claims will
not be considered.
Failure to comply with any of the above may invalidate
any claims. We recommend that after you check the
product on delivery that it is stored in its packaging to
prevent damage prior to installation, we cannot accept
responsibility for items damaged after delivery.
For full details of our Terms and Conditions please visit
www.supplies4heat.co.uk or call us on 01342 306880.
01342 306880
