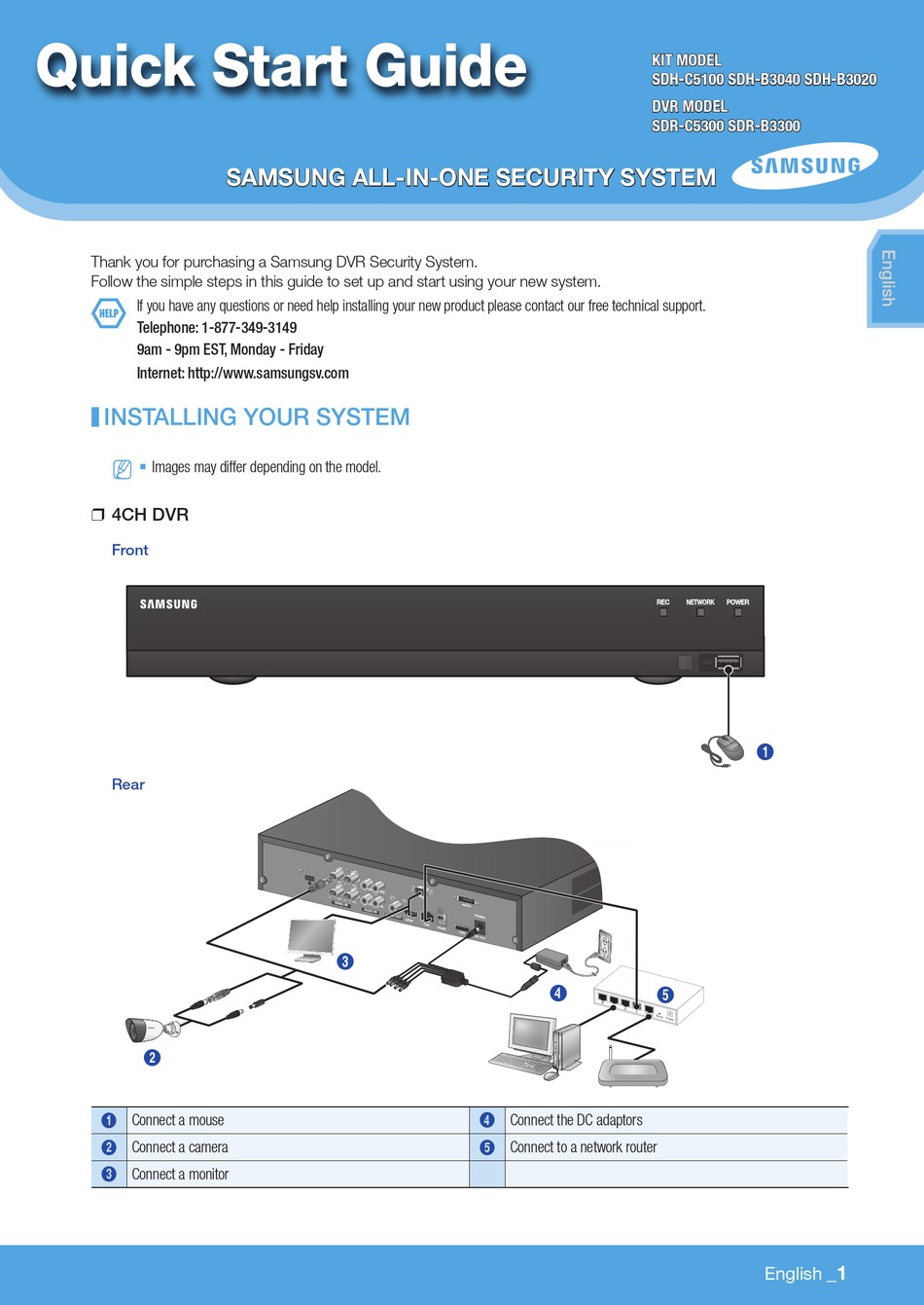

Quick Start Guide
Thank you for purchasing a Samsung DVR Security System.
Follow the simple steps in this guide to set up and start using your new system.
If you have any questions or need help installing your new product please contact our free technical support.
Telephone: 1-877-349-3149
9am - 9pm EST, Monday - Friday
Internet: http://www.samsungsv.com
inStaLLinG YOuR SYSteM
Images may differ depending on the model.
M
`
❒ 4ch DVR
Front
Rear
2
Connect a mouse
1
Connect a camera
2
Connect a monitor
3
SAMSUNG ALL-IN-ONE SECURITY SYSTEM
C H 1
C H 2
VI D EO
C H 3
IN
C H 4
AU DI
O IN
AU DI
O O UT
3
VG A
eS AT
A
PO W
ER
HD M
I
LA N
RS 48
5
US B
D C 12
V
4
Connect the DC adaptors
4
Connect to a network router
5
KIT MODEL
SDH-C5100 SDH-B3040 SDH-B3020
DVR MODEL
SDR-C5300 SDR-B3300
REC
NETWORK
POWER
1
5
English
_1
