Quick Start Guide
Thank you for purchasing a Samsung DVR Security System.
Follow the simple steps in this guide to set up and start using your new system.
If you have any questions or need help installing your new product please contact our free technical support.
Internet: http://www.samsungsecurehome.eu/
INSTALLING YOUR SYSTEM
M
Images may differ depending on the model.
❒ 4CH DVR
Front
Rear
1
Connect a mouse
2
Connect a camera
3
Connect a monitor
SAMSUNG ALL-IN-ONE SECURITY SYSTEM
SAMSUNG ALL-IN-ONE SECURITY SYSTEM
POWER
REC
1
3
2
KIT MODEL
KIT MODEL
SDS-P3040
SDS-P3040 / / V4040
V4040 / / P4080

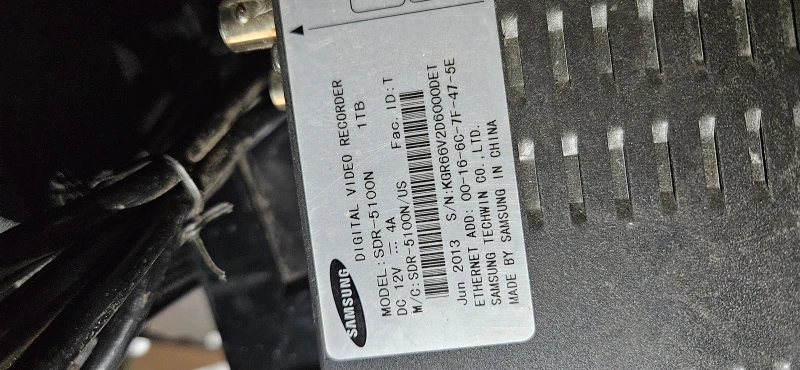

DVR MODEL
DVR MODEL
SDR-3100 / / 4100
SDR-3100
4100 / / 4101
DIGITAL VIDEO RECORDER
+ -
R S 48
5
4
4
Connect the DC adaptors
5
Connect to a network router
P4080 / / P5080
P5080 / / P5100
P5100 / / P5101
P5101
4101 / / 5100
5100
5
_1
English
Advertisement
Table of Contents
Related Manuals for Samsung SDS-P5080
Summary of Contents for Samsung SDS-P5080
- Page 1 SAMSUNG ALL-IN-ONE SECURITY SYSTEM SAMSUNG ALL-IN-ONE SECURITY SYSTEM Thank you for purchasing a Samsung DVR Security System. Follow the simple steps in this guide to set up and start using your new system. If you have any questions or need help installing your new product please contact our free technical support.
-
Page 2: Getting Started
❒ 8CH DVR Front Rear RS 48 HD M ❒ 16CH DVR Rear RS 48 HD M GETTING STARTED ❒ Connecting the DVR to Live monitoring AUDIO IN NETWORK DC 12V ALARM IN ALARM OUT 1 2 3 4 G 1 COM G CONSOLE VIDEO OUT AUDIO OUT... -
Page 3: System Setting
VIEW THE LAUNCHER MENU The Launcher menu appears on the bottom of the live screen. In Live mode, right-click to display the context menu and select 2013-01-01 01:10:25 <Show Launcher>. 2013-01-01 Alarm Freeze 01:10:25 Move the cursor to the bottom and click a desired item in the 3 4 5 6 7 8 90 Launcher menu. -
Page 4: Network Setting
After filling in the information, Click <OK>. Network Setting ❒ Connection Mode Click on Network and select <Connection Mode>. If there occur a problem with Connection Mode, check the connection as “Installing your system” on page 1. If you still have a problem, contact the nearest service center for more information. - Page 5 ❒ SETTING UP SAMSUNG iPOLiS DDNS Since you will be accessing the DVR remotely, let’s setup your Samsung iPolis account first using the PC. Go to Your PC Open your browser and go to http://www.samsungipolis.com and click <LOGIN>. You first need to create an account.
- Page 6 Go back to DVR From network tab, click on <DDNS>. Under DDNS Site, select <iPOLiS>. Under Product ID, enter the product ID you created on the Samsung iPOLiS website. Under Quick Connect, select <Use> and click <OK>. Write down the DDNS Host address:.
-
Page 7: Remote Monitoring
REMOTE MONITORING From a Windows computer Open Windows Internet Explorer and go to http://www.samsungipolis. com and click <LOGIN>. Login with the user ID and password you wrote down earlier. Click < >. sdr-3100HOME sdr-3100 You will be asked to install the active X plug-in. Enter the user ID and password for the DVR. -
Page 8: For Android Phone
: Create a name for the DVR you are adding Model : Select the DVR Host : If you are using Samsung iPOLiS DDNS, enter the DDNS Host Address you SDR-3100 wrote down earlier. (Page 5, 6) It should be www.samsungipolis.com/Product ID HTTP Port : Enter the HTTP Port you wrote down earlier. -
Page 9: For Iphone
❒ For iPhone SAMSUNG TECHWIN C... Utilities Install Visit App Store to Download the Samsung iPOLiS mobile app. Search for Samsung iPOLiS. Launch the iPOLiS mobile app add the DVR. At the Add Device pop-up, tap <OK>. Register the DVR to the iPOLiS mobile. - Page 10 To change the record quality & resolution, select <REC Quality & Resolution>. If you change the setting of the resolution and the remaining rate, the remaining count shows each available resolution. System Record Size Possible FPS CIF 352 × 240 NTSC 2CIF 704 ×...
