Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
EST, Friday.
PH18481

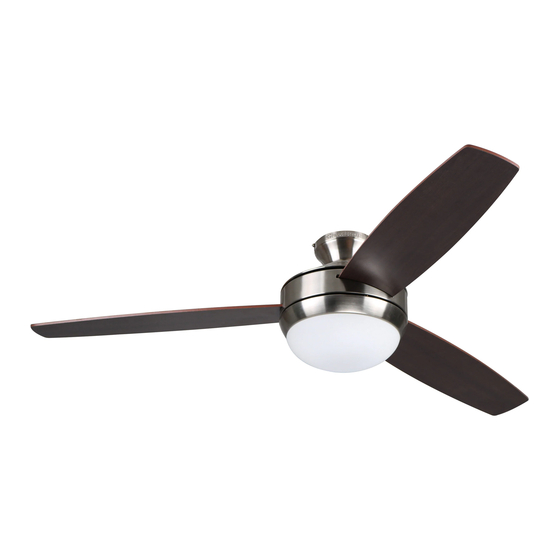

BEACH CREEK
LED CEILING FAN
MODEL #TG52BNK3D1RC
1
ITEM #0883810
0883809
TG52OSB3D1RC
Español p. 20
Advertisement
Table of Contents
Related Manuals for Harbor Breeze TG52BNK3D1RC
Summary of Contents for Harbor Breeze TG52BNK3D1RC
- Page 1 ITEM #0883810 0883809 BEACH CREEK LED CEILING FAN Harbor Breeze® is a registered trademark MODEL #TG52BNK3D1RC of LF, LLC. All Rights Reserved. TG52OSB3D1RC Español p. 20 ATTACH YOUR RECEIPT HERE Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information ......................... 2 Package Contents ........................ 4 Hardware Contents ........................... 5 Preparation ........................... 5 Initial Installation ........................5 Downrod-Style Fan Mounting ....................8 Closemount-Style Fan Mounting ..................10 Wiring ...........................12 Final Installation ........................14 Operating Instructions ......................15 Care and Maintenance ...................... - Page 3 SAFETY INFORMATION WARNING WARNING To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced.
-
Page 4: Package Contents
PACKAGE CONTENTS PART DESCRIPTION PART DESCRIPTION QUANTITY QUANTITY Downrod Glass Shade Canopy Pin (preassembled) Mounting Bracket Clip (preassembled) Motor Housing Balancing Kit Yoke Cover Remote Control Receiver LED Light Kit (preassembled) Remote Pack Canopy Mounting Screw (preassembled) Motor Screw (preassembled) Lock Washer (preassembled) Blade IMPORTANT REMINDER: You must use the... -
Page 5: Hardware Contents
HARDWARE CONTENTS (shown actual size) Fiber Blade Screw Blade Wire Washer Connector Qty. 9 Qty. 9 + 1 extra Qty. 4 + 1 extra PREPARATION Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on foam to avoid damage to finish. - Page 6 INITIAL INSTALLATION 2. Determine mounting method to use. A. Downrod mount (standard or angled ceiling) 19° max. B. Closemount (standard ceiling only) IMPORTANT: If using the angle mount, check to make sure the ceiling angle is not steeper than 19°. *Helpful Hint: Downrod-style mounting is best suited for ceilings 8 ft.
- Page 7 INITIAL INSTALLATION 5. Remove 6 motor screws (H) and 6 lock washers (I) from top of motor housing (D). Remove the yoke plate and top plate from motor housing (D). yoke plate top plate Slide one blade (J) through one of the rectangular openings on center band of motor housing (D).
-
Page 8: Downrod-Style Fan Mounting
INITIAL INSTALLATION Secure mounting bracket (C) to outlet box (not included) using screws, spring washers and flat ANGLE STANDARD washers provided with the outlet box. MOUNT MOUNT *NOTE: It is very important you use the proper hardware when installing the mounting bracket (C) as this will support the fan. - Page 9 DOWNROD-STYLE FAN MOUNTING Insert downrod (A) through canopy (B), and yoke cover (E). Thread wires from motor housing (D) up through downrod (A). Slip downrod (A) into yoke, align holes and re-install pin (L) and clip (M). Tighten set screws and then tighten nuts.
-
Page 10: Closemount-Style Fan Mounting
DOWNROD-STYLE FAN MOUNTING If you cut back the lead wires in Step 4, strip 1/2 in. of insulation from end of each wire -- WHITE, BLACK, GREEN and BLUE. Twist stripped ends of each strand of wire within the insulation with pliers (not included). - Page 11 CLOSEMOUNT-STYLE FAN MOUNTING Remove every other motor screw (H) and lock washer (I) from top of motor housing (D). Pull wires up through hole in the middle of the canopy (B). Align larger holes in canopy (B) with 3 screws in top of motor housing (D). Attach canopy (B) to motor housing (D) using the three motor screws (H) and lock washers (I) previously removed.
-
Page 12: Wiring
WIRING WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use. - Page 13 WIRING Wrap electrical tape (not included) around each individual wire connector (CC) down to the wire. WARNING: Make sure no bare wire or wire strands are visible after making connections. Place GREEN and WHITE connections on opposite side of the outlet box from the BLACK and BLUE (if applicable) connections.
-
Page 14: Final Installation
FINAL INSTALLATION 1. Lift canopy (B) to mounting bracket (C) again, aligning slotted holes in canopy (B) with loosened canopy mounting screws (G) in mounting bracket Closemount Downrod (C). Twist canopy (B) clockwise to lock. Re-insert Option Option the two canopy mounting screws (G) previously removed (Step 4, page 6) and tighten all canopy mounting screws (G) securely. -
Page 15: Operating Instructions
OPERATING INSTRUCTIONS CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. FCC Compliance Notice for Remote Control Modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment. - Page 16 OPERATING INSTRUCTIONS 2. Restore electrical power. Within 30 seconds of restoring electrical power, press and hold the “0” button on the remote control transmitter for 5 seconds or until light on the fan blinks twice. Use the remote control transmitter to test the light and fan functions to confirm the learning process is complete.
-
Page 17: Care And Maintenance
OPERATING INSTRUCTIONS 4a. In warmer weather, setting the reverse switch in the LEFT position will result in downward airflow creating a wind chill effect. 4b. In cooler weather, setting the reverse switch in the RIGHT position will result in upward airflow that can help move stagnant, hot air off the ceiling area. -
Page 18: Troubleshooting
TROUBLESHOOTING WARNING: Before beginning work, shut off the power supply to avoid electrical shock. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Fan does not move. 1. Reverse switch not engaged. 1. Push switch firmly either left or right. 2. Power is off or fuse is blown. 2. -
Page 19: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY The distributor warrants this fan to be free from defects in workmanship and materials present at time of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option, replace the ceiling fan with a comparable or superior model.
