Erbauer EWC1500 Original Instructions Manual

Hide thumbs

Advertisement

Quick Links

EAN: 3663602795292
EWC1500
ORIGINAL INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the EWC1500 and is the answer not in the manual?

Questions and answers

Related Manuals for Erbauer EWC1500

Summary of Contents for Erbauer EWC1500

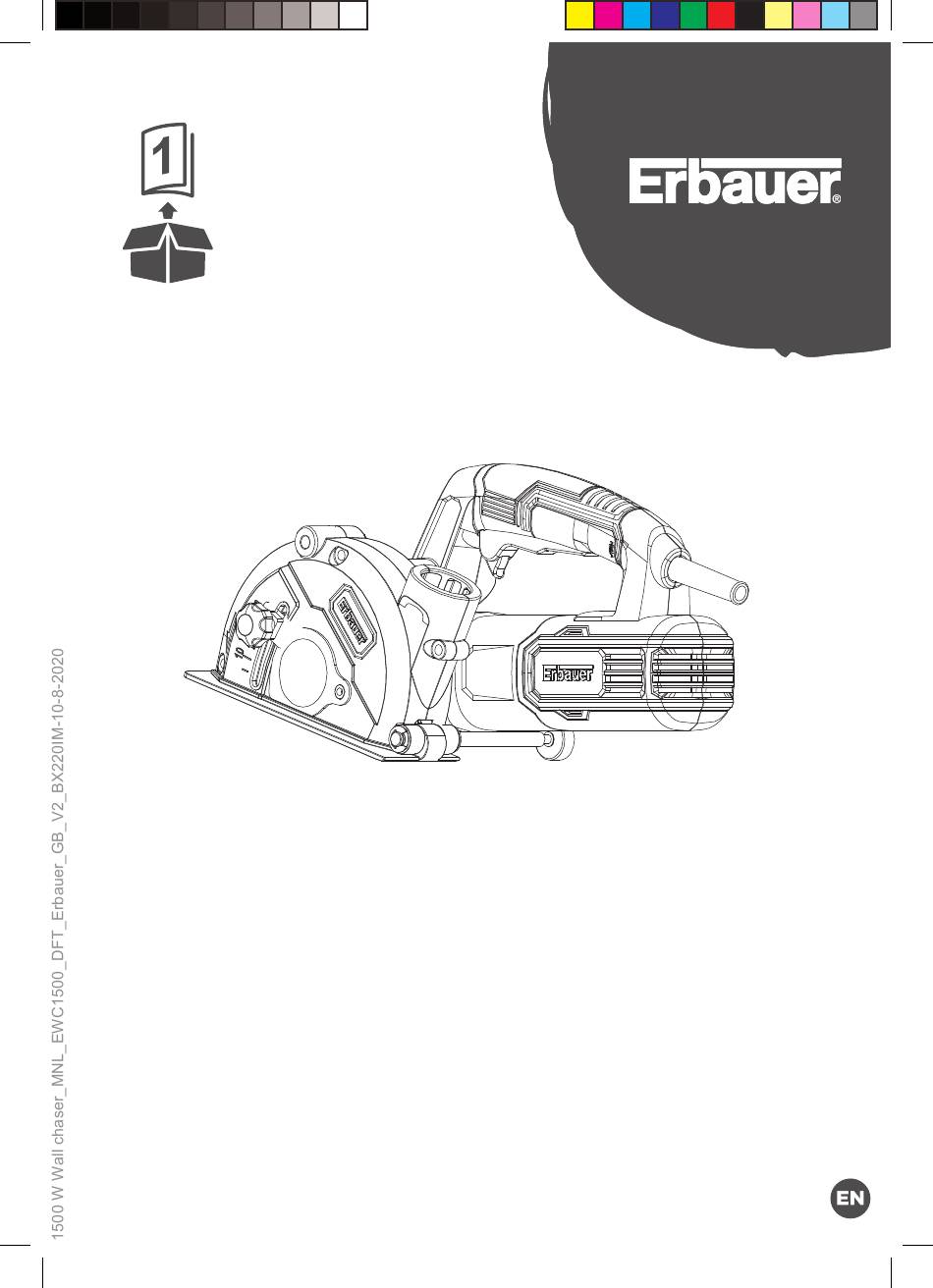

  • Page 1 EAN: 3663602795292 EWC1500 ORIGINAL INSTRUCTIONS...

  • Page 2: Table Of Contents

    Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of conformity 1500 W Wall chaser_MNL_EWC1500_DFT_Erbauer_GB_V20518_20180706.indd 2 7/6/18 4:05 PM...
  • Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. 1500 W Wall chaser_MNL_EWC1500_DFT_Erbauer_GB_V20518_20180706.indd 3 7/6/18 4:05 PM...
  • Page 4 Product description 1500 W Wall chaser_MNL_EWC1500_DFT_Erbauer_GB_V20518_20180706.indd 4 7/6/18 4:05 PM...
  • Page 5 1500 W Wall chaser_MNL_EWC1500_DFT_Erbauer_GB_V20518_20180706.indd 5 7/6/18 4:05 PM...
  • Page 6 1500 W Wall chaser_MNL_EWC1500_DFT_Erbauer_GB_V20518_20180706.indd 6 7/6/18 4:05 PM...

  • Page 7: Safety Instructions

    Safety instructions GENERAL POWER TOOL SAFETY WARNING WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.
  • Page 8 b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
  • Page 9 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times.
  • Page 10 e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
  • Page 11 c) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart. d) Wheels must be used only for recommended applications.
  • Page 12 i) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations.
  • Page 13 q) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock. r) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock. KICKBACK AND RELATED WARNINGS Kickback is a sudden reaction to a pinched or snagged rotating wheel.
  • Page 14 e) Do not attach a saw chain, woodcarving blade, segmented diamond wheel with a peripheral gap greater than 10 mm or toothed saw blade. Such blades create frequent kickback and loss of control. f) Do not “jam” the wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut.
  • Page 15 d) Double check that the accessories and attachments are properly fixed. One minute testing running in no-load condition will be helpful to identify the problems. e) Keep the handles dry to ensure safe control. Grip the product securely with two hands so you have full control at all times.
  • Page 16 • lung cancer • Silicosis • Chronic obstructive pulmonary disease (COPD). And breathing in fine particles of wood dust can lead to the development of Asthma. The risk of lung disease is linked to people who regularly breathe construction dust over a period of time, not on the odd occasion.
  • Page 17 WARNING! Some dust particles created by power sanding, sawing, grinding, drill and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. • Crystalline silica from bricks and cement and other masonry products.
  • Page 18 The declared vibration total value has been measured in accordance with EN 60745-1 and EN 60745-2-22 and may be used for compare one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure. WARNING! The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the...
  • Page 19 WARNING! Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
  • Page 20 2. Ensure that the product is in good condition and well maintained. 3. Use correct attachments for the product and ensure they are in good condition. 4. Keep tight grip on the handles/grip surface. 5. Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).

  • Page 21: Product Description

    WARNING! This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product! Product description Part index...
  • Page 22 Always wear eye protection. Always wear ear protection. Wear a dust mask. Wear protective gloves. Lock / to tighten or secure. Unlock / to loosen. Note / Remark. Caution / Warning. dB(A) Decibel (A-rated) No-load speed To reduce the risk of injury, user must read instruction manual. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation.

  • Page 23: Assembly

    Rating label explanation EWC1500 = Model number E = Erbauer WC = Wall Chaser 1500= Power (Watts)
  • Page 24 WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! Wear protective gloves for this assembly work and always lay the product on a flat and stable surface while assembling. Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to easily assemble the product! Do not connect the product to power supply before it is completely...
  • Page 25 2. Open the base plate (10) and slide the flange cap (5) to the side. (Fig. A step 2 + 3, Fig. B) 3. Press the spindle lock button (11) fully and hold in position (Fig. C). 4. Loosen the locking flange (18) anti-clockwise with the provided spanner (15) (Fig. D) and remove the locking flange (18), inner flange (19) and distance washers (20) from spindle.

  • Page 26: Use

    Auxiliary handle (Fig. J) Always use the auxiliary handle to safely hold and guide the power tool. 1. Align the auxiliary handle (16) with the mounting thread for auxiliary handle (8). 2. Rotate the handle clockwise until it is secured fully. Intended use This product is intended for dry cutting of channels in materials such as concrete, masonry and paving, without using water, with a guide wheel.
  • Page 27 Adjusting cutting width The cutting width can be changed between 8 and 30 mm in 7 steps, depending on how many of the 6 pcs distance washers are placed between the first cutting blade and the inner flange. Follow the same instruction of “Assembly - Cutting discs”. Adjusting channel depth (Fig.

  • Page 28: Care & Maintenance

    5. Plunge the blade into the material slowly and gently, but firmly. Rest the guide wheel (12) and base plate (10) onto the surface to be cut. Then move the tool backwards along the line to be cut. WARNING! Always move the tool backward and DO NOT move it forward for cutting channels! 6.
  • Page 29 Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces. Maintenance Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Before and after each use, check the product and accessories (or attachments) for wear and damage.
  • Page 30 WARNING! Never connect live or neutral wires to the earth terminal of the plug, which is marked with E. Only fit an approved 13 Amp BS 1363 or BS 1363/A plug and the correctly rated fuse. If in doubt, consult a qualified electrician. If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.
  • Page 31 Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling advice. 1500 W Wall chaser_MNL_EWC1500_DFT_Erbauer_GB_V20518_20180706.indd 31 7/6/18 4:05 PM...

  • Page 32: Guarantee

    Guarantee At Erbauer we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. We carry out stringent testing procedures on all our tools and are confident that they can provide regular, sustained daily use during the period covered.

  • Page 33: Declaration Of Conformity

    London W2 6PX United Kingdom Declare that the product 1500W 125mm wall chaser EWC1500 Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following directives: 2006/42/EC The Machinery Directive References to the following harmonized standard were made:...
  • Page 34 Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Declare that the product 1500W 125mm wall chaser EWC1500 Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following directives: 2006/42/EC The Machinery Directive References to the following harmonized standard were made:...
  • Page 36 Manufacturer • Fabricant • Producent • Producator • Fabricante: Kingfisher International Products Limited, 3 Sheldon Square, London, W2 6PX, United Kingdom www.kingfisher.com/products Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Distributor: www.diy.com www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products...
