1 Pr ot o co l a r e a

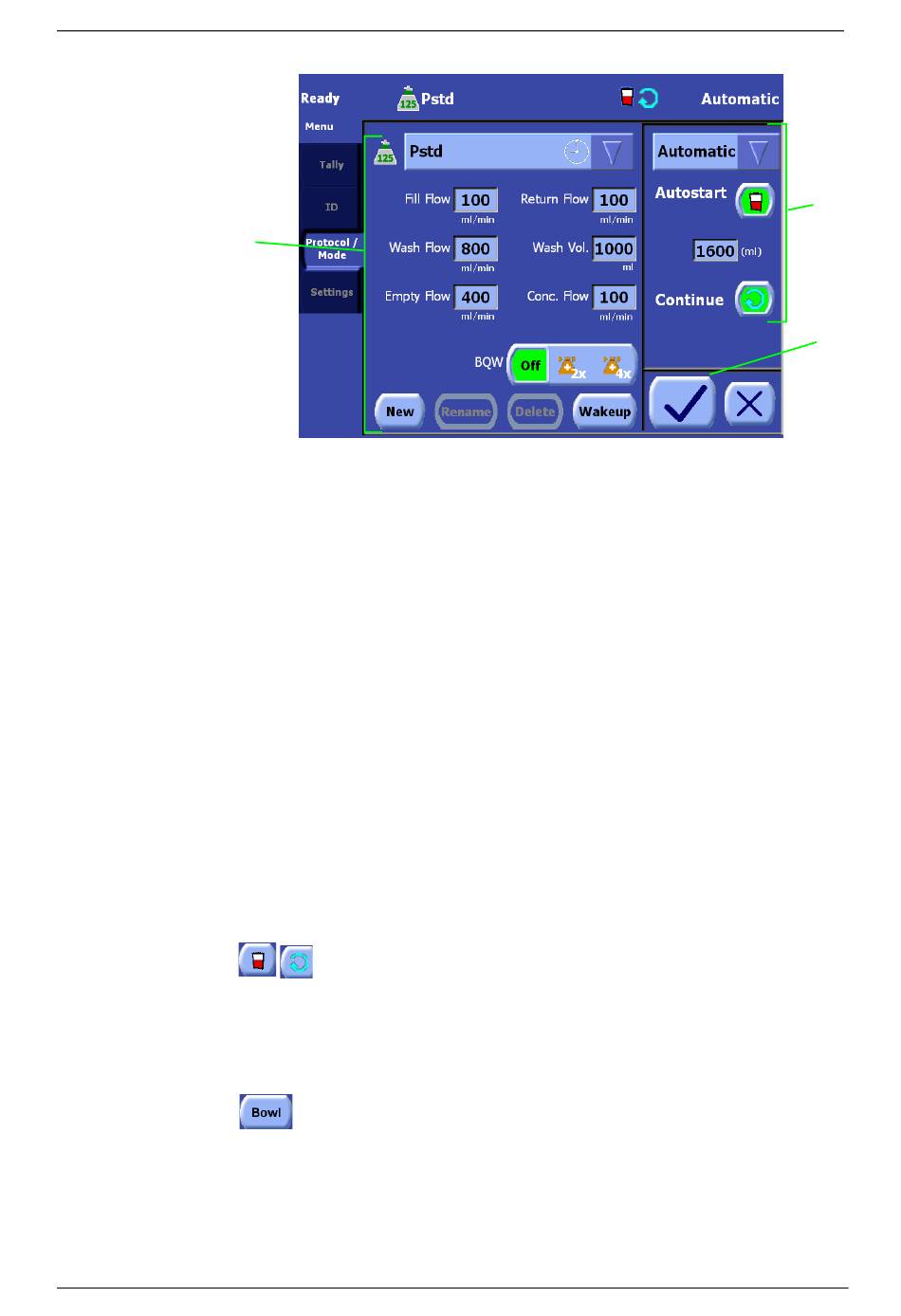

Figure 5-45

The Protocol/Mode tab is divided into two areas: the protocol area on the left which contains the

protocol selection menu, parameters and automations related to the selected protocol, and the mode

area on the right which usually contains the operating mode selection menu and automations related

to the selected mode.

1. Protocol Area

The protocol area contains the controls used to select and modify the active processing protocol. At

the top is the protocol drop-down menu, which is used to select the active protocol. Below that appear

parameters and controls specific to the selected protocol. If the User Protocols option is enabled,

buttons which can be used to create, rename, and delete custom protocols, as well as designate the

wakeup protocol are displayed at the bottom of the screen. Modifying the parameters of protocols and

managing custom protocols are described in

Protocol/Mode Tab" on page 9-7.

The active protocol cannot be changed during a processing cycle.

2. Mode Area

When the Protocol/Mode tab is entered after the pump has been loaded, the mode area contains the

drop-down operating mode selection menu used to select the active operating mode.

Controls for any automated functions (such as Autostart, Continue, RBC Detector, and the

Wash-Empty functions) which are available for the selected mode will appear directly beneath the

drop-down Mode menu. For details on each automation, refer to

Touching the button for the Autostart and Continue automations will toggle its state.

When the automation is on, its button will appear inset and green; when the automation

is OFF, its button will return to the normal raised appearance. When the Autostart and/

or Continue automations are enabled, its icon will appear in the status area of every screen.

When Manual mode is selected, the RBC detector and Wash-Empty automation may be enabled or

disabled by touching the appropriate check box. When the box is checked, the detector/automation is

ON.

When the Protocol/Mode tab is entered from the Setup Screen (before the pump has been

loaded), the mode area contains a single "Bowl" button. Each time the button is touched, it

toggles the bowl size for the processing case (55 ml, 125 ml, 175 ml, or 225 ml). This

allows the operator to:

• view the protocols available for each bowl size (also factory protocols)

• create new user protocols and set their parameters for each bowl size.

• to change the wake up protocol for each bowl size.

2 Mo de a r e a

3 S a ve M od i f i ca t i on s b ut t o n
