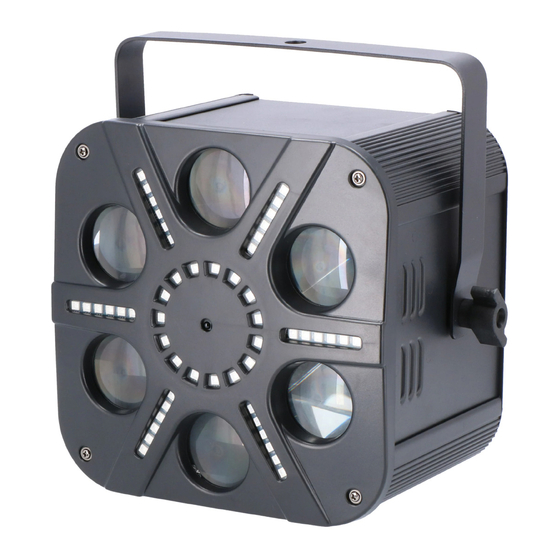

- Page 1 TDC Burst 6 FX LED Light Effect with SMD LED Strips User Manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -...
- Page 2 Introduction Thank you for purchasing the Ayra TDC Burst 6 FX. This versatile lighting effect uses a range of bright light rays to fill any space with coloured projections. This device is fitted with multiple SMD LEDs that combine to produce spectacular effects.
-
Page 3: Safety Instructions
Safety Instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks! WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Symbol Explanation: WEEE: Ensure that this device is disposed of properly. This product falls under the WEEE (Waste Electrical and Electronic Equipment) directive. The requirements of this directive apply to all manufacturers and producers of electronic devices in the EU. Do not throw this product away with regular rubbish.
- Page 6 Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address. Should you wish to send in a product for repairs or for a refund, please contact your dealer for an RMA request (Return Merchandise Authorisation).
- Page 7 Operation Guidelines for this Device LED Light Output SMD Ambient LED Output Infrared transmitter Suspension bracket with tightening knobs LED Display with Menu buttons DMX input via 3-pin XLR DMX output via 3-pin XLR Integrated microphone Safety-eyelet for safety cable Power output via IEC C13 Power input via IEC C14 with fuse compartment The information in this user manual is subject to change at any time without notice.
- Page 8 The device cannot be operated while it is still starting up and displays the ‘AYRA’ logo. Once the device has fully started up, it will automatically jump to the last mode and setting. Operation modes and other settings shown on the display can now be adjusted or changed via the menu buttons.
- Page 9 An explanation of all available functions can be found below: ADDR: With this function, you can determine the DMX start address of the device. Set it channel 001, and the device will respond to DMX channel 1. Set it to channel 003, then the device will respond to DMX channel 3 and so on.
- Page 10 Operation Modes Please find a clear explanation of the differences between all available Operation Modes below and how they are affected by the menu functions listed above. Auto: In Auto Mode, you can select one of the Operation Modes in which the device is not dependent on external factors such as DMX signals, master signals or sound.
- Page 11 216-230 Show 15 231-245 Show 16 246-255 Random show SMD effect speed 000-249 Effect speed, slow to fast 250-255 Sound controlled LED Show Effect 000-005 No function 006-020 Show 1 021-035 Show 2 036-050 Show 3 051-065 Show 4 066-080 Show 5 081-095 Show 6 096-110 Show 7 111-125 Show 8...
- Page 12 081-095 Show 6 096-110 Show 7 111-125 Show 8 126-140 Show 9 141-155 Show 10 156-170 Show 11 171-185 Show 12 186-200 Show 13 201-215 Show 14 216-230 Show 15 231-245 Show 16 246-255 Random show, sound mode SMD Effect Speed 000-209 Effect speed, slow to fast 210-255 Sound-controlled mode LED Dimmer 0-100%...
- Page 13 IR Remote Control This device comes with a infrared remote control included so that functions can also be changed from a distance. Please find an overview of what can be changed via the remote control below: Power on or standby No function Switch between Show and Speed -...
-
Page 14: Installation And Connection Instructions
Upright use When you want to place the TDC Burst 6 FX in an upright position, make sure that the device is placed on a stable surface such as a table, DJ booth or bar. The double suspension bracket is designed so that it can function as a stand. - Page 15 Power Output The TDC Burst 6 FX is fitted with IEC C14 power input and an IEC C13 power output. This makes it possible to link multiple devices with one single power supply, wall socket or power block. The fuse fitted in this device is intended to protect that single device only. The input and output of the power supply are directly wired to each other.
- Page 16 DMX Lighting Troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your retailer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 17 Signal loss or interference in the Close the DMX circuit with a DMX circuit terminator or connect a booster after maximum 32 fixtures. The device is not reacting properly Incorrect DMX channel mode Check that the correct DMX to DMX commands channel mode is set The operation mode can not be The device is in Slave mode...
-
Page 18: Technical Specifications
Technical Specifications Specifications: - Versatile LED light effect with SMD LED strips - Primary Light Source: 5x 8W R/G/B/W/A LEDs - Secondary Light Source: 51x 0.2W RGB SMD LED - Fully metal housing - Diverse operation modes - Automatic mode with diverse programmes (primary and secondary effects can be adjusted independently, adjustable speed) - Sound/Music-Controlled mode with adjustable sensitivity - Master / Slave function...
